Xamarin.Forms - Enable Default Zooming In Webview

Introduction


Xamarin.Forms - Enable Default Zooming In Webview

Xamarin.Forms code runs on multiple platforms, each of which has its own filesystem. This means that reading and writing files are most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute data files with an app.

Prerequisites
  • Visual Studio 2017 or later (Windows or Mac)

Setting up a Xamarin.Forms Project


Start by creating a new Xamarin.Forms project. You will learn more by going through the steps yourself.

Create a new or existing Xamarin forms (.Net standard) Project with Android and iOS Platform. Choose the Mobile App (Xamarin. forms) project under C# and Mobile.

Name your app. You probably want your project and solution to use the same name as your app. Put it on your preferred location for projects and click "Create".

Now, select the blank app and target platforms - Android, iOS, and Windows (UWP).

Subsequently, go to the solution. There, you will get all the files and sources of your project (.NET Standard). Now, select the XAML page and double-click to open the MainPage.Xaml page.

You now have a basic Xamarin.Forms app. Click the Play button to try it out.


Create a Custom Webview


Here I'm going to create a custom webview inherited from webview for custom rendering to enable zooming.

CustomWebView.cs
  1. public class CustomWebView : WebView
  2. {
  3. }
Android Implementation

There are two ways in Android.

Use Platform Specific code

The following code snippets enable the default zooming in webview.

MyWebView.xaml.cs
  1. if (Device.RuntimePlatform == Device.Android)
  2.             {
  3.                 webView.On<Android>().EnableZoomControls(true);
  4.                 webView.On<Android>().DisplayZoomControls(true);
  5.             }
Custom Renderer

Here, create a custom renderer for enabling zooming in Android.

CustomWebViewRenderer.cs
  1. [assembly: ExportRenderer(typeof(CustomWebView), typeof(CustomWebViewRenderer))]
  2. namespace PDFPOC.Droid
  3. {
  4.     public class CustomWebViewRenderer : WebViewRenderer
  5.     {
  6.         public CustomWebViewRenderer(Context context) : base(context)
  7.         {
  8.         }
  9.         protected override void OnElementChanged(ElementChangedEventArgs<WebView> e)
  10.         {
  11.             base.OnElementChanged(e);
  12.
  13.             if (e.NewElement != null)
  14.             {
  15.                 var pdfView = Element as CustomWebView;
  16.                 Control.Settings.AllowUniversalAccessFromFileURLs = true;
  17.                 Control.Settings.SetSupportZoom(true);
  18.                 Control.Settings.BuiltInZoomControls = true;
  19.                 Control.Settings.DisplayZoomControls = true;
  20.             }
  21.         }
  22.     }
  23. }
iOS Implementation

Here, create a custom renderer for enabling the webview default zooming in iOS.

CustomWebViewRenderer.cs
  1. [assembly: ExportRenderer(typeof(CustomWebView), typeof(CustomWebViewRenderer))]
  2.
  3. namespace PDFPOC.iOS
  4. {
  5.     public class CustomWebViewRenderer : WebViewRenderer
  6.     {
  7.         protected override void OnElementChanged(VisualElementChangedEventArgs e)
  8.         {
  9.             base.OnElementChanged(e);
  10.
  11.             if (NativeView != null && e.NewElement != null)
  12.             {
  13.                 var webView = NativeView as UIWebView;
  14.
  15.                 if (webView == null)
  16.                     return;
  17.
  18.                 webView.ScalesPageToFit = true;
  19.             }
  20.         }
  21.     }
  22. }

Consuming the CustomWebview


Here, consume the Custom Webview in your xaml.

Add Namespace
  1. xmlns:controls="clr-namespace:PDFPOC.Controls"
Add your Custom Webview

MyWebPage.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              xmlns:controls="clr-namespace:PDFPOC.Controls"
  7.              mc:Ignorable="d"
  8.              x:Class="PDFPOC.MyWebPage">
  9.     <ContentPage.Content>
  10.         <StackLayout>
  11.             <controls:CustomWebView x:Name="webView" HorizontalOptions="FillAndExpand" VerticalOptions="FillAndExpand"/>
  12.         </StackLayout>
  13.     </ContentPage.Content>
  14. </ContentPage>
MyWebPage.xaml.cs
  1. public partial class MyWebPage : ContentPage
  2.     {
  3.         public MyWebPage()
  4.         {
  5.             InitializeComponent();
  6.             webView.Source = "https://xamarinmonkeys.blogspot.com/";
  7.
  8.         }
  9.
  10.     }
Click the "Play" button to try it out.

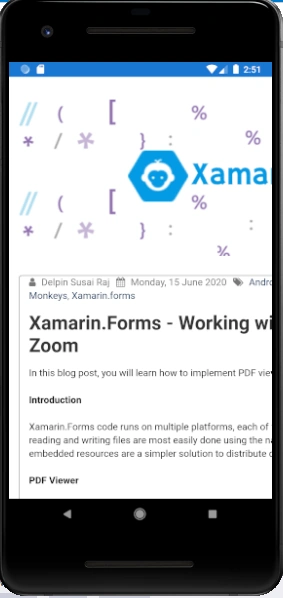

Android

You can test zoom by emulator also use Shift + ctrl + Left click and mouse move

Xamarin.Forms - Enable Default Zooming In Webview

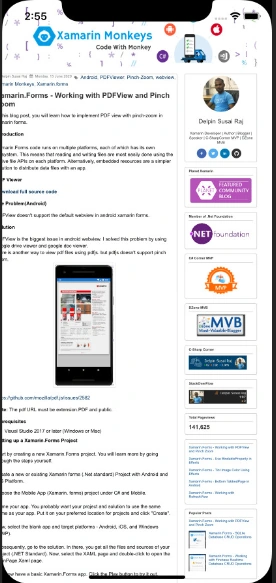

iOS

Simulator also supports Zoom. Use Alt + Left click.

Xamarin.Forms - Enable Default Zooming In Webview

Wow, it's working.

I hope you have understood how to enable webview default zooming in Xamarin.Forms.

Thanks for reading. Please share your comments and feedback. Happy Coding :)
