Xamarin.Forms - Mobile Network Speed Check (Slow Or Fast) In Android

Introduction


Xamarin.Forms code runs on multiple platforms, each of which has its own filesystem. This means that reading and writing files is most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute data files with an app.


Prerequisites
  • Visual Studio 2017 or later (Windows or Mac)

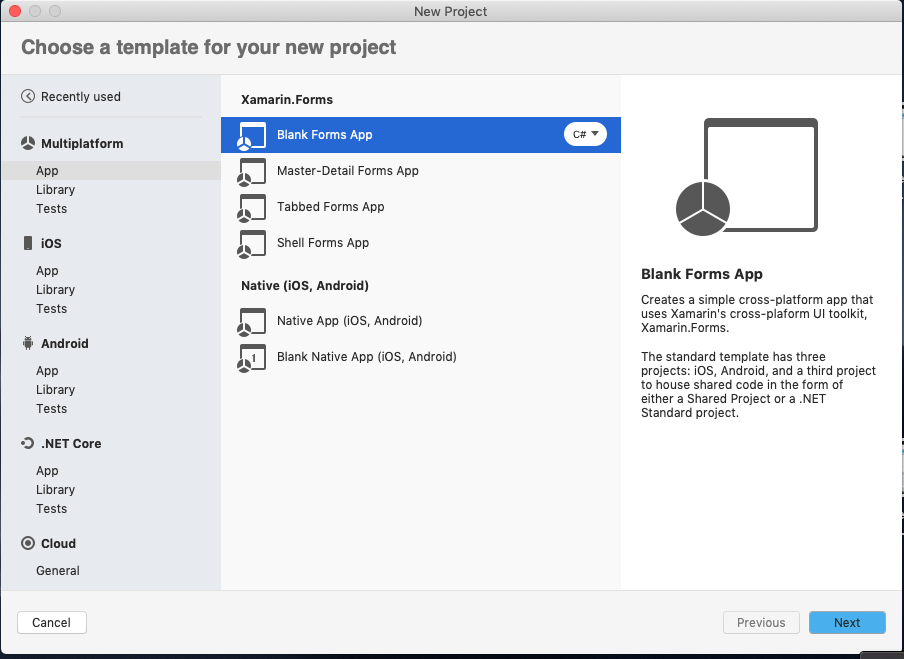

Setting up a Xamarin.Forms Project


Start by creating a new Xamarin.Forms project. You wíll learn more by going through the steps yourself.

Create a new or existing Xamarin forms (.Net standard) Project. with Android and iOS Platforms.


Create a Interface
  1. public interface INetwork
  2.     {
  3.         bool IsConnected();
  4.         bool IsConnectedFast();
  5.     }

Create a NetworkConnectivity


The following code will check the Mobile network connection and check the network status.

NetworkConnectivity.cs
  1. public class NetworkConnectivity
  2.     {
  3.         public static NetworkInfo GetNetworkInfo(Context context)
  4.         {
  5.             ConnectivityManager cm = (ConnectivityManager)context.GetSystemService(Context.ConnectivityService);
  6.             return cm.ActiveNetworkInfo;
  7.         }
  8.
  9.         /**
  10.          * Check if there is any connectivity
  11.          * @param context
  12.          * @return
  13.          */
  14.         public static bool IsConnected(Context context)
  15.         {
  16.             NetworkInfo info = NetworkConnectivity.GetNetworkInfo(context);
  17.             return (info != null && info.IsConnected);
  18.         }
  19.
  20.         /**
  21.          * Check if there is any connectivity to a Wifi network
  22.          * @param context
  23.          // @param type
  24.          * @return
  25.          */
  26.         public static bool IsConnectedWifi(Context context)
  27.         {
  28.             NetworkInfo info = NetworkConnectivity.GetNetworkInfo(context);
  29.             return (info != null && info.IsConnected && info.Type == ConnectivityType.Wifi);
  30.         }
  31.
  32.         /**
  33.          * Check if there is any connectivity to a mobile network
  34.          * @param context
  35.          // @param type
  36.          * @return
  37.          */
  38.         public static bool IsConnectedMobile(Context context)
  39.         {
  40.             NetworkInfo info = NetworkConnectivity.GetNetworkInfo(context);
  41.             return (info != null && info.IsConnected && info.Type == ConnectivityType.Mobile);
  42.         }
  43.
  44.         /**
  45.          * Check if there is fast connectivity
  46.          * @param context
  47.          * @return
  48.          */
  49.         public static bool IsConnectedFast(Context context)
  50.         {
  51.             NetworkInfo info = NetworkConnectivity.GetNetworkInfo(context);
  52.             TelephonyManager tm = TelephonyManager.FromContext(context);
  53.             return (info != null && info.IsConnected && NetworkConnectivity.IsConnectionFast(info.Type, tm.NetworkType));
  54.         }
  55.
  56.         /**
  57.          * Check if the connection is fast
  58.          * @param type
  59.          * @param subType
  60.          * @return
  61.          */
  62.         public static bool IsConnectionFast(ConnectivityType type, NetworkType subType)
  63.         {
  64.             if (type == ConnectivityType.Wifi)
  65.             {
  66.                 return true;
  67.             }
  68.             else if (type == ConnectivityType.Mobile)
  69.             {
  70.                 switch (subType)
  71.                 {
  72.                     //case TelephonyManager.NETWORK_TYPE_1xRTT:
  73.                     case NetworkType.OneXrtt:
  74.                         return false; // ~ 50-100 kbps
  75.                                       //case TelephonyManager.NETWORK_TYPE_CDMA:
  76.                     case NetworkType.Cdma:
  77.                         return false; // ~ 14-64 kbps
  78.                                       //case TelephonyManager.NETWORK_TYPE_EDGE:
  79.                     case NetworkType.Edge:
  80.                         return false; // ~ 50-100 kbps
  81.                                       //case TelephonyManager.NETWORK_TYPE_EVDO_0:
  82.                     case NetworkType.Evdo0:
  83.                         return true; // ~ 400-1000 kbps
  84.                                      //case TelephonyManager.NETWORK_TYPE_EVDO_A:
  85.                     case NetworkType.EvdoA:
  86.                         return true; // ~ 600-1400 kbps
  87.                                      //case TelephonyManager.NETWORK_TYPE_GPRS:
  88.                     case NetworkType.Gprs:
  89.                         return false; // ~ 100 kbps
  90.                                       //case TelephonyManager.NETWORK_TYPE_HSDPA:
  91.                     case NetworkType.Hsdpa:
  92.                         return true; // ~ 2-14 Mbps
  93.                                      //case TelephonyManager.NETWORK_TYPE_HSPA:
  94.                     case NetworkType.Hspa:
  95.                         return true; // ~ 700-1700 kbps
  96.                                      //case TelephonyManager.NETWORK_TYPE_HSUPA:
  97.                     case NetworkType.Hsupa:
  98.                         return true; // ~ 1-23 Mbps
  99.                                      //case TelephonyManager.NETWORK_TYPE_UMTS:
  100.                     case NetworkType.Umts:
  101.                         return true; // ~ 400-7000 kbps
  102.                     /*
  103.                      * Above API level 7, make sure to set android:targetSdkVersion
  104.                      * to appropriate level to use these
  105.                      */
  106.                     //case TelephonyManager.NETWORK_TYPE_EHRPD: // API level 11
  107.                     case NetworkType.Ehrpd:
  108.                         return true; // ~ 1-2 Mbps
  109.                                      //case TelephonyManager.NETWORK_TYPE_EVDO_B: // API level 9
  110.                     case NetworkType.EvdoB:
  111.                         return true; // ~ 5 Mbps
  112.                                      //case TelephonyManager.NETWORK_TYPE_HSPAP: // API level 13
  113.                     case NetworkType.Hspap:
  114.                         return true; // ~ 10-20 Mbps
  115.                                      //case TelephonyManager.NETWORK_TYPE_IDEN: // API level 8
  116.                     case NetworkType.Iden:
  117.                         return false; // ~25 kbps
  118.                                       //case TelephonyManager.NETWORK_TYPE_LTE: // API level 11
  119.                     case NetworkType.Lte:
  120.                         return true; // ~ 10+ Mbps
  121.                                      // Unknown
  122.                                      //case TelephonyManager.NETWORK_TYPE_UNKNOWN:
  123.                     case NetworkType.Unknown:
  124.                         return false;
  125.                     default:
  126.                         return false;
  127.                 }
  128.             }
  129.             else
  130.             {
  131.                 return false;
  132.             }
  133.         }
  134.
  135.         public static bool IsHostReachable(string host)
  136.         {
  137.             if (string.IsNullOrEmpty(host))
  138.                 return false;
  139.
  140.             bool isReachable = true;
  141.
  142.             Thread thread = new Thread(() =>
  143.             {
  144.                 try
  145.                 {
  146.                     //isReachable = InetAddress.GetByName(host).IsReachable(2000);
  147.
  148.                     /*
  149.                      * It's important to note that isReachable tries ICMP ping and then TCP echo (port 7).
  150.                      * These are often closed down on HTTP servers.
  151.                      * So a perfectly good working API with a web server on port 80 will be reported as unreachable
  152.                      * if ICMP and TCP port 7 are filtered out!
  153.                      */
  154.
  155.                     //if (!isReachable){
  156.                     URL url = new URL("http://" + host);
  157.
  158.                     URLConnection connection = url.OpenConnection();
  159.
  160.                     //if(connection.ContentLength != -1){
  161.                     //isReachable = true;
  162.                     if (connection.ContentLength == -1)
  163.                     {
  164.                         isReachable = false;
  165.                     }
  166.                     //}
  167.
  168.                 }
  169.                 catch (UnknownHostException e)
  170.                 {
  171.                     isReachable = false;
  172.                 }
  173.                 catch (IOException e)
  174.                 {
  175.                     isReachable = false;
  176.                 }
  177.
  178.             });
  179.             thread.Start();
  180.
  181.             return isReachable;
  182.         }
  183.
  184.     }
Android Implementation

NetworkHelper.cs

Here, implement the Interface and return the network status.
  1. [assembly: Xamarin.Forms.Dependency(typeof(NetworkHelper))]
  2. namespace NetworkPOC.Droid
  3. {
  4.     public class NetworkHelper : INetwork
  5.     {
  6.         Context context = Android.App.Application.Context;
  7.         public bool IsConnected()
  8.         {
  9.             return NetworkConnectivity.IsConnected(context);
  10.         }
  11.
  12.         public bool IsConnectedFast()
  13.         {
  14.             return NetworkConnectivity.IsConnectedFast(context);
  15.         }
  16.     }
  17. }

Consume the NetworkHelper


Here, you will call the Network helper class and you will get the network speed.

MainPage.Xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:d="http://xamarin.com/schemas/2014/forms/design"
  5.              xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  6.              mc:Ignorable="d"
  7.              x:Class="NetworkPOC.MainPage">
  8.
  9.     <StackLayout HorizontalOptions="Center" VerticalOptions="Start" Margin="0,150,0,0">
  10.         <Label FontSize="Large" Text="Xamarin Monkeys"/>
  11.         <Button Text="Check" Clicked="Button_Clicked"></Button>
  12.     </StackLayout>
  13.
  14. </ContentPage>
Here I show the result in Toast.

MainPage.xaml.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Linq;
  5. using System.Text;
  6. using System.Threading.Tasks;
  7. using Xamarin.Forms;
  8. using Xamarin.Essentials;
  9. using System.Net.Http;
  10. namespace NetworkPOC
  11. {
  12.     // Learn more about making custom code visible in the Xamarin.Forms previewer
  13.     // by visiting https://aka.ms/xamarinforms-previewer
  14.     [DesignTimeVisible(false)]
  15.     public partial class MainPage : ContentPage
  16.     {
  17.         public MainPage()
  18.         {
  19.             InitializeComponent();
  20.         }
  21.
  22.         var current = Connectivity.NetworkAccess;
  23.
  24.             if (current == NetworkAccess.Internet)
  25.             {
  26.
  27.                 bool isConnectionFast = DependencyService.Get<INetwork>().IsConnectedFast();
  28.                 if (isConnectionFast)
  29.                     DependencyService.Get<IToast>().ShowToast("Network Connection is good");
  30.                 else
  31.                     DependencyService.Get<IToast>().ShowToast("Network Connection is slow");
  32.
  33.             }
  34.             else
  35.             {
  36.                 DependencyService.Get<IToast>().ShowToast("No Internet Connection");
  37.             }
  38.     }
  39. }

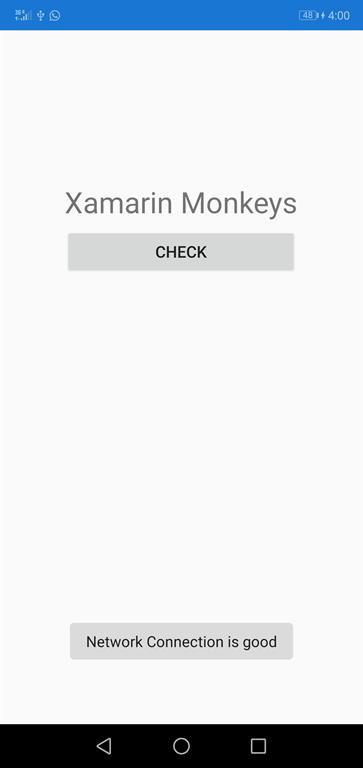

Run


I hope you have understood how to check your mobile network speed (slow or fast) using Android native in Xamarin.Forms.

Thanks for reading. Please share your comments and feedback.

Happy Coding :)
