Xamarin.Forms - Phone Dialer Using Xamarin.Essentials

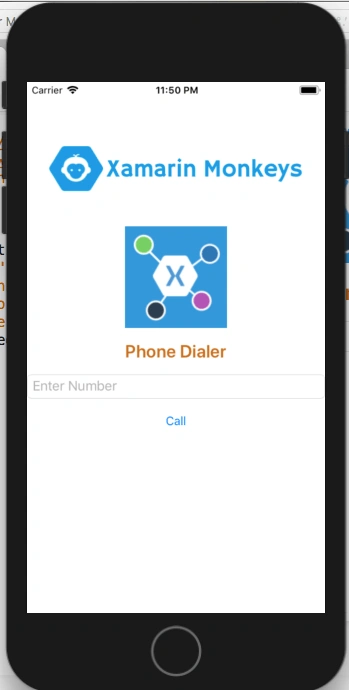

Introduction

Phone Dialer Using Xamarin Essentials

Xamarin.Forms code runs on multiple platforms each of which has its own file system. This means that reading and writing files are most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute the data files with an app.

Xamarin.Essentials

Phone Dialer Using Xamarin Essentials

Xamarin.Essentials plugin provides 20+ cross-platform APIs for mobile application development. Xamarin.Essentials API works with all Xamarin.Forms, Xamarin.Android, Xamarin.iOS, or UWP applications that can be accessed from a shared code. When we are developing Xamarin with Android, iOS, and UWP apps Xamarin.Essentials overcome the problem. Developers can access every native platform API using C#. This plugin provides many APIs so initially, there is no need of more plugins for Xamarin. Xamarin.Essentials plugin impacts your app's minimum size.

Platform Support

Xamarin.Essentials supports platforms and operating systems.

 Platform Version
 Android 4.4 (API 19) or earlier
 iOS 10.0 or higher
 UWP 10.0.16299.0 or earlier

Prerequisites
  • Visual Studio 2017 (Windows or Mac)
Setting up a Xamarin.Forms Project

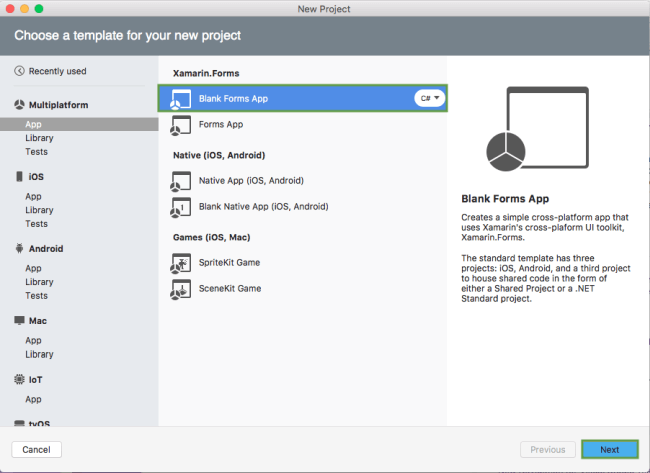

Start by creating a new Xamarin.Forms project. You’ll learn more by going through the steps yourself. Choose the Xamarin.Forms App Project type under Cross-platform/App in the New Project dialog.

Phone Dialer Using Xamarin Essentials

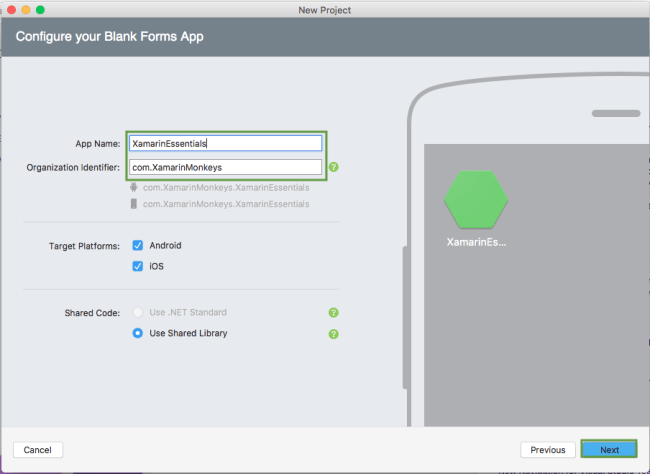

Name your app, select “Use Portable Class Library” for shared code, and target both - Android and iOS.

Phone Dialer Using Xamarin Essentials

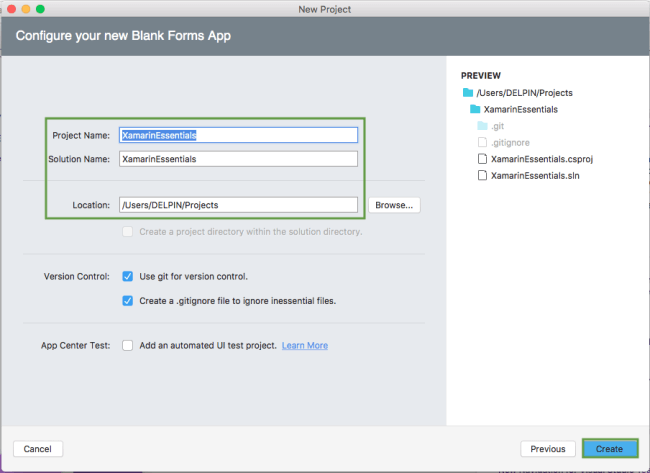

You probably want your project and solution to use the same name as your app. Put it in your preferred folder for projects and click Create.

Phone Dialer Using Xamarin Essentials

You now have a basic Xamarin.Forms app. Click the Play button to try it out.

Phone Dialer Using Xamarin Essentials

Setting up the User Interface

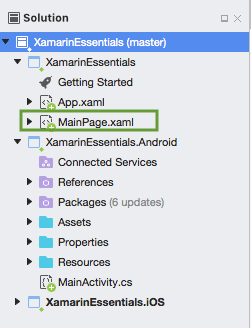

Go to MainPage.Xaml and write the following code.

MainPage.xaml
  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
  3.              xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
  4.              xmlns:local="clr-namespace:XamarinEssentials"
  5.              x:Class="XamarinEssentials.MainPage">
  6.
  7.     <StackLayout>
  8.         <StackLayout HorizontalOptions="Center" VerticalOptions="Start">
  9.          <Image Margin="0,50,0,0" x:Name="imgBanner" Source="banner.png" ></Image>
  10.          <Image Margin="0,0,0,10" x:Name="imgXamarinEssential" Source="xamarinessential.png" ></Image>
  11.          <Label Margin="0,0,0,10" FontAttributes="Bold" FontSize="Large" TextColor="#CA6F1E" HorizontalTextAlignment="Center" Text="Phone Dialer"></Label>
  12.          <Entry x:Name="txtNumber" Placeholder="Enter Number"> </Entry>
  13.          <Button x:Name="btnCall" Text="Call" Clicked="btnCall_Clicked"/>
  14.         </StackLayout>
  15.     </StackLayout>
  16.
  17. </ContentPage>
Add Xamarin Essentials

In this step, add Xamarin.Essentials to your project. You can install Xamarin.Essentials via NuGet, or you can browse the source code on GitHub.

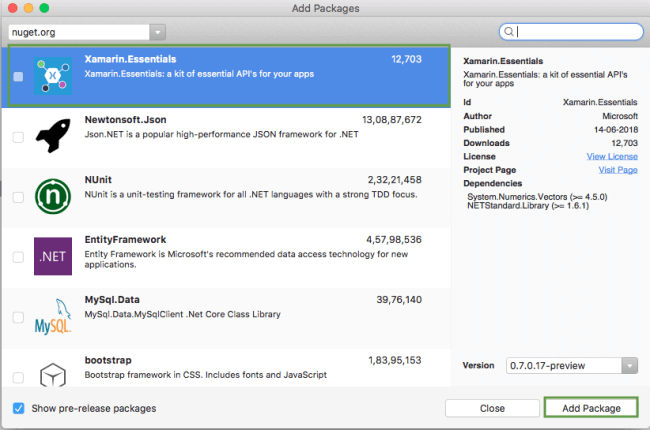

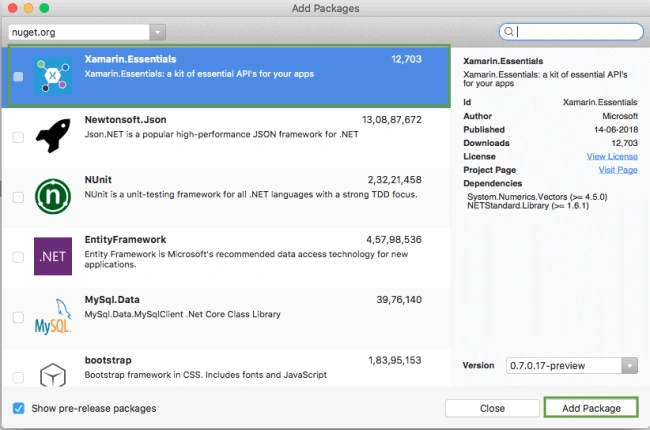

Go to Solution Explorer and select your solution. Right-click and select "Manage NuGet Packages for Solution". Search "Xamarin.Essentials" and add Package. Remember to install it for each project (PCL, Android, iOS, and UWP).

Phone Dialer Using Xamarin Essentials

Xamarin.Essentials requires platform-specific setup Android

The following steps are necessary for Android.
  1. Xamarin.Essentials supports a minimum Android version of 4.4.
  2. The target Android version for compiling must be 8.1, API level 27.
In the Android project's MainActivity that is launched, the Xamarin.Essentials must be initialized in the OnCreate method.

MainActivity.cs
  1. Xamarin.Essentials.Platform.Init(this, bundle);
Xamarin.Essentials must receive any OnRequestPermissionsResult. Write the following code for runtime permission.

MainActivity.cs
  1. public override void OnRequestPermissionsResult(int requestCode, string[] permissions, [GeneratedEnum] Android.Content.PM.Permission[] grantResults)
  2. {
  3.     Xamarin.Essentials.Platform.OnRequestPermissionsResult(requestCode, permissions, grantResults);
  4.
  5.     base.OnRequestPermissionsResult(requestCode, permissions, grantResults);
  6. }
iOS

No additional setup is required.

UWP

No additional setup is required.

Limitation
  • It supports the devices only, not Simulator/Emulator.
In this step, write the following code for making a phone call,

MainPage.xaml.cs
  1. using System.Threading.Tasks;
  2. using Xamarin.Forms;
  3. using Xamarin.Essentials;
  4. namespace XamarinEssentials
  5. {
  6.     public partial class MainPage : ContentPage
  7.     {
  8.         public MainPage()
  9.         {
  10.             InitializeComponent();
  11.         }
  12.         protected override void OnAppearing()
  13.         {
  14.             base.OnAppearing();
  15.         }
  16.
  17.         async void btnCall_Clicked(object sender, System.EventArgs e)
  18.         {
  19.             if(!string.IsNullOrEmpty(txtNumber.Text))
  20.             {
  21.                await Call(txtNumber.Text);
  22.             }
  23.
  24.         }
  25.
  26.         public async Task Call(string number)
  27.         {
  28.             try
  29.             {
  30.                 PhoneDialer.Open(number);
  31.             }
  32.
  33.             catch (FeatureNotSupportedException ex)
  34.             {
  35.                 // Phone Dialer is not supported on this device.
  36.             }
  37.             catch (Exception ex)
  38.             {
  39.                 // Other error has occurred.
  40.             }
  41.         }
  42.     }
  43. }

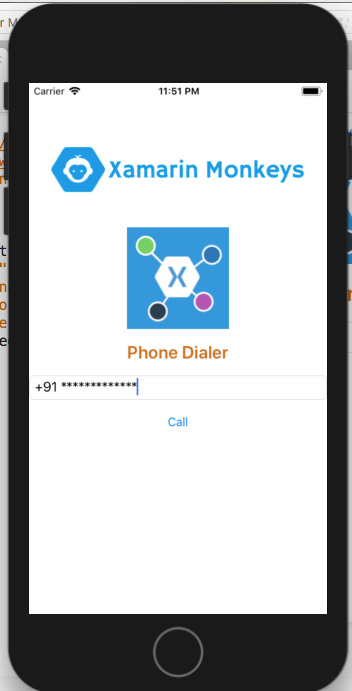

Click the "Play" button to try it out.

Phone Dialer Using Xamarin Essentials

I hope you have understood how to make a phone call using Xamarin.Essentials in Xamarin.Forms.

Thanks for reading. Please share comments and feedback.
