Xamarin.Forms - Support Dark Mode

Introduction

Xamarin.Forms code runs on multiple platforms - each of which has its own filesystem. This means that reading and writing files is most easily done using the native file APIs on each platform. Alternatively, embedded resources are a simpler solution to distribute data files with an app.

Dark Mode

Nowadays iOS and Android apps should support both Dark and Light Theme.

Prerequisites

Visual Studio 2017 or later (Windows or Mac)

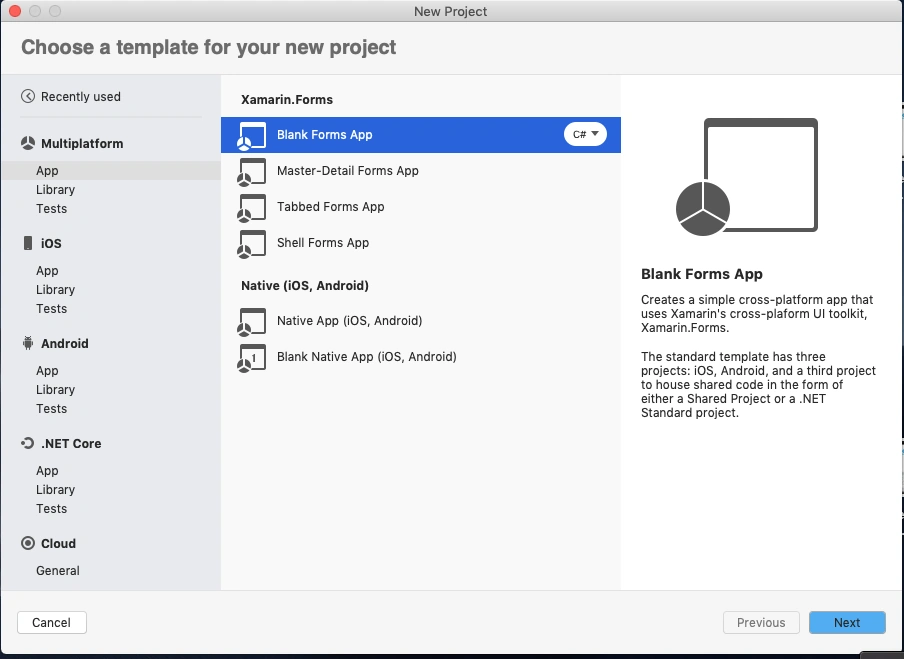

Setting up a Xamarin.Forms Project

Start by creating a new Xamarin.Forms project. You wíll learn more by going through the steps yourself.

Create a new or existing Xamarin forms(.Net standard) Project. With Android and iOS Platform.

Create a Theme

Create a ResourceDictionary for both Light and Dark Theme.

DarkTheme.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ResourceDictionary xmlns="http://xamarin.com/schemas/2014/forms"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
x:Class="DarkModePOC.Common.Styles.DarkTheme">
<Color x:Key="BackgroundColor">#FF000000</Color>
<Color x:Key="FrameColor">#FF1f1f1f</Color>
<Color x:Key="TextPrimaryColor">#B0FFFFFF</Color>
<Color x:Key="TextSecondaryColor">#eFeFeF</Color>
<Style x:Key="Title" TargetType="Label">
<Setter Property="TextColor" Value="{StaticResource TextPrimaryColor}"/>
<Setter Property="FontAttributes" Value="Bold"/>
<Setter Property="FontSize" Value="Large"/>
</Style>
</ResourceDictionary>

LightTheme.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ResourceDictionary xmlns="http://xamarin.com/schemas/2014/forms"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
x:Class="DarkModePOC.Common.Styles.LightTheme">
<Color x:Key="BackgroundColor">#FFe0e0e0</Color>
<Color x:Key="FrameColor">#FFFFFFFF</Color>
<Color x:Key="TextPrimaryColor">#B0000000</Color>
<Color x:Key="TextSecondaryColor">#858585</Color>
<Style x:Key="Title" TargetType="Label">
<Setter Property="TextColor" Value="{StaticResource TextPrimaryColor}"/>
<Setter Property="FontSize" Value="Large"/>
</Style>
</ResourceDictionary>

Set App Theme

In app.xaml you can set the default theme.

App.xaml

<?xml version="1.0" encoding="utf-8" ?>
<Application xmlns="http://xamarin.com/schemas/2014/forms"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
xmlns:d="http://xamarin.com/schemas/2014/forms/design"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
x:Class="DarkModePOC.App">
<Application.Resources>
<ResourceDictionary Source="Common/Styles/LightTheme.xaml" />
</Application.Resources>
</Application>

Now, Create a Enum in App.xaml.cs

public partial class App : Application
{
public static Theme AppTheme { get; set; }
public App()
{
InitializeComponent();
MainPage = new NavigationPage(new MainPage());
}
protected override void OnStart()
{
}
protected override void OnSleep()
{
}
protected override void OnResume()
{
}
public enum Theme
{
Light,
Dark
}
}

Create a Interface

Create a interface for set Theme at runtime.

public interface IAppTheme
{
void SetAppTheme(Theme theme);
}

iOS Implementation

Below code to change the Theme at runtime.

ThemeHelper.cs

[assembly:Dependency(typeof(DarkModePOC.iOS.ThemeHelper))]
namespace DarkModePOC.iOS
{
public class ThemeHelper : IAppTheme
{
public void SetAppTheme(App.Theme theme)
{
SetTheme(theme);
}
void SetTheme(Theme mode)
{
if (mode == Theme.Dark)
{
if (App.AppTheme == Theme.Dark)
return;
App.Current.Resources = new DarkTheme();
}
else
{
if (App.AppTheme != Theme.Dark)
return;
App.Current.Resources = new LightTheme();
}
App.AppTheme = mode;
}
}
}

Android Implementation

Below code to change the Theme at runtime.

ThemeHelper.cs

[assembly: Dependency(typeof(DarkModePOC.Droid.ThemeHelper))]
namespace DarkModePOC.Droid
{
public class ThemeHelper : IAppTheme
{
public void SetAppTheme(App.Theme theme)
{
SetTheme(theme);
}
void SetTheme(Theme mode)
{
if (mode == Theme.Dark)
{
if (App.AppTheme == Theme.Dark)
return;
App.Current.Resources = new DarkTheme();
}
else
{
if (App.AppTheme != Theme.Dark)
return;
App.Current.Resources = new LightTheme();
}
App.AppTheme = mode;
}
}
}

Consuming the Styles

Now, you can use the resource "DynamicResource BackgroundColor" like this.

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
xmlns:d="http://xamarin.com/schemas/2014/forms/design"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
BackgroundColor="{DynamicResource BackgroundColor}"
x:Class="DarkModePOC.MainPage">
<StackLayout HorizontalOptions="Center" VerticalOptions="Center">
<Switch x:Name="themeToggle" IsToggled="False" Toggled="Switch_Toggled"/>
<Label TextColor="{DynamicResource TextSecondaryColor}" Text=" sample"/>
<Button HorizontalOptions="Center" VerticalOptions="Center" TextColor="Red" Text="Next Page" Clicked="Button_Clicked" />
</StackLayout>
</ContentPage>

MainPage.Xaml.cs

private void Switch_Toggled(object sender, ToggledEventArgs e)
{
var toggleStatus = themeToggle.IsToggled;
SetTheme(toggleStatus);
}
void SetTheme(bool status)
{
Theme themeRequested;
if (status)
{
themeRequested = Theme.Dark;
}
else
{
themeRequested = Theme.Light;
}
DependencyService.Get<IAppTheme>().SetAppTheme(themeRequested);
}

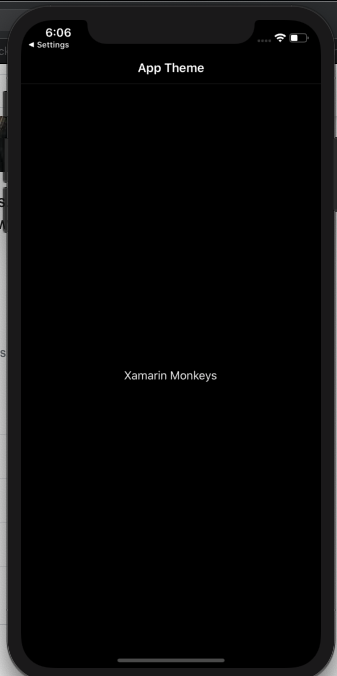

Run - DarkMode

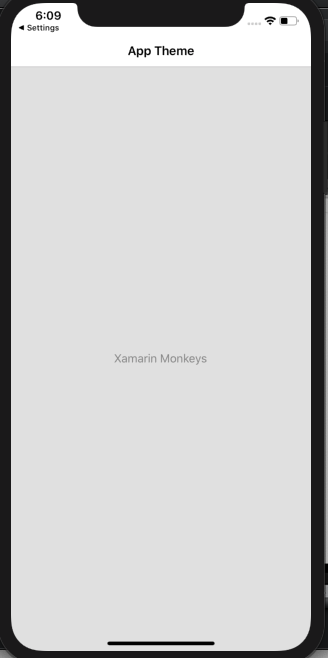

LightMode

I hope you have understood how to support Dark Mode in Xamarin.Forms..

Thanks for reading. Please share your comments and feedback.

Happy Coding :)
