Create and Update XML File

In this blog we will learn how to create and update xml file.

Introduction:

Xml stands for Extensible Markup Language. All the Tags/Elements of Xml are user defined that’s why it is Easy to Create and understand.

Important:

To Create XML we have used following Class and Methods. XmlDocumant class is present under System.Xml namespace.

Classes:

  • XmlDocument
  • XmlDeclaration
  • XmlElement

Methods:

  • CreateElement()
  • AppendChild()

Example:

In Example, we have Created XML having 2 Element Id & Name using Windows Application.

Open Visual Studio and Design a form like this:



Add Following Codes on “Save” Button_click :

  1. namespace Xml_Proc
  2. {
  3.     public partial class Form1 : Form
  4.     {
  5.         public Form1()
  6.         {
  7.             InitializeComponent();
  8.         }
  9.         private XmlElement root;
  10.         public string path = @"C:\Users\kundan\Desktop\Sample.xml";
  11.         XmlDocument doc = new XmlDocument();
  12.
  13.         private void button1_Click(object sender, EventArgs e)
  14.         {
  15.             if (!File.Exists(path))
  16.             {
  17.                 XmlDeclaration declaration = doc.CreateXmlDeclaration("1.0""UTF-8""yes");
  18.                 root = doc.CreateElement("Employee");
  19.                 XmlElement Emp = doc.CreateElement("Emp");
  20.                 XmlElement ID = doc.CreateElement("ID");
  21.                 XmlElement NAME = doc.CreateElement("NAME");
  22.
  23.                 ID.InnerText = textBox1.Text;
  24.                 NAME.InnerText = textBox2.Text;
  25.
  26.                 doc.AppendChild(declaration);
  27.                 doc.AppendChild(root);
  28.                 root.AppendChild(Emp);
  29.                 Emp.AppendChild(ID);
  30.                 Emp.AppendChild(NAME);
  31.
  32.                 doc.Save(path);
  33.
  34.                 MessageBox.Show("XML Created && Data has been Inserted");
  35.             }
  36.             else
  37.             {
  38.                 doc = new XmlDocument();
  39.                 doc.Load(path);
  40.                 root = doc.DocumentElement;
  41.                 XmlElement Emp = doc.CreateElement("Emp");
  42.                 XmlElement ID = doc.CreateElement("ID");
  43.                 XmlElement NAME = doc.CreateElement("NAME");
  44.                 ID.InnerText = textBox1.Text;
  45.                 NAME.InnerText = textBox2.Text;
  46.                 Emp.AppendChild(ID);
  47.                 Emp.AppendChild(NAME);
  48.                 root.AppendChild(Emp);
  49.                 doc.Save(path);
  50.                 MessageBox.Show("XML Updated");
  51.             }
  52.         }
  53.     }
  54. }

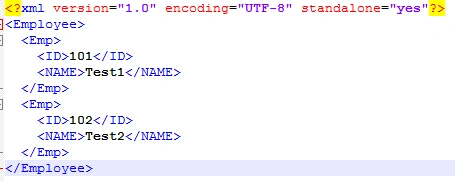

Output will look like:
