How to Add a Traffic Manager Profile to an Existing Web App

An Azure Traffic Manager is a traffic load balancer that distributes traffic optimally to services under different global Azure regions while providing high responsiveness.
A Traffic Manager uses a DNS to direct client requests to the most appropriate service endpoint based on the chosen traffic-routing method.
  • You need to have an active Azure subscription. If you not have you can sign-up for a free account.
  •  An existing Web App hosted in Azure. For creating a Web App you can follow this blog .
  • You must create the same web Apps in three different locations, for example, the US, Canada, and India.
  • Deploy the same content in all these Web Apps.
Task 1: Create a traffic manager profile
  • Navigate to the Azure Portal.
  • Go to the existing Resource group.

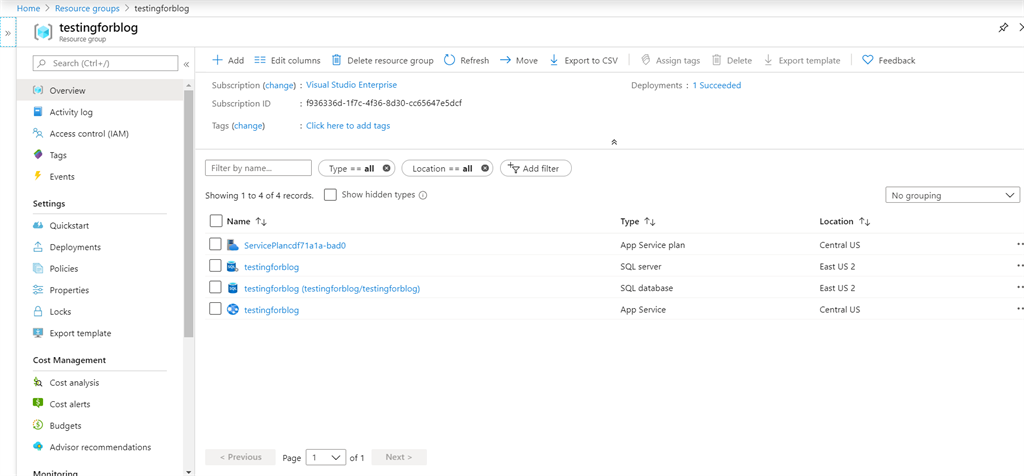

  • Here is the resource group, ‘testingforblog’.

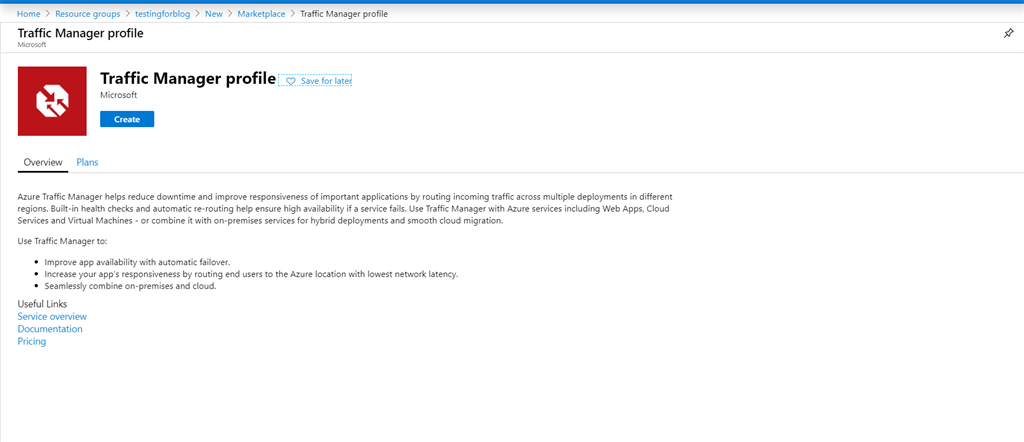

  • Click on Add. Move to the market place and choose the traffic manager profile.
  • Click on Create.

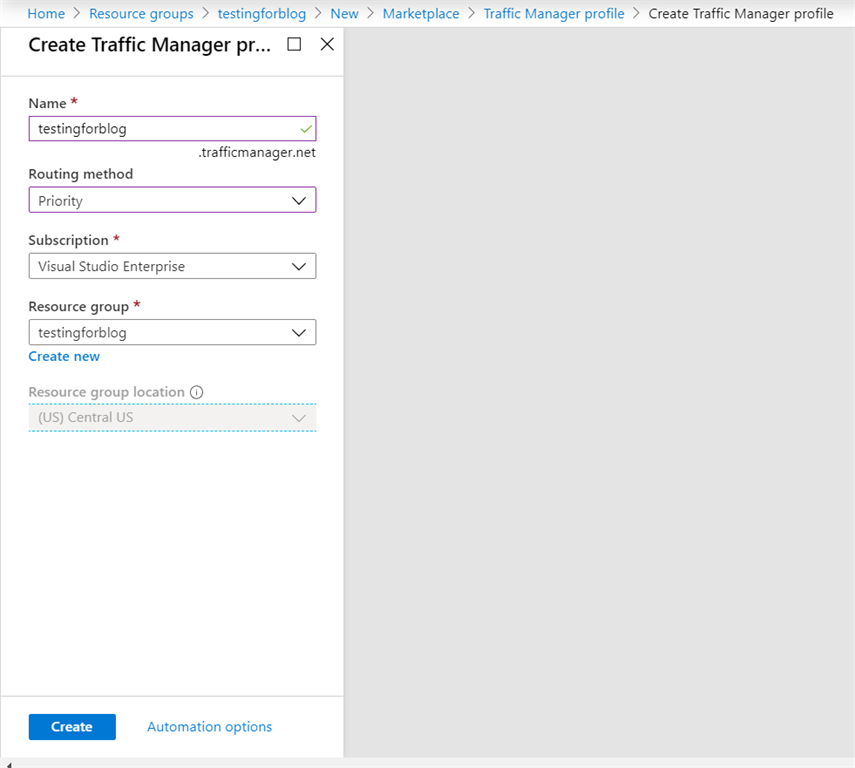

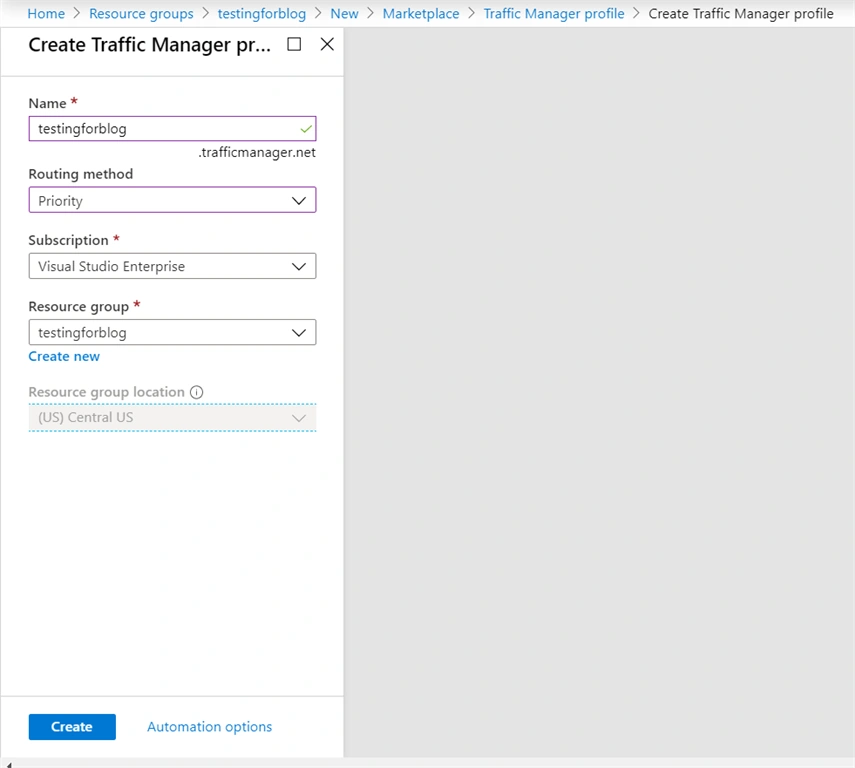

  • Once you click it you will see a panel that contains the following things:
  • Fill in the following information.
  • Select Create.
  • Pin the deployed resource to the Dashboard. So, our 1st task is completed.
Task 2: Add Traffic Manager endpoints

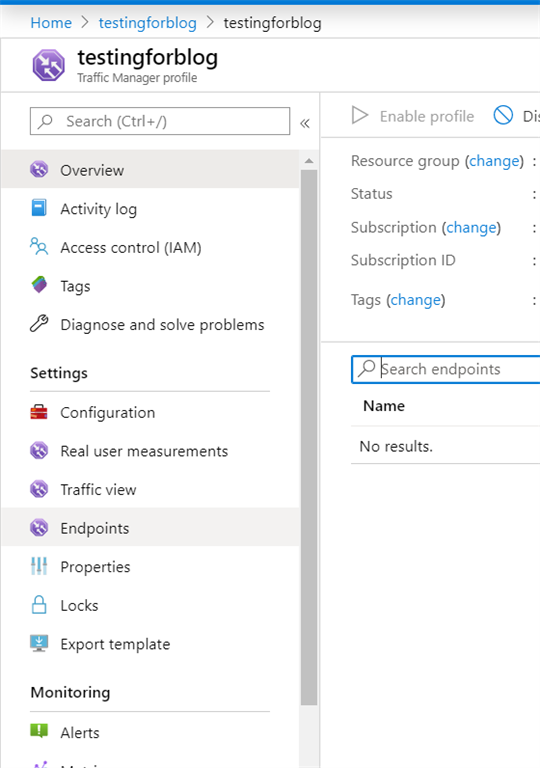

• In the Traffic Manager profile, in the Settings section, select Endpoints, and then select Add.

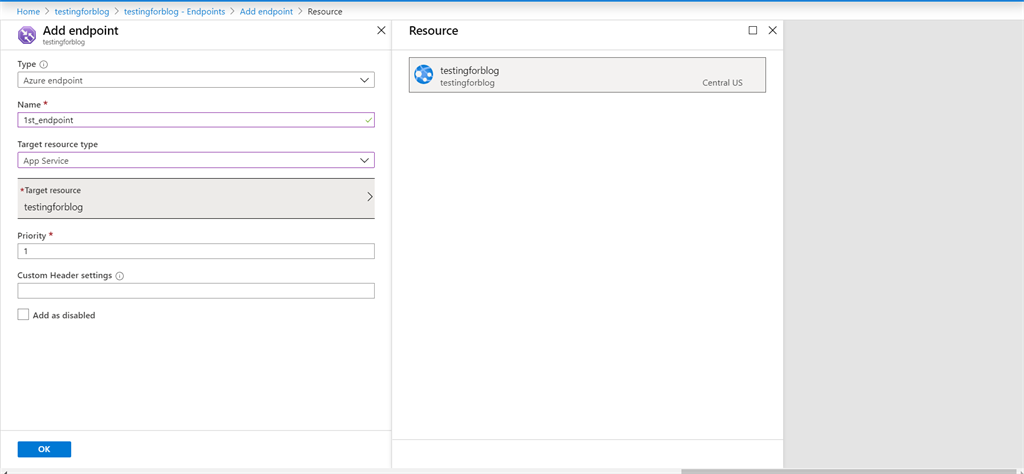

  •  Once you click it you will see a Panel that contains the following things :
  •  You need to fill in the following information:
            a) Type: Select Azure Endpoint.
            b) Name: Enter any name.
            c) Target resource type: Select App Service.
            d) Target resource: Select Choose an app service > Central US.
            e) Priority: Select 1. All traffic goes to this endpoint when it's healthy.
  • Select OK.

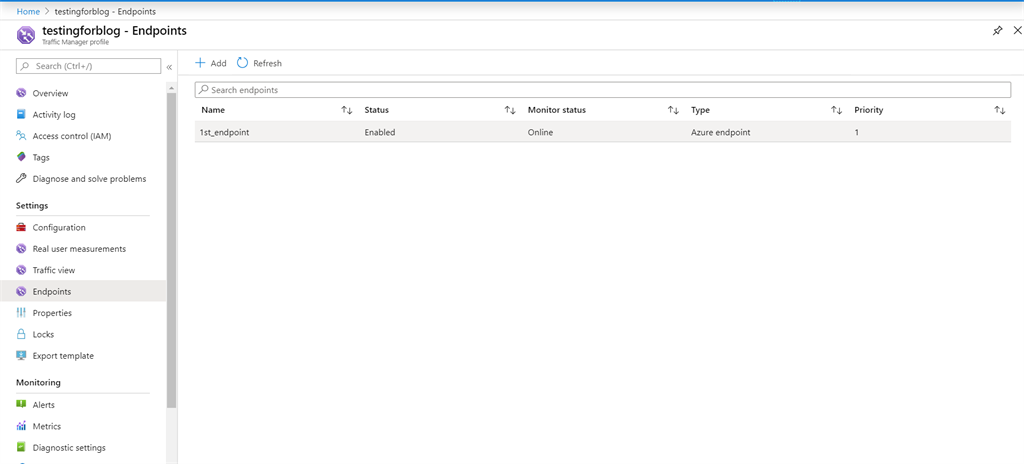

You will see this:
We have completed both of our tasks.
