How To Export HTML Table To Excel Using jQuery Plugin

Introduction

This example shows how to export an HTML table to an Excel sheet using jquery table2excel plugin.

What is table2excel?

table2excel is a jQuery Plugin. it is used to export HTML tables to Excel sheets.

How to Include table2excel jQuery Plugin Within HTML File
  1. <script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/1.8.3/jquery.min.js"></script>
  2. <script src="table2excel.js" type="text/javascript"></script>
table2excel.js Markup

Create one text document within root directory of your project and save that document with name  table2excel.js

After this, write the following code in table2excel.js file and save it.
  1. //table2excel.js
  2. ; (function ($, window, document, undefined) {
  3.     var pluginName = "table2excel",
  4.
  5.     defaults = {
  6.         exclude: ".noExl",
  7.         name: "Table2Excel",
  8.         filename: "table2excel",
  9.         fileext: ".xls",
  10.         exclude_img: true,
  11.         exclude_links: true,
  12.         exclude_inputs: true
  13.     };
  14.
  15.     // The actual plugin constructor
  16.     function Plugin(element, options) {
  17.         this.element = element;
  18.         // jQuery has an extend method which merges the contents of two or
  19.         // more objects, storing the result in the first object. The first object
  20.         // is generally empty as we don't want to alter the default options for
  21.         // future instances of the plugin
  22.         //
  23.         this.settings = $.extend({}, defaults, options);
  24.         this._defaults = defaults;
  25.         this._name = pluginName;
  26.         this.init();
  27.     }
  28.
  29.     Plugin.prototype = {
  30.         init: function () {
  31.             var e = this;
  32.
  33.             var utf8Heading = "<meta http-equiv=\"content-type\" content=\"application/vnd.ms-excel; charset=UTF-8\">";
  34.             e.template = {
  35.                 head: "<html xmlns:o=\"urn:schemas-microsoft-com:office:office\" xmlns:x=\"urn:schemas-microsoft-com:office:excel\" xmlns=\"http://www.w3.org/TR/REC-html40\">" + utf8Heading + "<head><!--[if gte mso 9]><xml><x:ExcelWorkbook><x:ExcelWorksheets>",
  36.                 sheet: {
  37.                     head: "<x:ExcelWorksheet><x:Name>",
  38.                     tail: "</x:Name><x:WorksheetOptions><x:DisplayGridlines/></x:WorksheetOptions></x:ExcelWorksheet>"
  39.                 },
  40.                 mid: "</x:ExcelWorksheets></x:ExcelWorkbook></xml><![endif]--></head><body>",
  41.                 table: {
  42.                     head: "<table>",
  43.                     tail: "</table>"
  44.                 },
  45.                 foot: "</body></html>"
  46.             };
  47.
  48.             e.tableRows = [];
  49.
  50.             // get contents of table except for exclude
  51.             $(e.element).each(function (i, o) {
  52.                 var tempRows = "";
  53.                 $(o).find("tr").not(e.settings.exclude).each(function (i, p) {
  54.
  55.                     tempRows += "<tr>";
  56.                     $(p).find("td,th").not(e.settings.exclude).each(function (i, q) { // p did not exist, I corrected
  57.
  58.                         var rc = {
  59.                             rows: $(this).attr("rowspan"),
  60.                             cols: $(this).attr("colspan"),
  61.                             flag: $(q).find(e.settings.exclude)
  62.                         };
  63.
  64.                         if (rc.flag.length > 0) {
  65.                             tempRows += "<td> </td>"// exclude it!!
  66.                         } else {
  67.                             if (rc.rows & rc.cols) {
  68.                                 tempRows += "<td>" + $(q).html() + "</td>";
  69.                             } else {
  70.                                 tempRows += "<td";
  71.                                 if (rc.rows > 0) {
  72.                                     tempRows += " rowspan=\'" + rc.rows + "\' ";
  73.                                 }
  74.                                 if (rc.cols > 0) {
  75.                                     tempRows += " colspan=\'" + rc.cols + "\' ";
  76.                                 }
  77.                                 tempRows += "/>" + $(q).html() + "</td>";
  78.                             }
  79.                         }
  80.                     });
  81.
  82.                     tempRows += "</tr>";
  83.                     console.log(tempRows);
  84.
  85.                 });
  86.                 // exclude img tags
  87.                 if (e.settings.exclude_img) {
  88.                     tempRows = exclude_img(tempRows);
  89.                 }
  90.
  91.                 // exclude link tags
  92.                 if (e.settings.exclude_links) {
  93.                     tempRows = exclude_links(tempRows);
  94.                 }
  95.
  96.                 // exclude input tags
  97.                 if (e.settings.exclude_inputs) {
  98.                     tempRows = exclude_inputs(tempRows);
  99.                 }
  100.                 e.tableRows.push(tempRows);
  101.             });
  102.
  103.             e.tableToExcel(e.tableRows, e.settings.name, e.settings.sheetName);
  104.         },
  105.
  106.         tableToExcel: function (table, name, sheetName) {
  107.             var e = this, fullTemplate = "", i, link, a;
  108.
  109.             e.format = function (s, c) {
  110.                 return s.replace(/{(\w+)}/g, function (m, p) {
  111.                     return c[p];
  112.                 });
  113.             };
  114.
  115.             sheetName = typeof sheetName === "undefined" ? "Sheet" : sheetName;
  116.
  117.             e.ctx = {
  118.                 worksheet: name || "Worksheet",
  119.                 table: table,
  120.                 sheetName: sheetName
  121.             };
  122.
  123.             fullTemplate = e.template.head;
  124.
  125.             if ($.isArray(table)) {
  126.                 for (i in table) {
  127.                     //fullTemplate += e.template.sheet.head + "{worksheet" + i + "}" + e.template.sheet.tail;
  128.                     fullTemplate += e.template.sheet.head + sheetName + i + e.template.sheet.tail;
  129.                 }
  130.             }
  131.
  132.             fullTemplate += e.template.mid;
  133.
  134.             if ($.isArray(table)) {
  135.                 for (i in table) {
  136.                     fullTemplate += e.template.table.head + "{table" + i + "}" + e.template.table.tail;
  137.                 }
  138.             }
  139.
  140.             fullTemplate += e.template.foot;
  141.
  142.             for (i in table) {
  143.                 e.ctx["table" + i] = table[i];
  144.             }
  145.             delete e.ctx.table;
  146.
  147.             var isIE = /*@cc_on!@*/false || !!document.documentMode; // this works with IE10 and IE11 both :)
  148.             //if (typeof msie !== "undefined" && msie > 0 || !!navigator.userAgent.match(/Trident.*rv\:11\./))      // this works ONLY with IE 11!!!
  149.             if (isIE) {
  150.                 if (typeof Blob !== "undefined") {
  151.                     //use blobs if we can
  152.                     fullTemplate = e.format(fullTemplate, e.ctx); // with this, works with IE
  153.                     fullTemplate = [fullTemplate];
  154.                     //convert to array
  155.                     var blob1 = new Blob(fullTemplate, { type: "text/html" });
  156.                     window.navigator.msSaveBlob(blob1, getFileName(e.settings));
  157.                 } else {
  158.                     //otherwise use the iframe and save
  159.                     //requires a blank iframe on page called txtArea1
  160.                     txtArea1.document.open("text/html""replace");
  161.                     txtArea1.document.write(e.format(fullTemplate, e.ctx));
  162.                     txtArea1.document.close();
  163.                     txtArea1.focus();
  164.                     sa = txtArea1.document.execCommand("SaveAs"true, getFileName(e.settings));
  165.                 }
  166.
  167.             } else {
  168.                 var blob = new Blob([e.format(fullTemplate, e.ctx)], { type: "application/vnd.ms-excel" });
  169.                 window.URL = window.URL || window.webkitURL;
  170.                 link = window.URL.createObjectURL(blob);
  171.                 a = document.createElement("a");
  172.                 a.download = getFileName(e.settings);
  173.                 a.href = link;
  174.
  175.                 document.body.appendChild(a);
  176.
  177.                 a.click();
  178.
  179.                 document.body.removeChild(a);
  180.             }
  181.
  182.             return true;
  183.         }
  184.     };
  185.
  186.     function getFileName(settings) {
  187.         return (settings.filename ? settings.filename : "table2excel");
  188.     }
  189.
  190.     // Removes all img tags
  191.     function exclude_img(string) {
  192.         var _patt = /(\s+alt\s*=\s*"([^"]*)"|\s+alt\s*=\s*'([^']*)')/i;
  193.         return string.replace(/<img[^>]*>/gi, function myFunction(x) {
  194.             var res = _patt.exec(x);
  195.             if (res !== null && res.length >= 2) {
  196.                 return res[2];
  197.             } else {
  198.                 return "";
  199.             }
  200.         });
  201.     }
  202.
  203.     // Removes all link tags
  204.     function exclude_links(string) {
  205.         return string.replace(/<a[^>]*>|<\/a>/gi, "");
  206.     }
  207.
  208.     // Removes input params
  209.     function exclude_inputs(string) {
  210.         var _patt = /(\s+value\s*=\s*"([^"]*)"|\s+value\s*=\s*'([^']*)')/i;
  211.         return string.replace(/<input[^>]*>|<\/input>/gi, function myFunction(x) {
  212.             var res = _patt.exec(x);
  213.             if (res !== null && res.length >= 2) {
  214.                 return res[2];
  215.             } else {
  216.                 return "";
  217.             }
  218.         });
  219.     }
  220.
  221.     $.fn[pluginName] = function (options) {
  222.         var e = this;
  223.         e.each(function () {
  224.             if (!$.data(e, "plugin_" + pluginName)) {
  225.                 $.data(e, "plugin_" + pluginName, new Plugin(this, options));
  226.             }
  227.         });
  228.
  229.         // chain jQuery functions
  230.         return e;
  231.     };
  232.
  233. })(jQuery, window, document);
HTML Markup

Now, create another text document within the root directory of your project and save it with the name of "Example.html".

After this, write the following code within your created Example.html file and save it.
  1. <html xmlns="http://www.w3.org/1999/xhtml">
  2. <head>
  3.     <title></title>
  4.      <style type="text/css">
  5.         body
  6.         {
  7.             font-family: Arial;
  8.             font-size: 10pt;
  9.         }
  10.         table
  11.         {
  12.             border: 1px solid #ccc;
  13.             border-collapse: collapse;
  14.         }
  15.         table th
  16.         {
  17.             background-color: #ff7f00;
  18.             color: #fff;
  19.             font-weight: bold;
  20.         }
  21.         table th, table td
  22.         {
  23.             padding: 5px;
  24.             border: 1px solid #ccc;
  25.         }
  26.     </style>
  27. </head>
  28. <body>
  29.     <table id="tblEmployee" cellspacing="0" cellpadding="0">
  30.         <tr>
  31.             <th>Employee Id</th>
  32.             <th>Employee Name</th>
  33.             <th>Department</th>
  34.         </tr>
  35.         <tr>
  36.             <td>1</td>
  37.             <td>Nikunj Satasiya</td>
  38.             <td>Asp.Net</td>
  39.         </tr>
  40.         <tr>
  41.             <td>2</td>
  42.             <td>Hiren Dobariya</td>
  43.             <td>PHP</td>
  44.         </tr>
  45.         <tr>
  46.             <td>3</td>
  47.             <td>Vivek Ghadiya</td>
  48.             <td>Android</td>
  49.         </tr>
  50.         <tr>
  51.             <td>4</td>
  52.             <td>Pratik Pansuriya</td>
  53.             <td>SEO</td>
  54.         </tr>
  55.     </table>
  56.     <br />
  57.     <input type="button" id="btnExporttoExcel" value="Export To Excel" />
  58.     <script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/2.2.4/jquery.min.js"></script>
  59.     <script src="table2excel.js" type="text/javascript"></script>
  60.     <script type="text/javascript">
  61.         $(function () {
  62.             $("#btnExporttoExcel").click(function () {
  63.                 $("#tblEmployee").table2excel({
  64.                     filename: "Your_File_Name.xls"
  65.                 });
  66.             });
  67.         });
  68.     </script>
  69. </body>
  70. </html>
NOTE

At the end of table tag </table>, you need to add the following script.
  1. $("#yourHtmTable").table2excel({
  2.     exclude: ".excludeThisClass",
  3.     name: "Worksheet Name",
  4.     filename: "SomeFile" //do not include extension
  5. });
Screenshots/Output

Output

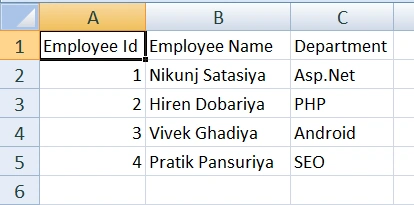

The screen after exporting HTML table to Excel sheet.

Output

Summary

When the Export to Excel button is clicked, the jQuery table2excel plugin is applied to the created HTML table. The jQuery table2excel plugin accepts the file name as a parameter which sets the name of the Excel file.
X

Build smarter apps with Machine Learning, Bots, Cognitive Services - Start free.

Start Learning Now
