Save Chart Image To Server In ASP.NET

Let’s start this blog.

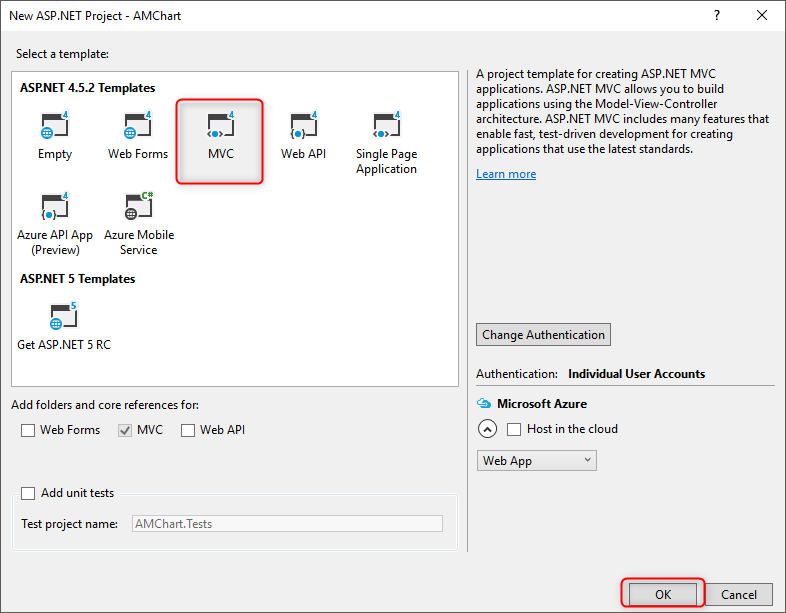

First, we create an MVC project.

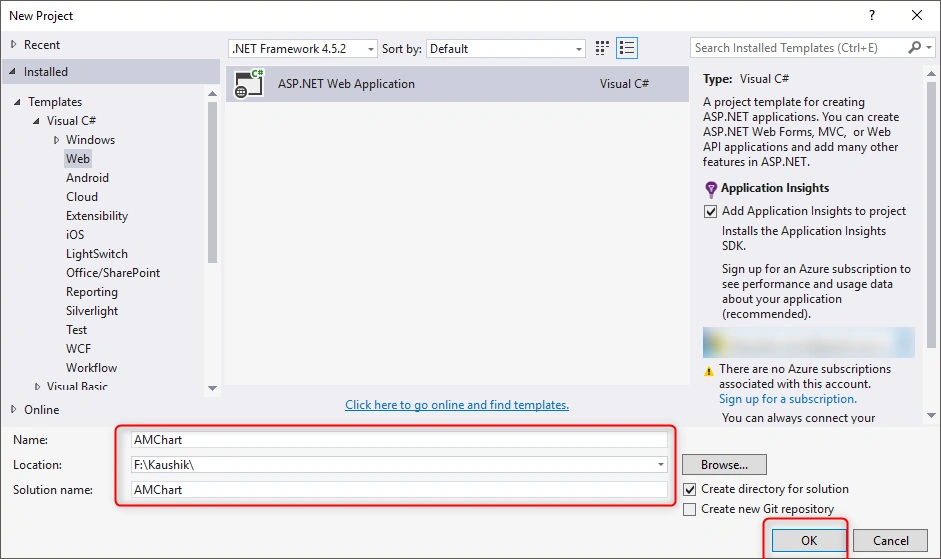

Go to File-> New-> Project and select “ASP.NET Web Application”.


Enter the Project name and give a path in Location, after it clicks on ok button.


Add below URLs in the view page
  1. <script src="https://www.amcharts.com/lib/3/amcharts.js"></script>
  2. <script src="https://www.amcharts.com/lib/3/pie.js"></script>
  3. <script src="https://www.amcharts.com/lib/3/plugins/export/export.min.js"></script>
  4. <link rel="stylesheet" href="https://www.amcharts.com/lib/3/plugins/export/export.css" type="text/css" media="all" />
  5. <script src="https://www.amcharts.com/lib/3/themes/light.js"></script>
Copy below code into view where you want to display the chart.
  1. @{
  2.     ViewBag.Title = "Home Page";
  3. }

  5.
  6. <style>
  7.
  8. #MyChart{
  9.   width: 100%;
  10.   height: 500px;
  11. }
  12.
  13. #exportChart {
  14.   font-size: 18px;
  15.   padding: 5px 10px;
  16.   position: absolute;
  17.   top: 30px;
  18.   right: 30px;
  19.   z-index: 10;
  20. }
  21. </style>
  22.
  23. <div id="MyChart" style="width:50%"></div>
  24. <br />
  25.
  26. <input type="button" id="exportChart" value="Export Chart" onclick="exportChart();" />
  27.
  28.
  29. <script>
  30.     var chart = AmCharts.makeChart("MyChart", {
  31.         "type": "pie",
  32.         "theme": "light",
  33.         "dataProvider": [{
  34.             "City": "Surat",
  35.             "litres": 501.9
  36.         }, {
  37.             "City": "Karnavati",
  38.             "litres": 301.9
  39.         }, {
  40.             "City": "Navsari",
  41.             "litres": 201.1
  42.         }, {
  43.             "City": "Junagadh",
  44.             "litres": 165.8
  45.         }, {
  46.             "City": "Amreli",
  47.             "litres": 139.9
  48.         }, {
  49.             "City": "Bhavnagar",
  50.             "litres": 128.3
  51.         }, {
  52.             "City": "Gondal",
  53.             "litres": 99
  54.         }, {
  55.             "City": "Rajkot",
  56.             "litres": 60
  57.         }, {
  58.             "City": "Pune",
  59.             "litres": 50
  60.         }],
  61.         "valueField": "litres",
  62.         "titleField": "City",
  63.         "balloon": {
  64.             "fixedPosition": true
  65.         },
  66.         "export": {
  67.             "enabled": true,
  68.             "menu": []
  69.         }
  70.     });
  71.
  72.     function exportChart() {
  73.         chart["export"].capture({}, function () {
  74.
  75.             this.toPNG({}, function (base64) {
  76.
  77.                 $.ajax({
  78.                     url: '/Home/SaveImage',
  79.                     type: 'POST',
  80.                     data: { base64: base64},
  81.                     success: function (data) {
  82.                         if (data != "") {
  83.                             alert("file saved.")
  84.                         }
  85.                         else {
  86.                             alert("file not saved.")
  87.                         }
  88.                     },
  89.                     error: function (r, s, e) {
  90.                         alert("Unexpected error:" + e);
  91.                         console.log(r);
  92.                         console.log(s);
  93.                         console.log(e);
  94.                     }
  95.                 });
  96.
  97.             });
  98.         });
  99.     }
  100.
  101.
  102. </script>
Now copy and paste below function into your Home controller.
  1. [HttpPost]
  2.        public JsonResult SaveImage(string base64)
  3.        {
  4.            string filePath = "";
  5.
  6.            string FileName = string.Format("{0:yyyy-MM-dd_hh-mm-ss-tt}", DateTime.Now);
  7.            string DomainName = ConfigurationSettings.AppSettings["DomainName"];
  8.
  9.            try
  10.            {
  11.                var imageParts = base64.Split(',').ToList<string>();
  12.
  13.                byte[] Image = Convert.FromBase64String(imageParts[1]);
  14.
  15.                filePath = System.Web.Hosting.HostingEnvironment.MapPath("~/Image/" + FileName + ".png");
  16.                System.IO.File.WriteAllBytes(filePath, Image);
  17.                filePath = DomainName + "Image/" + FileName + ".png";
  18.
  19.            }
  20.            catch (Exception ex)
  21.            {
  22.                filePath = "";
  23.            }
  24.
  25.            return Json(filePath, JsonRequestBehavior.AllowGet);
  26.        }

In this SaveImage() function, we get the base64 as a string from parameter and convert it to png using convert the base64 to bytes.

For getting the domain name in this article we use the "ConfigurationSettings.AppSettings["DomainName"]"

So, you need to add the "DomainName" key into the web.config like below code.
  1. <add key="DomainName" value="http://localhost:42213//" />
Right now I'm running my local project so I give the value of localhost but you can add your live domain name and don't forget to give permission to the folder for read and write for save image.

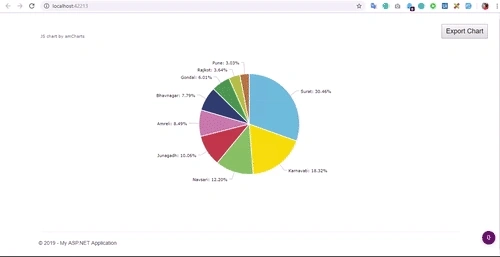

Output
