Create Task Scheduler

Below is a simple, step-by-step guide to create a Task Scheduler in C# (.NET).
This explains what to create, which files are needed, and how it works.

Decide the type of Task Scheduler

There are two common approaches:

Option A – Windows Task Scheduler (Recommended)

Runs even after reboot
No need to keep app running
Best for production

Option B – Custom Scheduler (Timer / BackgroundService)

Runs only while app is running
Good for web apps or services

I’ll explain both, starting with the recommended one.

OPTION A: Windows Task Scheduler (Step-by-Step)

Step 1: Create a Console Application

Create a Console App (.NET Framework or .NET Core).

Files created:

TaskJob.exe
Program.cs

Step 2: Write the Task Logic

This is the code that runs on schedule.

Program.cs

class Program
{
    static void Main()
    {
        // Your scheduled work
        File.AppendAllText(
            @"C:\Logs\TaskLog.txt",
            DateTime.Now + " - Task executed\n"
        );
    }
}

Build the project ? generates TaskJob.exe

Step 3: Create Task in Windows Task Scheduler

1. Open Task Scheduler

2. Click Create Basic Task

3. Name ? MyDailyJob

4. Trigger ? Daily / Hourly / On startup

5. Action ? Start a program

6. Browse ? select TaskJob.exe

7. Start in ? folder path of EXE

8. Finish

Task will now run automatically.

Files Required (Option A)

Program.cs
TaskJob.exe
(optional) appsettings.json

OPTION B: Custom Task Scheduler in C# (Timer Based)

Step 1: Create Console / Web App

Files:

Program.cs
Scheduler.cs
Job.cs

Step 2: Create Job File

Job.cs

public class Job
{
    public static void Run()
    {
        Console.WriteLine("Task running at " + DateTime.Now);
    }
}

Step 3: Create Scheduler

Scheduler.cs

using System.Timers;

public class Scheduler
{
    private static Timer _timer;

    public static void Start()
    {
        _timer = new Timer(60000); // 1 minute
        _timer.Elapsed += (s, e) => Job.Run();
        _timer.Start();
    }
}

Step 4: Start Scheduler

Program.cs

class Program
{
    static void Main()
    {
        Scheduler.Start();
        Console.ReadLine(); // keep app alive
    }
}

Files Required (Option B)

Program.cs
Scheduler.cs
Job.cs

App must be running for tasks to execute.

OPTION C: ASP.NET Core (Background Service)

Used in Web APIs.

Files:

Program.cs
Worker.cs

Uses BackgroundService or IHostedService.

Which one should YOU use?

Summary (Quick Answer)

Best & safest ? Windows Task Scheduler
Create ? Console App (.exe)
Scheduler ? Windows Task Scheduler UI
Files needed ? Program.cs ? exe

Hi,
You can use hangfire or Quartz.NET for .NET application. You can follow the article: https://www.csharp.com/article/scheduling-background-jobs-in-asp-net-core-using-quartz-net/

Part -3

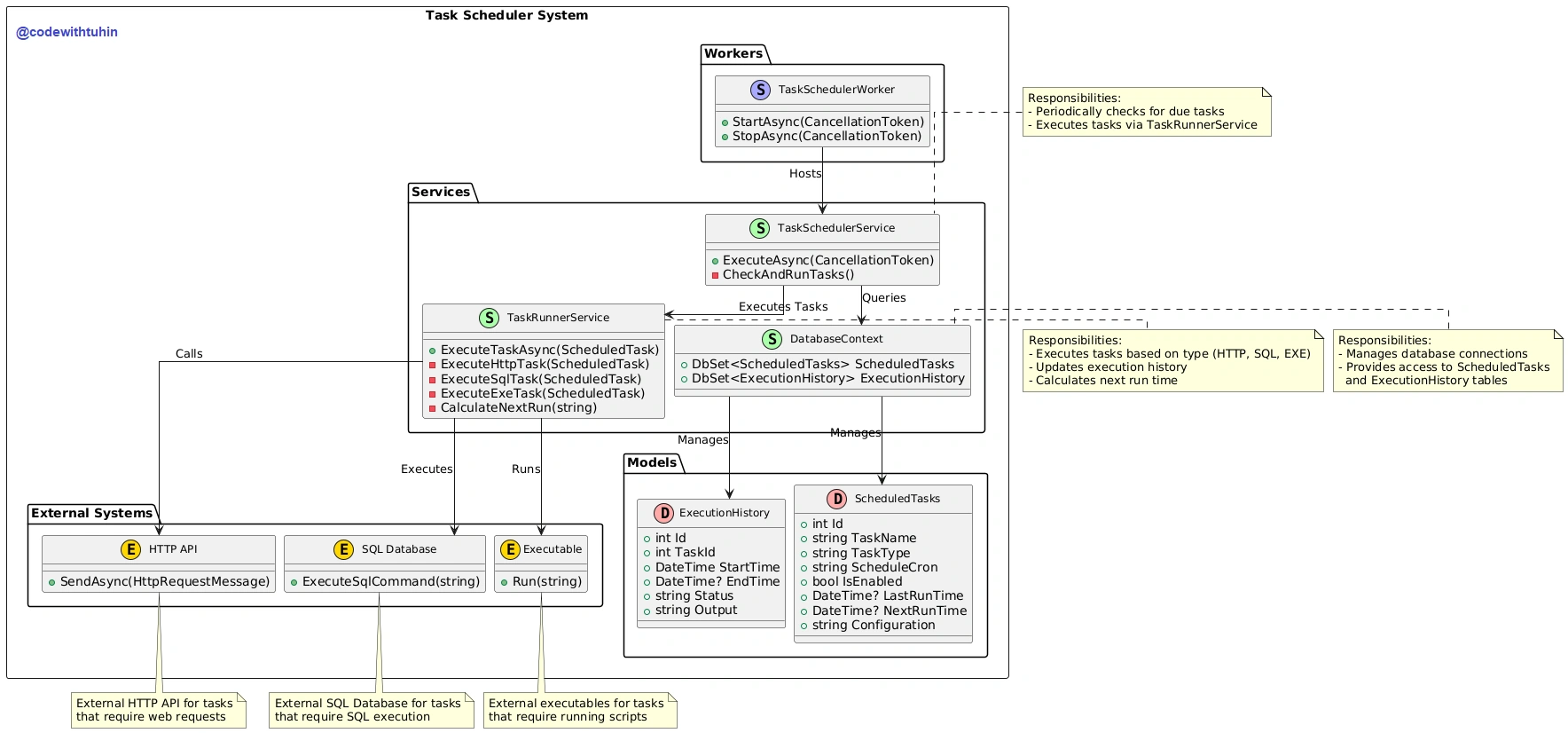

HLD overview:

Part -2

Services/TaskRunnerService.cs

public class TaskRunnerService
{
    private readonly DatabaseContext _dbContext;
    private readonly IHttpClientFactory _httpClientFactory;
    private readonly ILogger _logger;

    public TaskRunnerService(
        DatabaseContext dbContext,
        IHttpClientFactory httpClientFactory,
        ILogger logger)
    {
        _dbContext = dbContext;
        _httpClientFactory = httpClientFactory;
        _logger = logger;
    }

    public async Task ExecuteTaskAsync(ScheduledTask task)
    {
        var history = new ExecutionHistory
        {
            TaskId = task.Id,
            StartTime = DateTime.UtcNow,
            Status = "Running"
        };

        try
        {
            await _dbContext.ExecutionHistory.AddAsync(history);
            await _dbContext.SaveChangesAsync();

            switch (task.TaskType.ToUpper())
            {
                case "HTTP":
                    await ExecuteHttpTask(task);
                    break;
                case "SQL":
                    await ExecuteSqlTask(task);
                    break;
                case "EXE":
                    ExecuteExeTask(task);
                    break;
            }

            history.Status = "Success";
            history.EndTime = DateTime.UtcNow;
        }
        catch (Exception ex)
        {
            history.Status = "Failed";
            history.Output = ex.ToString();
            _logger.LogError(ex, $"Task {task.TaskName} failed");
        }
        finally
        {
            task.LastRunTime = DateTime.UtcNow;
            task.NextRunTime = CalculateNextRun(task.ScheduleCron);
            await _dbContext.SaveChangesAsync();
        }
    }

    private async Task ExecuteHttpTask(ScheduledTask task)
    {
        var config = JsonSerializer.Deserialize(task.Configuration);
        var client = _httpClientFactory.CreateClient();
        var response = await client.SendAsync(new HttpRequestMessage(
            new HttpMethod(config.Method),
            config.Url
        ));
        response.EnsureSuccessStatusCode();
    }

    private DateTime CalculateNextRun(string cronExpression)
    {
        var schedule = CronExpression.Parse(cronExpression);
        return schedule.GetNextOccurrence(DateTime.UtcNow) ?? DateTime.UtcNow.AddHours(1);
    }
}

Program.cs

var builder = Host.CreateApplicationBuilder(args);

builder.Services.AddDbContext(options =>
    options.UseSqlServer(builder.Configuration.GetConnectionString("DefaultConnection")));

builder.Services.AddHttpClient();
builder.Services.AddHostedService();
builder.Services.AddScoped();

var host = builder.Build();
host.Run();

appsettings.json

{
  "ConnectionStrings": {
    "DefaultConnection": "Server=.;Database=TaskScheduler;Trusted_Connection=True;"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.Hosting.Lifetime": "Information"
    }
  }
}

1. Cron Schedule Support: Uses Cronos package for cron expressions

2. Task Types: Supports HTTP, SQL, and EXE tasks

3. Error Handling: Detailed execution history with error logs

4. Thread Safety: Proper scoping with DI containers

5. Configuration: JSON-based configuration for different task types

6. Install required packages:

dotnet add package Microsoft.EntityFrameworkCore.SqlServer
dotnet add package Cronos
dotnet add package Microsoft.Extensions.Http

1. Create database using EF Core migrations:

2. dotnet ef migrations add InitialCreate
   dotnet ef database update



3. Create sample task:

var task = new ScheduledTask
{
    TaskName = "Daily Cleanup",
    TaskType = "HTTP",
    ScheduleCron = "0 2 * * *", // Daily at 2 AM
    Configuration = JsonSerializer.Serialize(new HttpTaskConfig
    {
        Url = "https://api.example.com/cleanup",
        Method = "POST"
    })
};

Part -1

Create these files in your .NET project:

- TaskScheduler/
  +-- Models/
  ¦   +-- ScheduledTask.cs
  ¦   +-- ExecutionHistory.cs
  +-- Services/
  ¦   +-- ITaskSchedulerService.cs
  ¦   +-- TaskSchedulerService.cs
  ¦   +-- TaskRunnerService.cs
  ¦   +-- DatabaseContext.cs
  +-- Workers/
  ¦   +-- TaskSchedulerWorker.cs
  +-- appsettings.json

Create these tables:

CREATE TABLE ScheduledTasks (
    Id INT PRIMARY KEY IDENTITY(1,1),
    TaskName NVARCHAR(100) NOT NULL,
    TaskType NVARCHAR(50) NOT NULL, -- HTTP, SQL, EXE
    ScheduleCron NVARCHAR(50) NOT NULL,
    IsEnabled BIT NOT NULL DEFAULT 1,
    LastRunTime DATETIME,
    NextRunTime DATETIME,
    Configuration NVARCHAR(MAX) -- JSON config
);

CREATE TABLE ExecutionHistory (
    Id INT PRIMARY KEY IDENTITY(1,1),
    TaskId INT FOREIGN KEY REFERENCES ScheduledTasks(Id),
    StartTime DATETIME NOT NULL,
    EndTime DATETIME,
    Status NVARCHAR(20) NOT NULL,
    Output NVARCHAR(MAX)
);

Models/ScheduledTask.cs

public class ScheduledTask
{
    public int Id { get; set; }
    public string TaskName { get; set; }
    public string TaskType { get; set; }
    public string ScheduleCron { get; set; }
    public bool IsEnabled { get; set; }
    public DateTime? LastRunTime { get; set; }
    public DateTime? NextRunTime { get; set; }
    public string Configuration { get; set; } // JSON config
}

Models/ExecutionHistory.cs

public class ExecutionHistory
{
    public int Id { get; set; }
    public int TaskId { get; set; }
    public DateTime StartTime { get; set; }
    public DateTime? EndTime { get; set; }
    public string Status { get; set; } // Success, Failed, Running
    public string Output { get; set; }
}

Services/DatabaseContext.cs

public class DatabaseContext : DbContext
{
    public DatabaseContext(DbContextOptions options)
        : base(options) { }

    public DbSet ScheduledTasks { get; set; }
    public DbSet ExecutionHistory { get; set; }
}

Services/TaskSchedulerService.cs


public class TaskSchedulerService : BackgroundService
{
    private readonly ILogger _logger;
    private readonly IServiceProvider _services;
    private readonly PeriodicTimer _timer = new(TimeSpan.FromMinutes(1));

    public TaskSchedulerService(
        ILogger logger,
        IServiceProvider services)
    {
        _logger = logger;
        _services = services;
    }

    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        while (await _timer.WaitForNextTickAsync(stoppingToken))
        {
            using var scope = _services.CreateScope();
            var dbContext = scope.ServiceProvider.GetRequiredService();
            var taskRunner = scope.ServiceProvider.GetRequiredService();

            var dueTasks = await dbContext.ScheduledTasks
                .Where(t => t.IsEnabled && t.NextRunTime <= DateTime.UtcNow)
                .ToListAsync(stoppingToken);

            foreach (var task in dueTasks)
            {
                _logger.LogInformation($"Executing task {task.TaskName}");
                await taskRunner.ExecuteTaskAsync(task);
            }
        }
    }
}

Hi Subham,

Plesae refer the below link this may help you

https://www.c-sharpcorner.com/blogs/scheduling-in-asp-net-mvc-core

Hi Shubham,

Creating a Task Scheduler in Windows to run a .NET Core application involves several steps. Below is a step-by-step guide to help you set it up:

Step 1: Create a .NET Core Application
1. Install .NET Core SDK: Ensure you have the .NET Core SDK installed on your machine. You can download it from the [official .NET website](https://dotnet.microsoft.com/download).

2. Create a New .NET Core Project:
   - Open a command prompt or terminal.
   - Run the following command to create a new console application:

dotnet new console -n MyScheduledTask

   - Navigate to the project directory:

cd MyScheduledTask

3. Build the Project:
   - Run the following command to build the project:

dotnet build

4. Publish the Project:
   - Publish the project to create a self-contained executable:

dotnet publish -c Release -r win-x64 --self-contained

   - The published files will be located in the `bin/Release/netX.X/win-x64/publish` directory (replace `netX.X` with the appropriate .NET Core version).

Step 2: Create a Batch File to Run the .NET Core Application
1. Create a Batch File:
   - Create a new text file in the publish directory and name it `RunMyScheduledTask.bat`.
   - Open the batch file in a text editor and add the following content:

@echo off
cd /d "%~dp0"
MyScheduledTask.exe

   - Save and close the file.

Step 3: Set Up Task Scheduler
1. Open Task Scheduler:
   - Press `Win + R`, type `taskschd.msc`, and press Enter to open the Task Scheduler.

2. Create a New Task:
   - In the Task Scheduler, click on "Create Task" in the right-hand pane.

3. General Tab:
   - Enter a name for the task (e.g., "RunMyScheduledTask").
   - Optionally, provide a description.
   - Select "Run whether user is logged on or not" and check "Do not store password".

4. Triggers Tab:
   - Click on "New..." to create a new trigger.
   - Set the trigger to your desired schedule (e.g., daily, weekly, at startup, etc.).
   - Configure the start date, time, and recurrence as needed.
   - Click "OK" to save the trigger.

5. Actions Tab:
   - Click on "New..." to create a new action.
   - Set "Action" to "Start a program".
   - In the "Program/script" field, browse to the `RunMyScheduledTask.bat` file you created earlier.
   - In the "Start in" field, enter the path to the directory containing the batch file (e.g., `C:\path\to\publish\directory`).
   - Click "OK" to save the action.

6. Conditions Tab:
   - Configure any additional conditions if needed (e.g., start the task only if the computer is idle).

7. Settings Tab:
   - Configure any additional settings if needed (e.g., allow the task to be run on demand, stop the task if it runs longer than a specified time, etc.).

8. Save the Task:
   - Click "OK" to save the task.

Step 4: Test the Task
1. Run the Task Manually:
   - In the Task Scheduler, find your task in the list, right-click it, and select "Run" to test it.
   - Check the output or logs to ensure the task runs as expected.

2. Check for Errors:
   - If the task does not run as expected, check the "Last Run Result" in the Task Scheduler and review any error messages.

Files to Create
- .NET Core Application:The main executable and associated DLLs.
- Batch File (`RunMyScheduledTask.bat`): A script to run the .NET Core application.

By following these steps, you can successfully create a Task Scheduler task to run your .NET Core application on a specified schedule.
