NetworkStream / stream.write , hexa values.

andrei hooba

Hello,

After tcpclient is connected i must send this packet for login.:

HEXA                                                               ASCII
00 33 00 07 00 00 03 B7-24 15 00 00 00 20 66 63   .3.....·$.... fc
66 38 36 34 63 39 61 37-34 39 33 38 39 65 30 39   f864c9a749389e09
63 65 37 39 34 63 62 65-66 39 61 66 30 61 00 05   ce794cbef9af0a..
35 2E 34 2E 34 00 09 00-01 00 00 00 03 50 4E 47   5.4.4........PNG

i sniffed this packet, after i logged manually.

OK. here is my code

int userid = 62333973;
string userid_hex_form = Convert.ToString(userid, 16); \\<---- this will be: 3B72415
string a = "0033000700000";
string b = "00000020";
string c = a + userid_hex_form + b; \\ <---- all this should be: 00 33 00 07 00 00 03 B7-24 15 00 00 00 20
string d = "0005352E342E340009000100000003504E47";

string f = HexAsciiConvert(c);
string g = HexAsciiConvert(d);

try
            {
                string szData = (f + sSID + g); \\ sSID (sessionid) is the green code, this code changes on every login
                byte[] byData = System.Text.Encoding.ASCII.GetBytes(szData);

              Int32 port = 8080;
                TcpClient client = new TcpClient(sGameServerIp, port);

                NetworkStream stream = client.GetStream();

                stream.Write(byData, 0, byData.Length);
                byData = new Byte[1024];
                String responseData = String.Empty;
                Int32 bytes = stream.Read(byData, 0, byData.Length);
                responseData = System.Text.Encoding.ASCII.GetString(byData, 0, bytes);

      }

            catch (SocketException e)
            {
            }

static string HexAsciiConvert(string hex)
        {
            StringBuilder sb = new StringBuilder();
            for (int i = 0; i <= hex.Length - 2; i += 2)
            {
                sb.Append(Convert.ToString(Convert.ToChar(Int32.Parse(hex.Substring(i, 2),
                System.Globalization.NumberStyles.HexNumber))));
            }
            return sb.ToString();
        }

but my packet looks like:

00 33 00 07 00 00 03 3F-24 15 00 00 00 20 37 64   .3.....?$.... 7d
65 39 63 37 32 36 62 30-36 34 39 61 63 34 65 37   e9c726b0649ac4e7
65 30 38 32 64 32 37 35-33 62 63 63 33 64 00 05   e082d2753bcc3d..
35 2E 34 2E 34 00 09 00-01 00 00 00 03 50 4E 47   5.4.4........PNG

any ideas?

thx

15 Replies

Know the answer? Post it — somebody with the same question will find it here.

Sam Hobbs14y ago
This is a new question. You need to start a new thread for the new question.

The code I posted seems to have helped you. Did it help you? You seem to have solved the problem of sending the data so now you are working on reading the data. Please accept my reply as the answer if it did help you as it appears.

As I said, please create a new thread for the new question. I think however that it will help you to understand that the solutio of how to access the data depends on the format of the data. It is likely that there is a specified structure; there is a certain number of characters in the data and the data is at a specific location, at least relative to each other. You need to know the format of the data and we do not know that. It is possible that the data is not at a position that is always the same relative to the other data, but it probably is.
andrei hooba14y ago
byte[] data2 = { 0x00, 0x0E, 0x00, 0x01, 0x00, 0x00, 0x00, 0x08, 0x4A, 0x43, 0x50, 0x55, 0x7C, 0x47, 0x45, 0x54 };
stream.Write(data2, 0, data2.Length);
System.Threading.Thread.Sleep(1000);

//after sending this command(^) i must find those values between galexu and 0|A|CC|2 , but in hexa.
Vulpes14y ago
I'm not sure what you're asking as those values are already in hex.

Given a byte b, you can find its hexadecimal representation as follows:

string hex = b.ToString("X2");
andrei hooba14y ago
how can i get some informations from stream but in hexa.

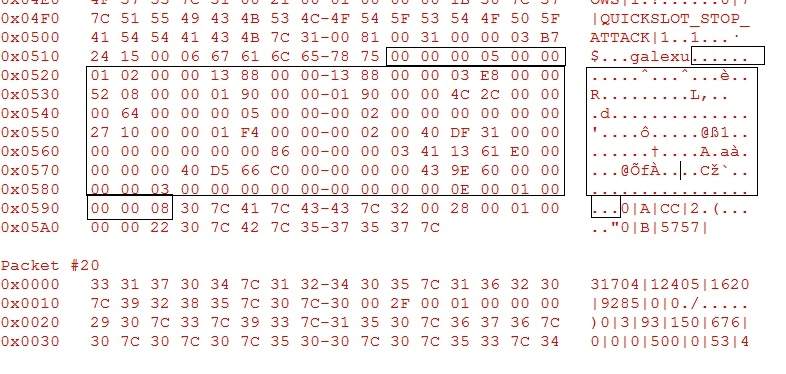

see bellow a snifed packet, how can i take for example 13 88 value (i need other vaules too.), after that i must convert it as integer (this is not a problem).

ty
andrei hooba14y ago
thank you so much both.

Sam Hobbs14y ago

I think it will be easier to just not use strings and such. You are converting everything to hexadecimal then converting that to binary in a string and you are having problems getting the binary data to exist in a string. It will be better to just use bytes from beginning to end. The following shows a way to do this for creating "c" in your program. If I understand what you are doing, then you can use "c" directly in a call to stream.Write. Note that "Endianness" refers to the big endian/little endian I mentioned earlier.

 using  System;

 namespace  _162241

 class  Program

 static  void  Main(string [] args)

 int  userid = 62333973;

 byte [] userid_bytes = BitConverter .GetBytes(userid);

 Array .Reverse(userid_bytes);// reverse Endianness

 byte [] a = { 00, 0x33, 00, 07, 00, 00 };

 byte [] b = BitConverter .GetBytes(32);

 Array .Reverse(b);

 byte [] c = new  byte [a.Length + userid_bytes.Length + b.Length];

 Array .Copy(a, 0, c, 0, a.Length);

 Array .Copy(userid_bytes, 0, c, a.Length, userid_bytes.Length);

 Array .Copy(b, 0, c, a.Length + userid_bytes.Length, b.Length);

 //byte[] d = { 00, 05, 0x35, 0x2E, 0x34, 0x2E, 0x34, 00, 09, 00, 01, 00, 00, 00, 03, 0x50, 0x4E, 47 };

 Dump(c);

 private  static  void  Dump(byte [] ba)

 int  i = 0;

 int  rows = ba.Length >> 4;

 for  (int  row = 0; row < rows; ++row)

 for  (int  col = 0; col < 16; ++col)

 Console .Write("{0:X2} " , ba[i++]);

 Console .WriteLine();

 int  cols = ba.Length & 15;

 if  (cols == 0)

 return ;

 for  (int  col = 0; col < cols; ++col)

 Console .Write("{0:X2} " , ba[i++]);

 Console .WriteLine();

Vulpes14y ago
See if it's any better if you use code page 1250 rather than 1252 which is probably the default on your machine.
andrei hooba14y ago
it becomes: 00 16 00 3F 00 00 00 69-00 00 00 68 00 00 00 06 40 59 00 00 00 00 00 00
Vulpes14y ago
I'd try using windows code page 1252 which is a single byte encoding which uses all code points from 0 to 255.

byte[] byData = System.Text.Encoding.GetEncoding(1252).GetBytes(szData);
responseData = System.Text.Encoding.GetEncoding(1252).GetString(byData, 0, bytes);
andrei hooba14y ago
thank you for your help.

i got another issue.. i must send this packet: "00 16 00 83 00 00 00 69-00 00 00 68 00 00 00 06 40 59 00 00 00 00 00 00"

if i send it like this:

sSend = "\x00\x16\x00\x83\x00\x00\x00\x69\x00\x00\x00\x68\x00\x00\x00\x06\x40\x59\x00\x00\x00\x00\x00\x00";
data = System.Text.Encoding.Default.GetBytes(sSend);
stream.Write(data, 0, data.Length);

the packet becomes: 00 16 00 3F 00 00 00 69-00 00 00 68 00 00 00 06 40 59 00 00 00 00 00 00

if i encode it as UTF8

it becomes: 00 16 00 C2 83 00 00 00-69 00 00 00 68 00 00 00 06 40 59 00 00 00 00 00-00

also, as ASCII it becomes: 00 16 00 3F 00 00 00 69-00 00 00 68 00 00 00 06 40 59 00 00 00 00 00 00

...
Sam Hobbs14y ago
So if you had said in your original question that:

byte[] byData = System.Text.Encoding.ASCII.GetBytes(szData);

was the problem then I could have found the problem much easier and I would probably have provided the answer. I certainly could have been more helpful.

Note also that if you read Encoding.ASCII Property then it clearly states that it is "for the ASCII (7-bit) character set".
andrei hooba14y ago
if i use byte[] byData = System.Text.Encoding.UTF8.GetBytes(szData);

the packet becomes: 00 33 00 07 00 00 03 C2-B7 24 15 00 00 00 20 .3.....Â·$....

EDIT:
used : byte[] byData = System.Text.Encoding.Default.GetBytes(szData)
and now it works :)
Vulpes14y ago
The problem is that character B7 (decimal 183) which is a 'middle dot' in Unicode is outside the ASCII range of 0 - 127.

Consequently, it gets mapped to character 3F (decimal 63) which is a question mark when converted to ASCII.

Could you use UTF-8 instead?
andrei hooba14y ago
thank you for reply.
well , my application is a console application ..

this line should be :
HEX                                                           ASCII
00 33 00 07 00 00 03 B7-24 15 00 00 00 20     .3.....·$....

but my app it sends like this:

00 33 00 07 00 00 03 3F-24 15 00 00 00 20     .3.....?$....

how can i send this packet .. hex (00 33 00 07 00 00 03 B7-24 15 00 00 00 20) or ascii (.3.....·$.... ) to some client?

ty
Sam Hobbs14y ago
To solve this problem, I would use a small project to duplicate the problem and work with that. That makes it easier to work with the problem. I have a few projects I use for doing things like that. You can easily create a console application that only has the part that does not do what you want it to do. The advantage is that it would be easier for you to solve the problem yourself but if you are unable to then it helps others very much to only have the least amount of code that duplictes the problem. My guess is that you will quckly get an answer one way or another if you do that.

Do you know what big-endian and little-endian is? It affects the order in which a processor stores the bytes of numbers that are in a binary format (the format the processor uses) and that consist of more than one byte. That is a typical way for data to be sent /received in an unexpected format. Also ensure that the data is not being sent using Unicode if you are expecting non-Unicode.

Can you tell us what specific line it is that is not doing what you expect? If you can do that then that can save us time.
