RegEx ; GroupNames ; fill in the dictionary.

Hello Tuhin Paul,

Do you have another good tip for me?
Can you answer briefly yes or no? Would be super nice.

Regards Thomas

Hello Paul,

Maybe you can help again, that would be great of you!

a) Problem with group zero.
b) With prefix, maybe it was a misunderstanding.

See the code and my goal.

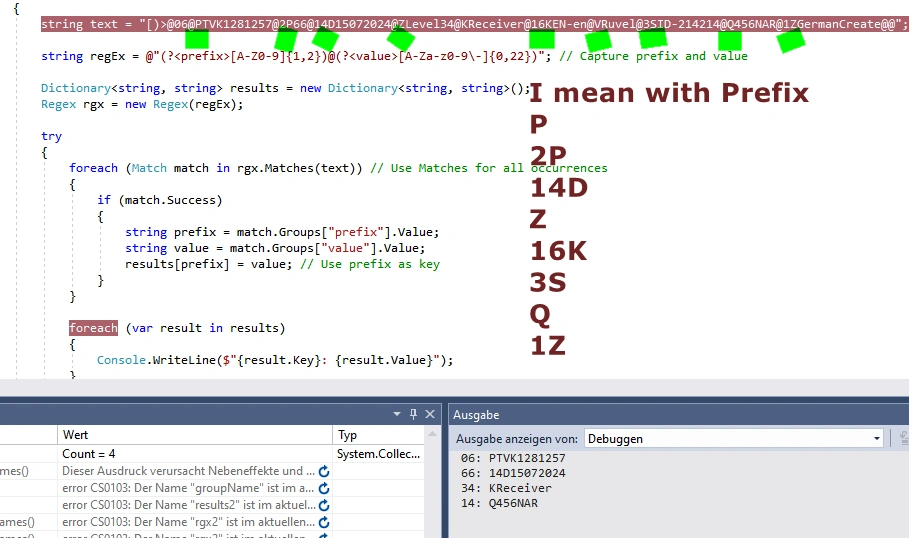

Picture 1

Count from Dictionary is zero. Problem is the group "0"

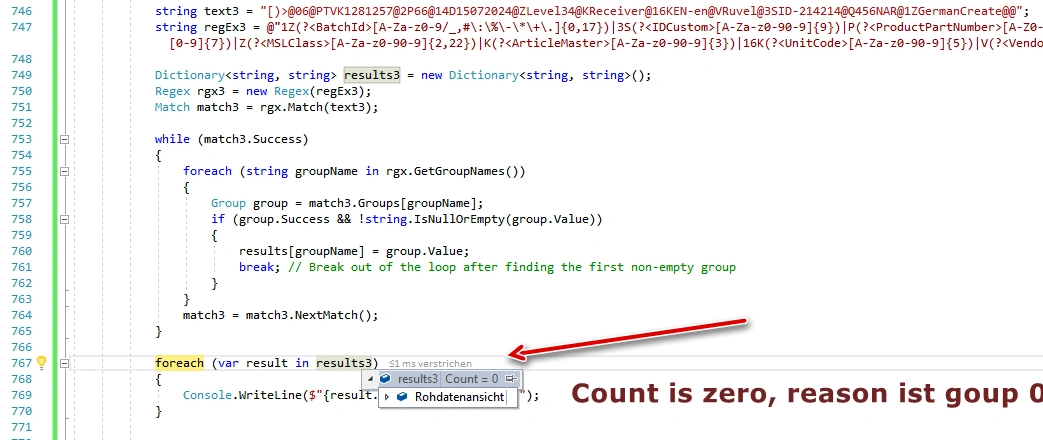

Picture 2

Your Questions:

1. Regex for Specific Lengths:

   • {5,22}: This specifies a range of characters, from 5 to 22 in this case.
   • {4}: This specifies exactly 4 characters.
   • *?: This matches zero or more repetitions of the preceding character. ? alone is equivalent to {0,1}.

2. Group Name "0":

   • The group name "0" is a default group that captures the entire matched pattern. It's generally not needed when using named capture groups. The improved code ignores it.

3. Using Prefix as Output:

   • Yes, you can use the captured prefix in the output. The improved code uses the prefix as the key for the dictionary, achieving this.

4. Try-Catch Block:

   • The try-catch block is indeed helpful. It catches exceptions like timeouts that might occur if the regex matching takes too long. Including it is a good practice.

Output:

This code will produce the desired output:

MSLClass: Level34
ArticleMaster: Receiver
BatchId: GermanCreate
... (and so on)

see the code:

string text = "[)>@06@PTVK1281257@2P66@14D15072024@ZLevel34@KReceiver@16KEN-en@VRuvel@3SID-214214@Q456NAR@1ZGermanCreate@@";

string regEx = @"(?[A-Z0-9]{1,2})@(?[A-Za-z0-9\-]{0,22})"; // Capture prefix and value

Dictionary results = new Dictionary();
Regex rgx = new Regex(regEx);

try
{
    foreach (Match match in rgx.Matches(text)) // Use Matches for all occurrences
    {
        if (match.Success)
        {
            string prefix = match.Groups["prefix"].Value;
            string value = match.Groups["value"].Value;
            results[prefix] = value; // Use prefix as key
        }
    }

    foreach (var result in results)
    {
        Console.WriteLine($"{result.Key}: {result.Value}");
    }
}
catch (RegexMatchTimeoutException exTime)
{
    Trace.WriteLine($" RegexMatchTimeoutException= {exTime.Message}");
}

1. Regex:
   • The regex now captures two groups: prefix (A-Z0-9]{1,2}) for the one or two-letter prefix and value ([A-Za-z0-9-]{0,22}) for any characters and hyphens up to 22 characters.
2. Matches method:
   • We use rgx.Matches(text) to find all occurrences of the pattern in the string.
3. Accessing Values:
   • Inside the loop, we directly access the captured group values using match.Groups["prefix"].Value and match.Groups["value"].Value.
4. Dictionary Key:
   • We use the captured prefix as the key for the results dictionary, achieving the desired output format.

Hello Paul,

Current state, looks better, but not good. Thanks!

A few more small questions in advance.
I think my RegEx is relatively simple and simple.

If I want a string from to?
   {5,22}
If I want to have exactly 4 numbers?
   {4}
If I want to read any number of characters after the prefix?
   {?} is it ? or *


P: TVK1281257
2P: 66
14D: 15072024
Z: Level34
K: Receiver
16K: EN-en
V: Ruvel
3S: ID-214214
Q: 456NAR
1Z: GermanCreate


string text2 = "[)>@06@PTVK1281257@2P66@14D15072024@ZLevel34@KReceiver@16KEN-en@VRuvel@3SID-214214@Q456NAR@1ZGermanCreate@@";

// P
// 2P
// 14D
// Z
// K
// 16K
// V
// 3S
// Q
// 1Z


string regEx2 = @"1Z(?[A-Za-z0-9/_,#\:\%\-\*\+\.]{0,17})|3S(?[A-Za-z0-9\-]{0,6})|P(?[A-Z0-9]{10})|2P(?[A-Z0-9]{0,20})|14D(?[0-9]{7})|Z(?[A-Za-z0-9]{2,22})|K(?[A-Za-z0-9]{8})|16K(?[A-Za-z0-9\-]{5,22})|V(?[A-Za-z0-9]{5})|Q(?[0-9]{3})";


Dictionary results2 = new Dictionary();
Regex rgx2 = new Regex(regEx2);
Match match2 = rgx2.Match(text2);

try
{
	while (match2.Success)
	{
		Trace.WriteLine($" match2.Value= {match2.Value}");

		foreach (string groupName in rgx2.GetGroupNames())
		{
			if (groupName == "0")  // I'm not sure is right and good? And why is zero exist.
				continue;

			Group group = match2.Groups[groupName];

			if (group.Success)
			{
				Trace.WriteLine($" groupName= {groupName}: group.Value= {group.Value}");
			}

			if (group.Success && !string.IsNullOrEmpty(group.Value))
			{
				results2[groupName] = group.Value;
				break; // Break out of the loop after finding the first non-empty group
			}
		}
		match2 = match2.NextMatch();
	}

	foreach (var result in results2)
	{
		Console.WriteLine($"{result.Key}: {result.Value}");
	}
}
catch (RegexMatchTimeoutException exTime)
{
	Trace.WriteLine($" RegexMatchTimeoutException= {exTime.Message}");
}

The goal is
MSLClass: Level34
ArticleMaster: Receiver
BatchId: GermanCreate
and so one.

>You could consider wrapping the Regex.Matches call in a try-catch block to catch potential exceptions like invalid input format.
Can you implement this in your example, and how helpful is it?

The Dictionary results2 has only one item. Why?
Where does the group name 0 come from?
if (groupName == "0")
    continue;
I use this. Is it good?

If I want to have the prefix instead of the group name. Can I read this out, perhaps use it additionally?
Sample:  3S instead IDCustom

Thank you very much for your answer and help.

While the code handles empty values within the regex pattern, it doesn't explicitly handle potential errors during the matching process. You could consider wrapping the Regex.Matches call in a try-catch block to catch potential exceptions like invalid input format.

See the code

string text = "[)>@06@PTVK1281257@2P66@14D15072024@ZLevel34@KReceiver@16KEN-en@VRuvel@3SID-214214@Q456NAR@1ZGermanCreate@@";
string regEx = @"1Z(?[A-Za-z0-9/_,#\:\%\-\*\+\.]{0,17})|3S(?[A-Za-z0-90-9]{9})|P(?[A-Z0-9]{10})|2P(?[A-Z0-9]{20})|14D(?[0-9]{7})|Z(?[A-Za-z0-90-9]{2,22})|K(?[A-Za-z0-90-9]{3})|16K(?[A-Za-z0-90-9]{5})|V(?[A-Za-z0-90-9]{5})|Q(?[0-9]{3})";

Dictionary results = new Dictionary();
Regex rgx = new Regex(regEx);
Match match = rgx.Match(text);

while (match.Success)
{
    foreach (string groupName in rgx.GetGroupNames())
    {
        Group group = match.Groups[groupName];
        if (group.Success && !string.IsNullOrEmpty(group.Value))
        {
            results[groupName] = group.Value;
            break; // Break out of the loop after finding the first non-empty group
        }
    }
    match = match.NextMatch();
}

foreach (var result in results)
{
    Console.WriteLine($"{result.Key}: {result.Value}");
}

Instead of iterating over group names separately, looped through them directly within the same loop.
