Scroll a View Horizontally Using the Mouse Wheel IN WPF

Shanthosh Siva

7y10kWindows Forms

I WANT TO MOVE A PAGE HORIZONTALLY BY UISNG A MOUSE SCROLL IN WPF WINDOWS..

12 Replies

Know the answer? Post it — somebody with the same question will find it here.

Shweta Lodha7y ago
Accepted answer
Please share the complete xaml and in c# code also, I feel you should put braces for IF condition. It would give clear picture on what is happenning
Shanthosh Siva7y ago
@tnx swetha everything working fine....tnx alot

c# code:
private void ScrollViewer_PreviewMouseWheel(object sender, MouseWheelEventArgs e)
{
if (Keyboard.IsKeyDown(Key.LeftShift) || Keyboard.IsKeyDown(Key.RightShift))
{
if (e.Delta > 0)
scrollviewer.PageLeft();
else
scrollviewer.PageRight();
e.Handled = true;
}}

xaml code: Must use this line

Note :
1st open a xaml to write the scrollviewer code
CODE:
PreviewMouseWheel = " Event Name "> .. and click the event PreviewMouseWheel. every thing goes under the scroll viewer.
2nd write ur code on C#.
Shanthosh Siva7y ago
codes
Shanthosh Siva7y ago
Here is my code with keys but code was running fine but not getting an o/p...

Here xaml code while getting a prop of mousewheel event
xaml code : MouseWheel="RadGridViewRoomsSummary_MouseWheel"

Main code :
private void RadGridViewRoomsSummary_MouseWheel(object sender, MouseWheelEventArgs e)
{
ScrollViewer scrollViewer = new ScrollViewer();

if (Keyboard.IsKeyDown(Key.LeftAlt) || Keyboard.IsKeyDown(Key.RightAlt))
//if (Keyboard.Modifiers == ModifierKeys.Shift)

if (e.Delta < 0)
{
scrollViewer.ScrollToLeftEnd();
}
else if(e.Delta > 0)
{
scrollViewer.ScrollToRightEnd();
}
e.Handled = true;
}
Shweta Lodha7y ago
Could you please share the complete error description - which assembly is missing?
Shanthosh Siva7y ago
tx for ur rply i tried almost bt cant worikng @run time error directive assembly reference missing.............
Shweta Lodha7y ago
Here you go:
https://stackoverflow.com/questions/3727439/how-to-enable-horizontal-scrolling-with-mouse/5954157#5954157
Shanthosh Siva7y ago
@swetha By using Shift + Mouse Scroll i want to move a page horizontally,,, can u give some ans for this.....
Shweta Lodha7y ago
Looking like sender is not getting casted to type of Scrollviewer object. Could you please post your XAML code too.
Shanthosh Siva7y ago
@swetha can u say how to set an obj reference in my application
Shanthosh Siva7y ago

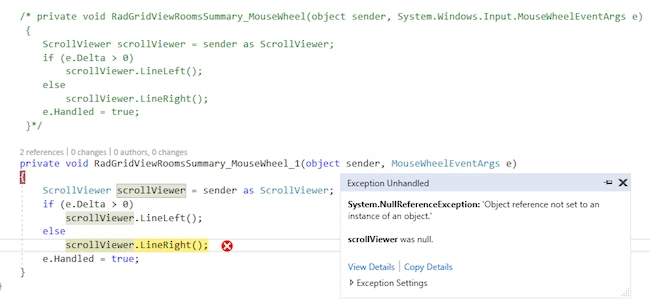

its was working but i have show run time exception
Shweta Lodha7y ago
Here is your solution:
https://social.msdn.microsoft.com/Forums/vstudio/en-US/279e29b8-e439-4d1a-9834-86ce78f6f64f/how-to-enable-horizontal-scrolling-with-mouse-wheel?forum=wpf
"Transparent">
  "Visible" VerticalScrollBarVisibility="Auto"
         PreviewMouseWheel="ScrollViewer_PreviewMouseWheel">
   "2000" Height="1000" Fill="Red"/>


C#:

  private void ScrollViewer_PreviewMouseWheel(object sender, MouseWheelEventArgs e)
  {
   ScrollViewer scrollviewer= sender as ScrollViewer;
   if (e.Delta > 0)
    scrollviewer.LineLeft();
   else
    scrollviewer.LineRight();
   e.Handled = true;
  }
