Self-join, and how does it work in SQL Server

Kiran Kumar

1y780SQL Server

What is a self-join, and how does it work in SQL Server

3 Replies

Know the answer? Post it — somebody with the same question will find it here.

Tuhin Paul1y ago
Accepted answer
Part - 1:

A self-join is a type of join where a table is joined with itself, creating multiple aliases of the same table to compare rows within the table.
Key Characteristics
- Uses same table twice
- Requires table aliases
- Typically links rows based on related columns
- Useful for hierarchical or comparative queries
Now lets check this for a CRM solution:
1. Organizational Hierarchy

  Map employee-manager relationships

  Track reporting structures

  Analyze team compositions
2. Performance Comparisons

  Compare employee salaries

  Identify salary disparities

  Analyze departmental structures
Query Types Demonstrated
1. Manager Identification

  Links employees to their managers

  Uses LEFT JOIN to include all employees
2. Salary Comparison

  Compares employee salaries with managers

  Identifies potential compensation issues
3. Hierarchical Reporting

  Generates comprehensive organizational view

  Sorted by department and salary
Performance Considerations
- Use indexes on joining columns
- Optimize queries for large datasets
- Consider performance impact of complex self-joins
0
Muhammad Imran Ansari1y ago
Hi Kiran,

A self-join in SQL Server is when a table is joined with itself. It is used to compare rows within the same table. For example, imagine an Employees table with columns EmployeeID, Name, and ManagerID. Each employee might have a manager who is also listed in the same table. A self-join can help find the name of each employee's manager by joining the table to itself. SQL Server works by treating the same table as if it were two separate tables using table aliases. Here is an example:
```
SELECT E1.Name AS Employee, E2.Name AS Manager
FROM Employees E1
JOIN Employees E2
ON E1.ManagerID = E2.EmployeeID;
```
Technically, it works like SQL Server, which creates a cartesian product of the rows in E1 and E2 but only retains rows where E1 is used.ManagerID = E2.EmployeeID. For optimization, it uses indexes on ManagerID or EmployeeID, if available, to avoid scanning every row.

Thank you!
0

Tuhin Paul1y ago

Part - 2:

-- Self-Join in CRM: Employee Reporting Hierarchy
CREATE TABLE Employees (
    EmployeeID INT PRIMARY KEY,
    Name VARCHAR(100),
    ManagerID INT,
    Department VARCHAR(50),
    Salary DECIMAL(10,2)
);

-- Insert Sample Data
INSERT INTO Employees (EmployeeID, Name, ManagerID, Department, Salary) VALUES
(1, 'John Smith', NULL, 'Executive', 150000),
(2, 'Alice Johnson', 1, 'Sales', 85000),
(3, 'Bob Williams', 1, 'Marketing', 80000),
(4, 'Charlie Brown', 2, 'Sales', 65000),
(5, 'David Miller', 2, 'Sales', 62000),
(6, 'Eve Davis', 3, 'Marketing', 58000);

-- Self-Join Queries

-- 1. Find Employees with Their Managers
SELECT
    e.EmployeeID,
    e.Name AS EmployeeName,
    m.Name AS ManagerName
FROM
    Employees e
LEFT JOIN
    Employees m ON e.ManagerID = m.EmployeeID;

-- 2. Identify Employees Earning Less Than Their Managers
SELECT
    e.Name AS EmployeeName,
    e.Salary AS EmployeeSalary,
    m.Name AS ManagerName,
    m.Salary AS ManagerSalary
FROM
    Employees e
INNER JOIN
    Employees m ON e.ManagerID = m.EmployeeID
WHERE
    e.Salary < m.Salary;

-- 3. Department-wise Hierarchy with Salary Comparison
SELECT
    e.Department,
    e.Name AS EmployeeName,
    e.Salary AS EmployeeSalary,
    m.Name AS ManagerName,
    m.Salary AS ManagerSalary
FROM
    Employees e
LEFT JOIN
    Employees m ON e.ManagerID = m.EmployeeID
ORDER BY
    e.Department, e.Salary;

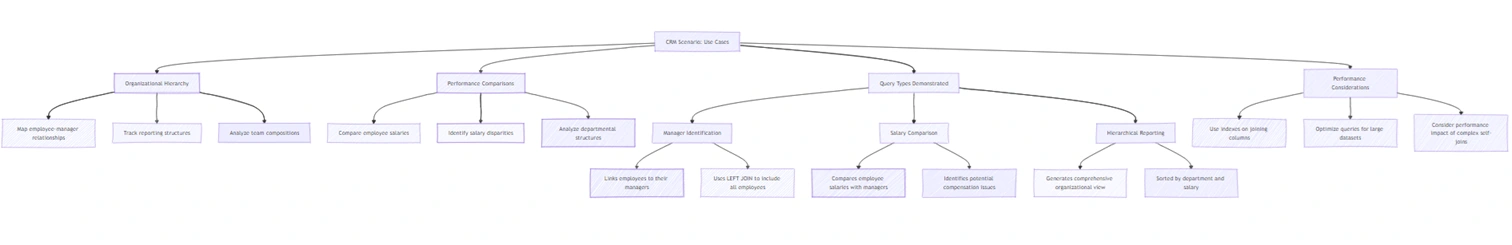

This is a component and sub component flow diagram of our CRM system..
