Winform Application controls displays in top left

Bineesh Viswanath

9y1.1kLearn iOS Programming

Hi,

I am working on the windows project where the main form controls is displaying without fitting the screen size.

controls fitting to 15 inch screen, but not fitting the screen size more than 20 inch.

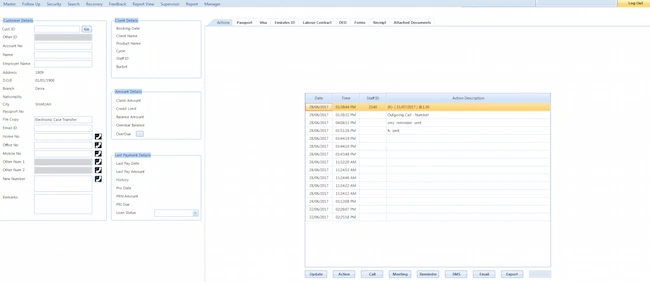

here the screenshot how they displaying in 22 inch screen.

6 Replies

Know the answer? Post it — somebody with the same question will find it here.

Bineesh Viswanath9y ago
I set the TableLayoutPanel Anchor Property is None for in all group box.

The controls inside the TableLayoutPanel Anchor Property is set into top,left.

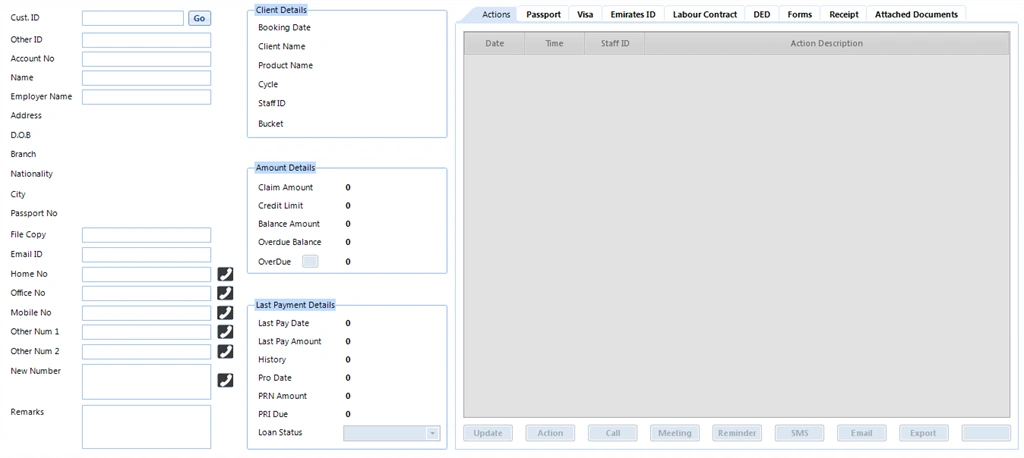

This is how my form looks like. See the screenshot below:-

Kindly do the needful.
Bineesh Viswanath9y ago
Dear Amit,

I updated the form screenshot for better understanding:-

see the screenshot below:-
Control Property:-

GroupBox: Anchor =None

Autosize=false;
Amit Gupta9y ago
Hey Binesh

If you want to resize your control to suit any screen size then Anchor property would plays a vital role.

As in the screenshot, it shows that it was a tab control, right?

It seems that your gridview and buttons are separated, just group it on a canvas ans set the anchor property to top, right and bottom along with your gridview and buttons to suit its position.

All done!! Just set your canvas to Dock Fill to fit into your custom tab control.

Do let me know, if it works for you.
Bineesh Viswanath9y ago
Dear Manikandan,

This is to say that the issue still there.

There are 3 telerik RadGroupBox. Inside those there is TableLayOutPanel.

I set RadGroupBox Anchor property into None.
Bineesh Viswanath9y ago
This is how displays the controls in the form once I set the Anchor property into None.

U can see the actual boundary of form in below screenshot:-
Manikandan Murugesan9y ago
You need to set StartPosition to manual to make the form set start position to the value in Location Property.
public Form1()
{
    InitializeComponent();
    this.StartPosition = FormStartPosition.Manual;
    this.Location = new Point(0, 0);
}
Intelisense Summary for FormStartPosition.Manual
FormStartPosition FormStartPosition.Manual
The position of the form is determined by the System.Windows.Forms.Control.Location property.
