Windows Azure - SQL Azure Management Portal Introduction

Here you will see how to connect and create database using the SQL Azure Management Portal.


From the previous articles we have seen:

  • Creating database using Management Portal web application
  • Creating table through code
  • Using Management Studio desktop application

In this article we are going to discuss how to connect and create databases using the online Management Portal application.

Advantage

One of the advantages of using it would be an extra tool that will be available on machines without SQL Server Management Studio installed.

SQL Azure Management Portal

For invoking the tool there are 2 ways.

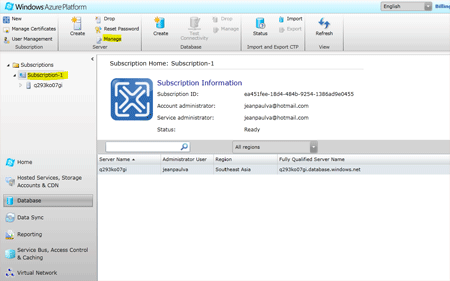

Sign in to your management portal and click on the Manage button from the database view.

SQL Azure Management Portal

Or

Paste the url of your database in a browser address box. You can get the fully qualified url from the database server list as shown below.

Azure Management Portal

In the above case the url would be http://abcd.database.windows.net

SQL Azure Management Portal Application

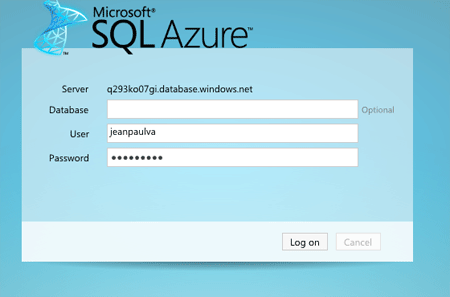

This is another silverlight application. The application will prompt for the username and password. You need to enter your SQL Server username and password.

SQL Azure

Enter your username and password and click the Log on button. (The database name is optional and we can choose later)

The Main Window

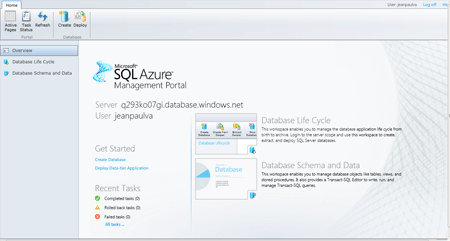

After login, you will be getting the following screen.

SQL Management Portal

Creating new Database

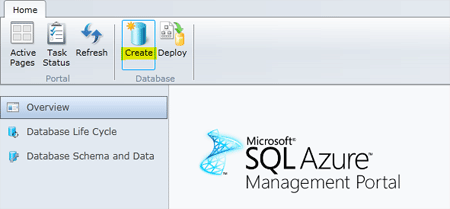

We can create a new database using the Create button from the main window.

Management Portal

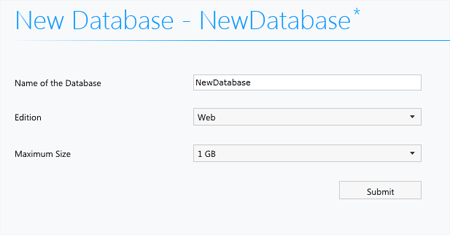

On clicking the button, within a short time you will be prompted with the following screen. You can enter the database details in it.

SQL Azure

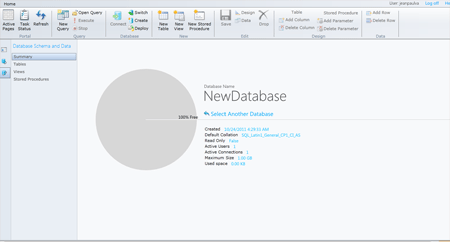

Use the Submit button and you will be ready with the database as shown below.

Windows Azure

Summary

In this article we have seen how to connect and create database using the SQL Azure Management Portal. This tool provides an alternative way to the SQL Server Management Studio desktop application.
