Using Blend to Invoke Commands in Silverlight



Make sure that the Blend 4 SDK is installed from the Microsoft Site here http://www.microsoft.com/download/en/details.aspx?displaylang=en&id=3062

Let's create a new Silverlight Project SLSimpleCommands.

Let's add the following Dlls as references to the Silverlight project.

invoke command in silverlight

Create a ViewModel as shown below:

  public class ViewModel
    {
        public ICommand PopupVM
        {

get
            {
                return new InvokeChildCommand();
            }
        }

        public class InvokeChildCommand :
ICommand

            public bool CanExecute(object parameter)
            {
                if (parameter != null)
                {
                    CanExecuteChanged.Invoke(parameter, new EventArgs());
                }
                return true;
            }

            public event EventHandler CanExecuteChanged;

            public void Execute(object parameter)
            {

//Push the ViewModel into the Popup
                Child child = new Child();
                child.Show();
            }
        }
    }

Add a new Child Window control to the project.

Let's move on to the MainPage.xaml.

<UserControl x:Class="SLSimpleCommands.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:i="http://schemas.microsoft.com/expression/2010/interactivity"
    xmlns:local="clr-namespace:SLSimpleCommands.ViewModels"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="400">

    <UserControl.Resources>
        <local:ViewModel x:Key="popup"></local:ViewModel>
    </UserControl.Resources>


<Grid x:Name="LayoutRoot" Background="White" DataContext="{Binding Source={StaticResource popup}}">
        <Ellipse Fill="#FFF4F4F5" Height="31" Margin="149,199,278,0" Stroke="Black" VerticalAlignment="Top">
            <i:Interaction.Triggers>
                <i:EventTrigger>
                    <i:InvokeCommandAction Command="{Binding PopupVM}"/>
                </i:EventTrigger>
            </i:Interaction.Triggers>
        </Ellipse>
    </Grid>
</
UserControl>

Make sure you have added the namespaces as shown below:


xmlns:i="http://schemas.microsoft.com/expression/2010/interactivity"
          xmlns:local="clr-namespace:SLSimpleCommands.ViewModels"

Also important is how I have bound the ViewModel to the Grid.

Add the ViewModel as a Resource.

         <UserControl.Resources>
             <local:ViewModel x:Key="popup"></local:ViewModel>
         </UserControl.Resources>

Bind the ViewModel to the Grid as shown below :


    <Grid x:Name="LayoutRoot" Background="White" DataContext="{Binding Source={StaticResource popup}}">

Now the ViewModel is available for any of the child controls of the Grid that want to use the the ViewModel.

Check out the use of InvokeCommandAction:

            <i:Interaction.Triggers>
                <i:EventTrigger>
                    <i:InvokeCommandAction Command="{Binding PopupVM}"/>
                </i:EventTrigger>
            </i:Interaction.Triggers>

The Trigger is triggered when the Ellipse is loaded hence as soon as the page opens the Child window opens with it .

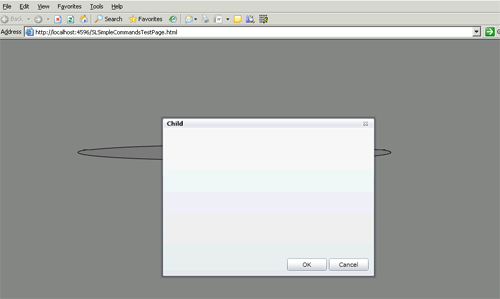

Let's give it a run.

invoke command in silverlight
