Silverlight- TabControl Example Part 2

In this article we will be seeing how to create Silverlight TabControl.


Xaml:

        <sdk:TabControl/>

Steps Involved:

Creating a Silverlight Application:

·         Open Visual Studio 2010.

·         Go to File => New => Project.

·         Select Silverlight from the Installed templates and choose the Silverlight Application template.

·         Enter the Name and choose the location.

·         Click OK.

·         In the New Silverlight Application wizard check the "Host the Silverlight Application in a new Web site".

·         Click OK.

Creating the UI:

TabControl:

        <sdk:TabControl  Height="300" Width="400">
         </
sdk:TabControl>

TabItem:

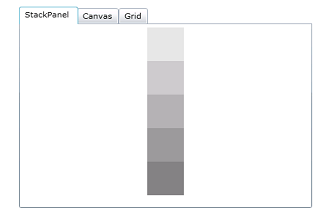

StackPanel:


           <sdk:TabItem Header="StackPanel">

<StackPanel Orientation="Vertical">

<Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.2"></Rectangle>

<Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.4"></Rectangle>

<Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.6"></Rectangle>

<Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.8"></Rectangle>

<Rectangle Height="50" Width="50" Fill="Gray" Opacity="1"></Rectangle>

</StackPanel>

</sdk:TabItem>

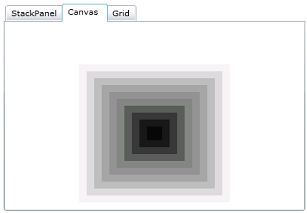

 Canvas:


           <sdk:TabItem Header="Canvas">

<Canvas Height="250" Width="300" Background="White">

<Rectangle Height="200" Width="200" Canvas.Left="50" Canvas.Top="50" Fill="Gray"  Opacity="0.1"  />

<Rectangle Height="180" Width="180" Canvas.Left="60" Canvas.Top="60" Fill="Gray" Opacity="0.2" />

<Rectangle Height="160" Width="160" Canvas.Left="70" Canvas.Top="70" Fill="Gray" Opacity="0.3" />

<Rectangle Height="140" Width="140" Canvas.Left="80" Canvas.Top="80" Fill="Gray" Opacity="0.4" />

<Rectangle Height="120" Width="120" Canvas.Left="90" Canvas.Top="90" Fill="Gray" Opacity="0.5" />

<Rectangle Height="100" Width="100" Canvas.Left="100" Canvas.Top="100" Fill="Gray" Opacity="0.6" />

<Rectangle Height="80" Width="80" Canvas.Left="110" Canvas.Top="110" Fill="Black" Opacity="0.3" />

<Rectangle Height="60" Width="60" Canvas.Left="120" Canvas.Top="120" Fill="Black" Opacity="0.4" />

<Rectangle Height="40" Width="40" Canvas.Left="130" Canvas.Top="130" Fill="Black" Opacity="0.5" />

<Rectangle Height="20" Width="20" Canvas.Left="140" Canvas.Top="140" Fill="Black" Opacity="0.6" />

</Canvas>

</sdk:TabItem>

 Grid:


<sdk:TabItem Header="Grid">

<Grid x:Name="layoutRoot" ShowGridLines="True"  Height="200" Width="350" Background="Orange">

<Grid.RowDefinitions>

<RowDefinition Height="32*" />

<RowDefinition Height="121*" />

</Grid.RowDefinitions>

<TextBlock Text="PROFILE"
                               FontFamily="Verdana"
                               FontSize="14"
                               FontWeight="Bold"
                               Foreground="White"
                               Margin="14,20,-14,99"
                               Grid.RowSpan="2">


</TextBlock>

<Grid Grid.Row="1" ShowGridLines="True" Background="White">

<Grid.ColumnDefinitions>

<ColumnDefinition Width="144*" />

<ColumnDefinition Width="256*" />

</Grid.ColumnDefinitions>

<Grid.RowDefinitions>

<RowDefinition Height="50*" />

<RowDefinition Height="50*" />

<RowDefinition Height="50*" />

                            <RowDefinition Height="50*" />

<RowDefinition Height="50*" />

</Grid.RowDefinitions>

<TextBlock Text="Name :" FontFamily="Verdana" Grid.Row="1" Grid.Column="0"  FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21" Grid.RowSpan="2" ></TextBlock>

<TextBlock Text="About Me :" FontFamily="Verdana" Grid.Row="2" Grid.Column="0" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21" Grid.RowSpan="2" ></TextBlock>

<TextBlock Text="Country :" FontFamily="Verdana" Grid.Row="3" Grid.Column="0" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21" Grid.RowSpan="2" ></TextBlock>

<TextBlock Text="Vijai Anand.R" FontFamily="Verdana" Grid.Row="1" Grid.Column="1" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21" Grid.RowSpan="2"></TextBlock>

<TextBlock Text="SharePoint Developer" FontFamily="Verdana" Grid.Row="2" Grid.Column="1" FontSize="14" FontWeight="Bold"Foreground="Green"
Margin="14,10,-14,21" Grid.RowSpan="2"></TextBlock>

<TextBlock Text="India" FontFamily="Verdana" Grid.Row="3" Grid.Column="1" FontSize="14" FontWeight="Bold" Foreground="Green"Margin="14,10,-14,21" Grid.RowSpan="2"></TextBlock>

</Grid>
                </Grid>

</sdk:TabItem>
