Chapter 1: SQL Query Performance Tuning

Posted by Apress Free Book | SQL Server 2005/2008 January 26, 2010
Query performance tuning is an important part of today's database applications. Often you can achieve large savings in both time and money with proper query performance tuning

The Performance-Tuning Process

The performance-tuning process consists of identifying performance bottlenecks, troubleshooting their causes, applying different resolutions, and then quantifying performance improvements. It is necessary to be a little creative, since most of the time there is no one silver bullet to improve performance. The challenge is to narrow down the list of possible causes and evaluate the effects of different resolutions. You can even undo modifications as you iterate through the tuning process.

The Core Process

During the tuning process, you must examine various hardware and software factors that can affect the performance of a SQL Server-based application. You should be asking yourself the following general questions during the performance analysis:

  • Is any other resource-intensive application running on the same server?
  • Is the hardware subsystem capable of withstanding the maximum workload?
  • Is SQL Server configured properly?
  • Is the database connection between SQL Server and the database application efficient?
  • Does the database design support the fastest data retrieval (and modification for an updatable database)?
  • Is the user workload, consisting of SQL queries, optimized to reduce the load on SQL Server?
  • What processes are causing the system to slow down as reflected in the measurement of various wait states?
  • Does the workload support the maximum concurrency?

If any of these factors is not configured properly, then the overall system performance may suffer. Let's briefly examine these factors.

Having another resource-intensive application on the same server can limit the resources available to SQL Server. Even an application running as a service can consume a good part of the system resources and limit the resources available to SQL Server. For example, running Windows Task Manager continuously on the server is not recommended. Windows Task Manager is also an application, taskmgr.exe, which runs at a higher priority than the SQL Server process. Priority is the weight given to a resource that pushes the processor to give it greater preference when executing. To determine the priority of a process, follow these steps:

  1. Launch Windows Task Manager.
  2. Select View -> Select Columns.
  3. Select the Base Priority check box.
  4. Click the OK button.

These steps will add the Base Priority column to the list of processes. Subsequently, you will be able to determine that the SQL Server process (sqlservr.exe) by default runs at Normal priority, whereas the Windows Task Manager process (taskmgr.exe) runs at High priority. Therefore, to allow SQL Server to maximize the use of available resources, you should look for all the nonessential applications/services running on the SQL Server machine and ensure that they are not acting as resource hogs.

Improperly configuring the hardware can prevent SQL Server from gaining the maximum benefit from the available resources. The main hardware resources to be considered are processor, memory, disk, and network. For example, in a server with more than 4GB of memory, an improper memory configuration will prevent SQL Server from using the memory beyond 4GB. Furthermore, if the capacity of a particular resource is small, then it can soon become a performance bottleneck for SQL Server. Chapter 2 covers these hardware bottlenecks in detail.

You should also look at the configuration of SQL Server, since proper configuration is essential for an optimized application. There is a long list of SQL Server configurations that define the generic behavior of a SQL Server installation. These configurations can be viewed and modified using a system stored procedure, sp_configure. Many of these configurations can be managed interactively through SQL Server Enterprise Manager.

Since the SQL Server configurations are applicable for the complete SQL Server installation, a standard configuration is usually preferred. The good news is that, generally, you need not modify these configurations; the default settings work best for most situations. In fact, the general recommendation is to keep the SQL Server configurations at the default values. I discuss the configuration parameters in detail throughout the book.

Poor connectivity between SQL Server and the database application can hurt application performance. One of the questions you should ask yourself is, How good is the database connection? For example, the query executed by the application may be highly optimized, but the database connection used to submit this query may add considerable overhead to the query performance. Based on the distribution of the application and the database, different network protocols should be used to reduce the network overhead. Additionally, the data access layer used to manage the database connectivity above the network connection may not be efficient. The data access layer technology or the way the data access layer is used by the application may not be optimal.

The design of the database should also be analyzed while troubleshooting performance. This helps you understand not only the entity-relationship model of the database but also why a query may be written in a certain way. Although it may not always be possible to modify a database design because of wider implications on the database application, a good understanding of the database design helps you focus in the right direction and understand the impact of a resolution. This is especially true of the primary and foreign keys and the clustered indexes used in the tables.

The application may be slow because of poorly built queries, the queries might not be able to use the indexes, or perhaps even the indexes themselves are incorrect or missing. If any of the queries are not optimized sufficiently, they can seriously impact other queries' performance. I cover index optimization in depth in Chapters 3, 4, 5, and 6. The next question at this stage should be, Is a query slow because of its resource intensiveness or because of concurrency issues with other queries? You can find in-depth information on blocking analysis in Chapter 12.

When processes run on a server, even one with multiple processors, at times one process will be waiting on another to complete. You can get a fundamental understanding of the root cause of slowdowns by identifying what is waiting and what is causing it to wait. You can realize this through operating system counters that you access through dynamic management views within SQL Server. I cover this information in Chapter 2 and in Chapter 12.

The challenge is to find out which factor is causing the performance bottleneck. For example, with slow-running SQL queries and high pressure on the hardware resources, you may find that both poor database design and a nonoptimized workload are to blame. In such a case, you must diagnose the symptoms further and correlate the findings with possible causes. Because performance tuning can be time consuming and tiresome, you should ideally take a preventive approach by designing the system for optimum performance from the outset.

To strengthen the preventive approach, every lesson that you learn during the optimization of poor performance should be considered an optimization guideline when implementing new database applications. There are also proven best practices that you should consider while implementing database applications. I present these best practices in detail throughout the book, and Chapter 18 is dedicated to outlining many of the optimization best practices.

Please ensure that you take the performance optimization techniques into consideration at the early stages of your database application development. Doing so will help you roll out your database projects without big surprises later.

Unfortunately, we rarely live up to this ideal and often find database applications needing performance tuning. Therefore, it is important to understand not only how to improve the performance of a SQL Server–based application but also how to diagnose the causes of poor performance.

Iterating the Process

Performance tuning is an iterative process, where you identify major bottlenecks, attempt to resolve them, measure the impact of your changes, and return to the first step until performance is acceptable. While applying your solutions, you should follow the golden rule of making only one change at a time. Any change usually affects other parts of the system, so you must reevaluate the effect of each change on the performance of the overall system.

As an example, adding an index may fix the performance of a specific query, but it could cause other queries to run more slowly, as explained in Chapter 4. Consequently, it is preferable to conduct a performance analysis in a test environment to shield users from your diagnosis attempts and intermediate optimization steps. In such a case, evaluating one change at a time also helps in prioritizing the implementation order of the changes on the production server, based on their relative contributions.

You can keep on chipping away at performance bottlenecks and improving the system performance gradually. Initially, you will be able to resolve big performance bottlenecks and achieve significant performance improvements, but as you proceed through the iterations, your returns will gradually diminish. Therefore, to use your time efficiently, it is worthwhile to quantify the performance objectives first (for example, an 80 percent reduction in the time taken for a certain query, with no adverse effect anywhere else on the server) and then work toward them.

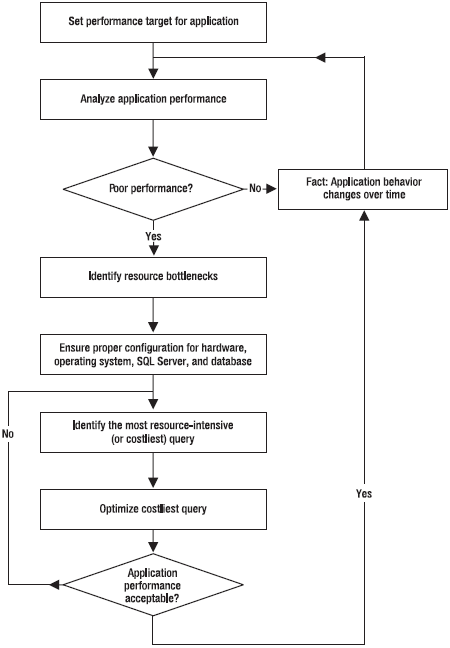

The performance of a SQL Server application is highly dependent on the amount and distribution of user activity (or workload) and data. Both the amount and distribution of workload and data change over time, and differing data can cause SQL Server to execute SQL queries differently. The performance resolution applicable for a certain workload and data may lose its effect over a period of time. Therefore, to ensure an optimum system performance on a continuing basis, you will need to analyze performance at regular intervals. Performance tuning is a never-ending process, as shown in Figure 1-1.

Figure 1-1. Performance-tuning process

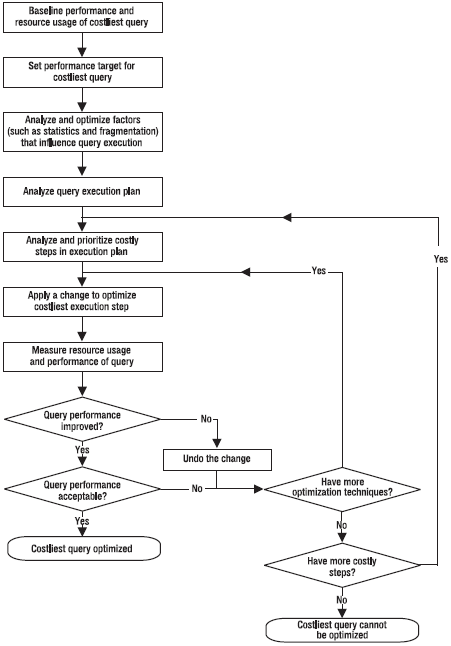

You can see that the steps to optimize the costliest query make for a complex process, which also requires multiple iterations to troubleshoot the performance issues within the query and apply one change at a time. Figure 1-2 shows the steps involved in the optimization of the costliest query.

Figure 1-2. Optimization of the costliest query

As you can see from this process, there is quite a lot to do to ensure that you correctly tune the performance of a given query. It is important to use a solid process like this in performance tuning to focus on the main identified issues.

Having said this, it also helps to keep a broader perspective about the problem as a whole, since sometimes you may believe that you are trying to solve the correct performance bottleneck when in reality something else is causing the problem.
