Display Data from Database through JSP And JDBC


Creation of a context file

Create any folder in any drive as (E:\Jsp). Inside that folder store your .jsp files. Give the Context path name as jsp and docBase as E:\Jsp, here docBase means the total path where we are storing our .jsp files. These changes are done in the server.xml file, which is present in (E:\Program Files\Apache Software Foundation\Tomcat 6.0\conf) directory.

Server.xml file

<?xml version='1.0' encoding='utf-8'?>
<!--
  Licensed to the Apache Software Foundation (ASF) under one or more
  contributor license agreements.  See the NOTICE file distributed with
  this work for additional information regarding copyright ownership.
  The ASF licenses this file to You under the Apache License, Version 2.0
  (the "License"); you may not use this file except in compliance with
  the License.  You may obtain a copy of the License at

      http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License.
-->
<!-- Note:  A "Server" is not itself a "Container", so you may not

     define subcomponents such as "Valves" at this level.
     Documentation at /docs/config/server.html
 -->
<Server port="8005" shutdown="SHUTDOWN">

  <!--APR library loader. Documentation at /docs/apr.html -->
  <Listener className="org.apache.catalina.core.AprLifecycleListener" SSLEngine="on" />
  <!--Initialize Jasper prior to webapps are loaded. Documentation at /docs/jasper-howto.html -->
  <Listener className="org.apache.catalina.core.JasperListener" />
  <!-- JMX Support for the Tomcat server. Documentation at /docs/non-existent.html -->
  <Listener className="org.apache.catalina.mbeans.ServerLifecycleListener" />
  <Listener className="org.apache.catalina.mbeans.GlobalResources
                                                                          LifecycleListener" />

  <!-- Global JNDI resources
       Documentation at /docs/jndi-resources-howto.html
  -->
  <GlobalNamingResources>
    <!-- Editable user database that can also be used by
         UserDatabaseRealm to authenticate users
    -->
    <Resource name="UserDatabase" auth="Container"
              type="org.apache.catalina.UserDatabase"
              description="User database that can be updated and saved"
              factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
              pathname="conf/tomcat-users.xml" />
  </GlobalNamingResources>

  <!-- A "Service" is a collection of one or more "Connectors" that share
       a single "Container" Note:  A "Service" is not itself a "Container",
       so you may not define subcomponents such as "Valves" at this level.
       Documentation at /docs/config/service.html
   -->
  <Service name="Catalina">

    <!--The connectors can use a shared executor, you can define one or more named thread
          pools-->
    <!--
    <Executor name="tomcatThreadPool" namePrefix="catalina-exec-"
        maxThreads="150" minSpareThreads="4"/>
    -->

    <!-- A "Connector" represents an endpoint by which requests are received
         and responses are returned. Documentation at :
         Java HTTP Connector: /docs/config/http.html (blocking & non-blocking)
         Java AJP  Connector: /docs/config/ajp.html
         APR (HTTP/AJP) Connector: /docs/apr.html
         Define a non-SSL HTTP/1.1 Connector on port 8080
    -->
    <Connector port="8081" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" />
    <!-- A "Connector" using the shared thread pool-->
    <!--
    <Connector executor="tomcatThreadPool"
               port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443" />
    -->
    <!-- Define a SSL HTTP/1.1 Connector on port 8443
         This connector uses the JSSE configuration, when using APR, the
         connector should be using the OpenSSL style configuration
         described in the APR documentation -->
    <!--
    <Connector port="8443" protocol="HTTP/1.1" SSLEnabled="true"
               maxThreads="150" scheme="https" secure="true"
               clientAuth="false" sslProtocol="TLS" />
    -->

    <!-- Define an AJP 1.3 Connector on port 8009 -->
    <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />

    <!-- An Engine represents the entry point (within Catalina) that processes
         every request.  The Engine implementation for Tomcat stand alone
         analyzes the HTTP headers included with the request, and passes them
         on to the appropriate Host (virtual host).
         Documentation at /docs/config/engine.html -->

    <!-- You should set jvmRoute to support load-balancing via AJP ie :
    <Engine name="Standalone" defaultHost="localhost" jvmRoute="jvm1">
    -->
    <Engine name="Catalina" defaultHost="localhost">

      <!--For clustering, please take a look at documentation at:
          /docs/cluster-howto.html  (simple how to)
          /docs/config/cluster.html (reference documentation) -->
      <!--
      <Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"/>
      -->

      <!-- The request dumper valve dumps useful debugging information about
            the request and response data received and sent by Tomcat.
            Documentation at: /docs/config/valve.html -->
      <!--
      <Valve className="org.apache.catalina.valves.RequestDumperValve"/>
      -->

      <!-- This Realm uses the UserDatabase configured in the global JNDI
            resources under the key "UserDatabase".  Any edits
            that are performed against this UserDatabase are immediately
            available for use by the Realm.  -->
      <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
             resourceName="UserDatabase"/>

      <!-- Define the default virtual host
            Note: XML Schema validation will not work with Xerces 2.2.
       -->
      <Host name="localhost"  appBase="webapps"
            unpackWARs="true" autoDeploy="true"
            xmlValidation="false" xmlNamespaceAware="false">

        <!-- SingleSignOn valve, share authentication between web applications
             Documentation at: /docs/config/valve.html -->
        <!--
        <Valve className="org.apache.catalina.authenticator.SingleSignOn" />
        -->

        <!-- Access log processes all example.
             Documentation at: /docs/config/valve.html -->
        <!--
        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="localhost_access_log." suffix=".txt" pattern="common" resolveHosts="false"/>
        -->

            <Context path="/jsp" docBase="E:\Jsp" reloadable="true" debug="0" />
      </Host>
    </Engine>
  </Service>
</Server>


Table creation

First create an employee table in Oracle and insert some data as below

Create table employee (empid varchar(10),empname varchar(10),sal int)

 insert into employee values('e001','Raj',10000)
 insert into employee values('e002','Harry',20000)
 insert into employee values('e003','Sunil',30000)
 insert into employee values('e004','Pollock',40000)
 insert into employee values('e005','Jonty',50000)
 insert into employee values('e006','Kallis',60000)
 insert into employee values('e007','Richard',70000)


Creation of dsn (database source name)

Start-Control panel- Administrative Tools- Data Sources (ODBC)-go to system dsn tab-click add button-select a driver for which you want to set up data source (for Oracle- Oracle in XE)-select it and click finish-give any name in data source name textbox-then click ok button.
Note:- Here Username=system, Password=pintu and Dsn name=dsn1

Display.jsp

<%@ page import="java.sql.*" %>
<html>
<body bgcolor="Yellow">
  <table border="1" width="30%" height="30%">
  <tr><th><font color='Red'>EMP ID</font></th><th><font color='Red'>EMP NAME</font></th><th><font color='Red'>SALARY</font></th></tr>
<%
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
Connection con=DriverManager.getConnection("jdbc:odbc:dsn1","system","pintu");
Statement stmt=con.createStatement();
ResultSet rs=stmt.executeQuery("select *  from employee");
  while(rs.next())
  {
      String EmployeeId=rs.getString("empid");
      String EmployeeName=rs.getString("empname");
      int Salary=rs.getInt("sal");
  %>
<tr>
<td><b><font color='#663300'><%=EmployeeId%></font></b></td>
<td><b><font color='#663300'><%=EmployeeName%></font></b></td>
<td><b><font color='#663300'><%=Salary%></font></b></td>
</tr>
<%
  }
 %>
 </table>
     </body>
</html>


Running the application

Run the tomcat then write the below line in the URL

http://localhost:8081/jsp/

Here jsp is the Context path, which we mentioned in the server.xml file, which is present in (E:\Program Files\Apache Software Foundation\Tomcat 6.0\conf) directory.

After giving the URL a set a listing will come, here only one appears, as Display.jsp,click it

http://localhost:8081/jsp/Display.jsp

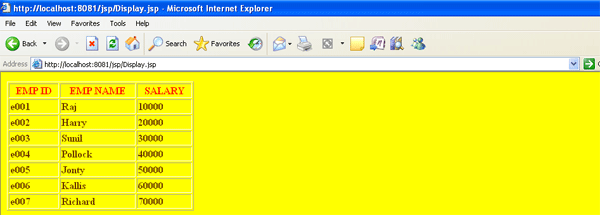

Output

using database in jsp

Thanks for reading
