Hello World Application in Xamarin

In this article, we will learn how to create a simple Hello World Application for Android device using Xamarin / Mono for Android.

First you must install Xamarin for Android.

Let's Start

1. Go to File -> New -> Project.

2.
 Select Android Application -> Give it a Name.

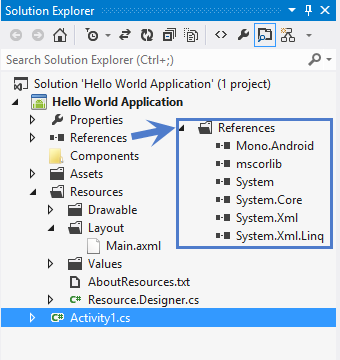

Before starting, have a look at Solution Explorer. An Android Application contains Properties, References, Assets and Resources and so on. Properties contain AssemblyInfo (the same as you saw in the C# project). The References folder contains Assembly Files (DLL files). The Mono.Android DLL assembly contains the C# binding to the Android API.



The resources folder contains a Drawable folder (that contains icons and images for the application), Layout (provides a designer surface for the application). Resource.Designer.cs contains auto generated code. As we will start from the basics, delete the main.axml layout and the Activity1.cs file from the project.

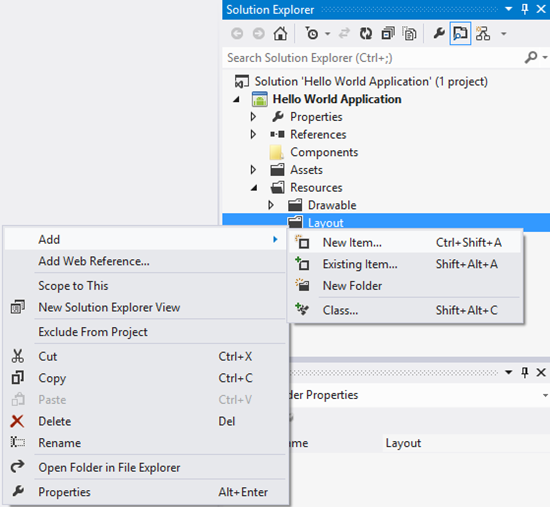

3. Right-click on Layout then seelct Add -> New Item.

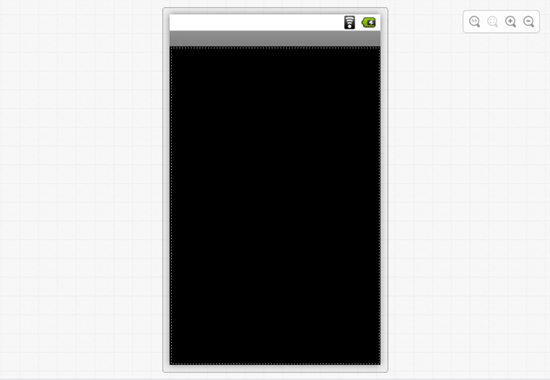

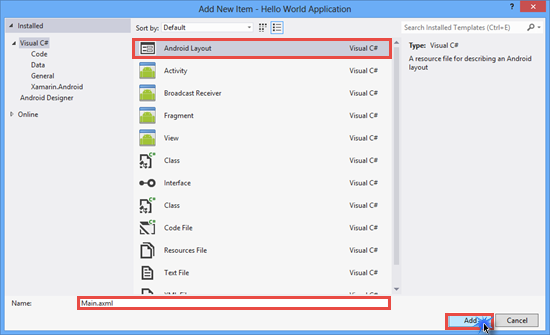

4. Add an Android Layout (named Main.axml) then click on Add and select it.




5.

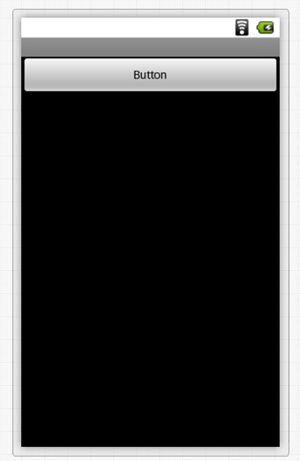

Drop a Button control from the Toolbox.



Set the Button text as "Click Me!" and id as "@+id/btn_Hello".

Main.axml code:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="fill_parent"
  5.     android:layout_height="fill_parent"
  6.     android:minWidth="25px"
  7.     android:minHeight="25px">
  8.     <Button
  9.         android:text="Click Me!"
  10.         android:layout_width="fill_parent"
  11.         android:layout_height="wrap_content"
  12.         android:id="@+id/btn_Hello" />
  13. </LinearLayout>

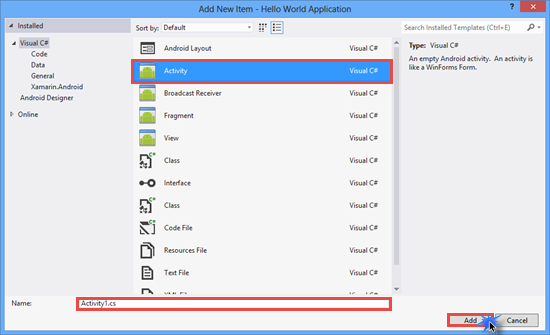

6. Add a new item then select Activity then click on Add.


Activity1.cs Code:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5.
  6. using Android.App;
  7. using Android.Content;
  8. using Android.OS;
  9. using Android.Runtime;
  10. using Android.Views;
  11. using Android.Widget;
  12.
  13. namespace Hello_World_Application
  14. {
  15.     //Set the Label = "Hello World Application" which is displayed on the Top of the Application(in Title)
  16.     //Set MainLauncher = true makes this Activity as a Main Activity and Application starts from this Activity.
  17.     //Set Icon using Icon = "@drawable/icon"
  18.     [Activity(Label = "Hello World Application", MainLauncher = true, Icon = "@drawable/icon")]
  19.     public class Activity1 : Activity
  20.     {
  21.         //Creating Instance of Button
  22.         Button btn_Hello;
  23.         protected override void OnCreate(Bundle bundle)
  24.         {
  25.             base.OnCreate(bundle);
  26.
  27.             //SetContentView
  28.             SetContentView(Resource.Layout.Main);
  29.             //Get btn_Hello Button control from the Manin.axml Layout.
  30.             btn_Hello = FindViewById<Button>(Resource.Id.btn_Hello);
  31.             //Creating Click event of btn_Hello
  32.             btn_Hello.Click += btn_Hello_Click;
  33.         }
  34.         //btn_Hello Click Event
  35.         void btn_Hello_Click(object sender, EventArgs e)
  36.         {
  37.             //Display a Toast Message on Clicking the btn_Hello
  38.             Toast.MakeText(this"Hello World Application by Anoop", ToastLength.Short).Show();
  39.         }
  40.     }
  41. }

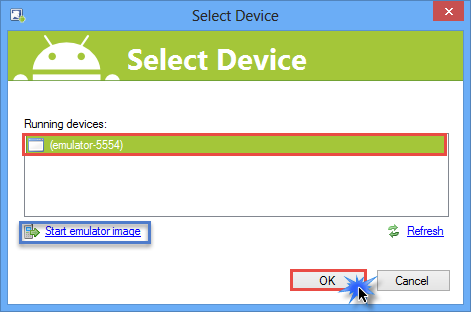

7. Build and run the application. Start an emulator image if not started. Select the Running devices and then click on OK.

Note
: the Emulator takes a lot of time to start. Enable USB Debugging on your Android Device and run your application on the Device directly; that is much faster compared to debugging on an emulator.



Final preview:



I hope you like it. Thanks.
