How to Set A Progress Bar in Android

Introduction


In this article, I will tell you how to add a progress bar to an Android application. A progress bar is a visual indicator of the progress of an operation. It displays a bar to the user representing how much work has done; the application can change the length of the bar as it moves forward. A progress bar can also be made indeterminate. In this mode, the progress bar shows a cyclic animation. This mode is used by applications when the length of the task is unknown.

Step 1

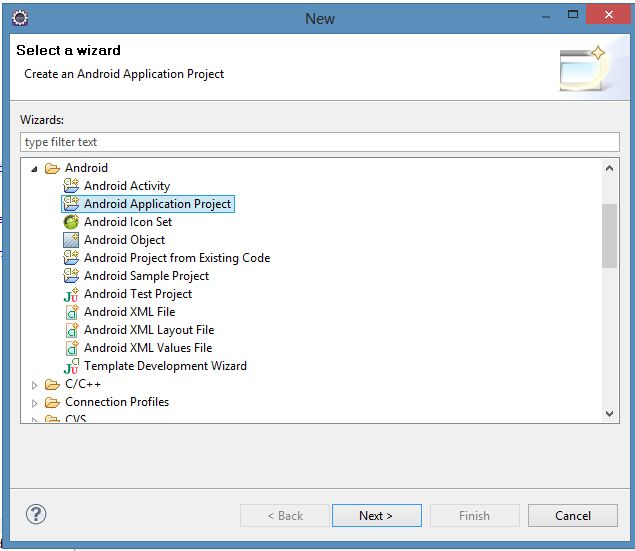

First, create a new project using "File" -> "New" -> "Android Application Project":

After opening the new window as shown in the figure, press Enter.

The Application Name, Project Name, and Package Name are as shown below:



Step 2

Open the activity_main.xml file using "ProgressBar/res/layout/activity_main.xml" and update it using the following code:
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     tools:context=".MainActivity" >
  6.     <TextView
  7.         android:id="@+id/textView1"
  8.         android:layout_width="wrap_content"
  9.         android:layout_height="30dp"
  10.         android:layout_alignParentLeft="true"
  11.         android:layout_alignParentRight="true"
  12.         android:layout_alignParentTop="true"
  13.         android:text="@string/hello_world" />
  14.     <ProgressBar
  15.         android:id="@+id/progressBar1"
  16.         style="?android:attr/progressBarStyleLarge"
  17.         android:layout_width="wrap_content"
  18.         android:layout_height="wrap_content"
  19.         android:layout_alignParentLeft="true"
  20.         android:layout_below="@+id/textView1"
  21.         android:layout_marginTop="37dp" />
  22. </RelativeLayout>
Step 3

Open the MainActivity.java file using "ProgressBar/src/com.example.progressbar/MainActivity.java":
  1. package com.example.progressbar;
  2. import android.app.Activity;
  3. import android.os.Bundle;
  4. import android.os.Handler;
  5. import android.os.Message;
  6. import android.widget.ProgressBar;
  7. public class MainActivity extends Activity
  8. {
  9.  ProgressBar myProgressBar1,myProgressBar2;
  10.  int myProgress = 0;
  11.  @Override
  12.  public void onCreate(Bundle savedInstanceState)
  13.  {
  14.     super.onCreate(savedInstanceState);
  15.     setContentView(R.layout.activity_main);
  16.     myProgressBar1=(ProgressBar) findViewById(R.id.progressBar1);
  17.     new Thread(myThread).start();
  18.  }
  19. private Runnable myThread = new Runnable()
  20. {
  21.     @Override
  22.     public void run()
  23.     {
  24.       // TODO Auto-generated method stub
  25.         while (myProgress<100)
  26.         {
  27.             try{
  28.                 myHandle.sendMessage(myHandle.obtainMessage());
  29.                 Thread.sleep(1000);
  30.             }
  31.             catch(Throwable t)
  32.             {   }
  33.         }
  34.     }
  35.    Handler myHandle = new Handler()
  36.    {
  37.         @Override
  38.         public void handleMessage(Message msg)
  39.         {
  40.             // TODO Auto-generated method stub
  41.             myProgress++;
  42.             myProgressBar1.setProgress(myProgress);
  43.         }
  44.     };
  45. };
Step 4

Open the strings.xml file using "ProgressBar/res/values/strings.xml" and update it if needed:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <resources>
  3.     <string name="app_name">ProgressBar</string>
  4.     <string name="hello_world">Progress Bar :</string>
  5.     <string name="menu_settings">Settings</string>
  6. </resources>
Step 5

Open the manifest.xml file using "ProgressBar/ProgressBar_manifest.xml" as shown in the following:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="com.progress.bar"
  4.     android:versionCode="1"
  5.     android:versionName="1.0" >
  6.     <uses-sdk
  7.         android:minSdkVersion="8"
  8.         android:targetSdkVersion="17" />
  9.     <application
  10.         android:allowBackup="true"
  11.         android:icon="@drawable/ic_launcher"
  12.         android:label="@string/app_name"
  13.         android:theme="@style/AppTheme" >
  14.         <activity
  15.             android:name="com.progress.bar.MainActivity"
  16.             android:label="@string/app_name" >
  17.             <intent-filter>
  18.                 <action android:name="android.intent.action.MAIN" />
  19.                 <category android:name="android.intent.category.LAUNCHER" />
  20.             </intent-filter>
  21.         </activity>     </application>
  22. </manifest>
Step 6

The output will be as shown below:
