Create a Slider Show Screen Space On Button Click Using C# Script In Untiy

Introduction


This article demonstrates how to create a Slider Show Screen Show on button click using C# scripts in Unity.

Prerequisites

Unity Environment version 2018.4.19f1

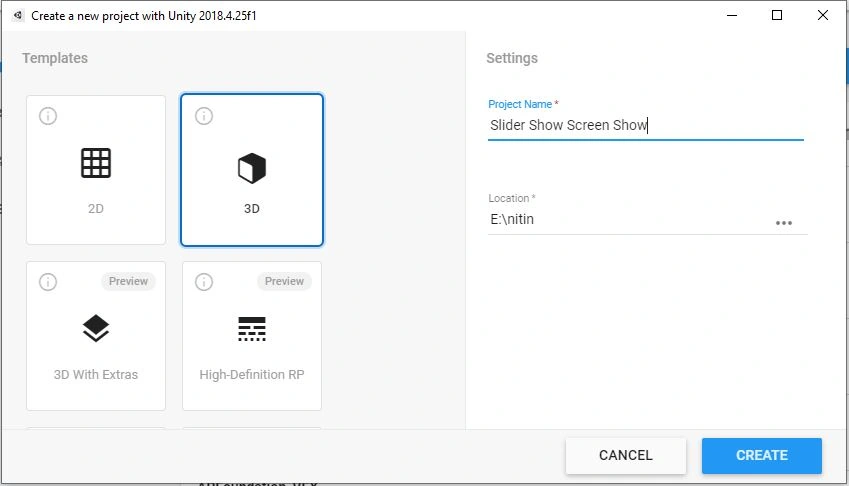

Create a New Project


Create The Slider Show Screen Space On Button Click Using C# Script In Untiy


Create the Panel


if a canvas is already present in the Hierarchy, right click the canvas and select UI > Panel.

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

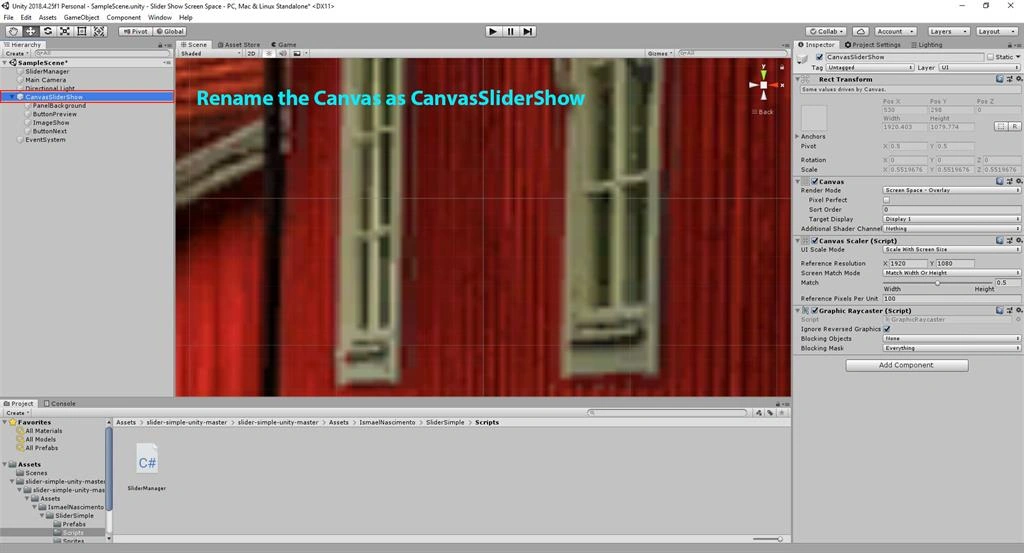

Rename the Canvas as CanvasSliderShow in Scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

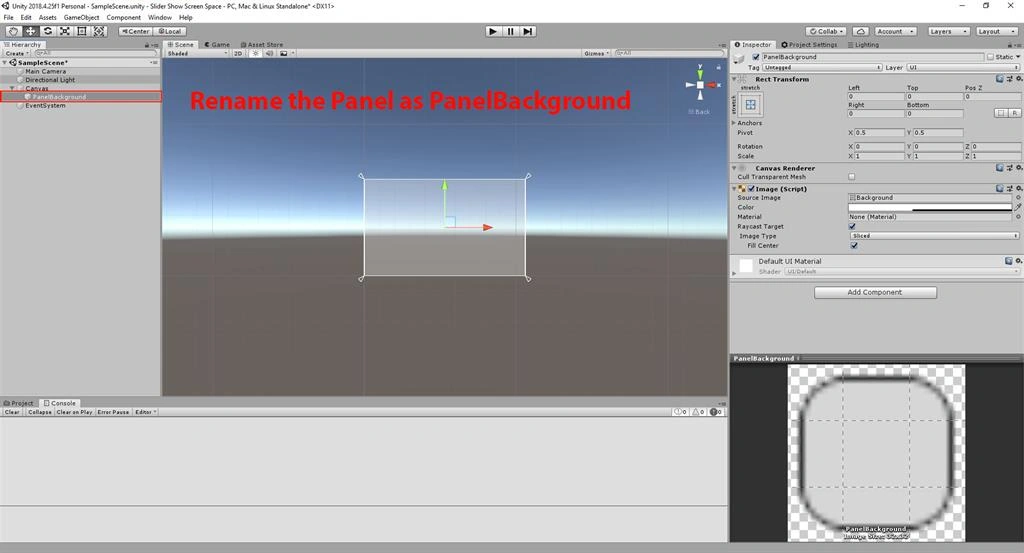

Rename the Panel as PanelBackGround in Scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy


Create the Button

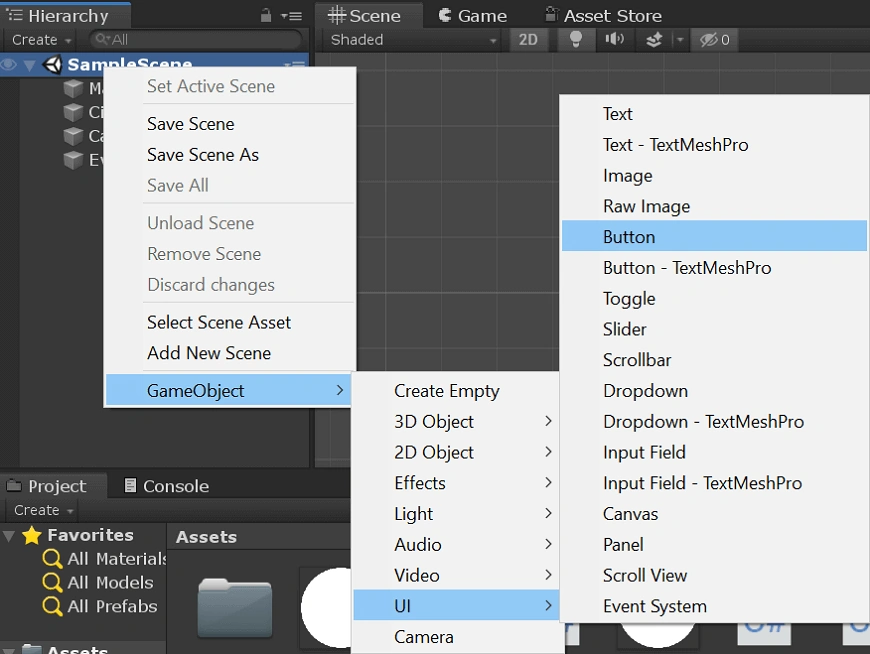

if a canvas is already present in the Hierarchy, right click the canvas and select UI > Button.

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

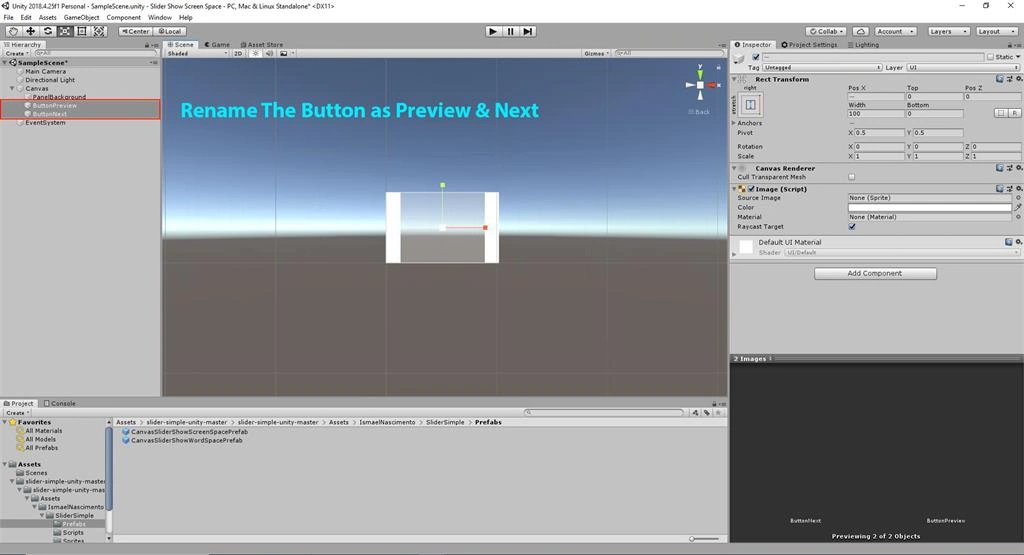

Rename the Button as Preview & Next in Scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy


Create the Image

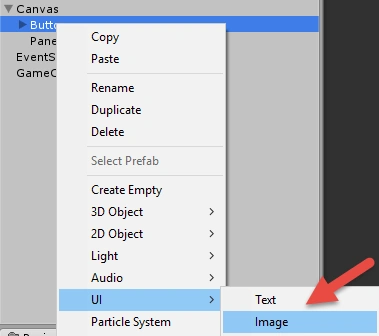

If a canvas is already present in the Hierarchy, right click the canvas and select UI > Image.

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

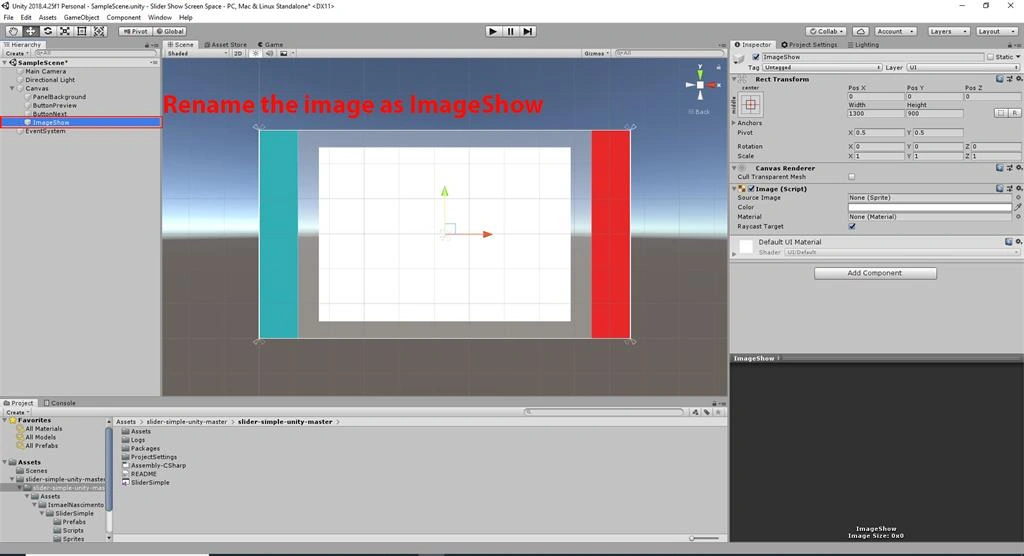

Rename the Image as ImageShow in scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy


Create The Folder

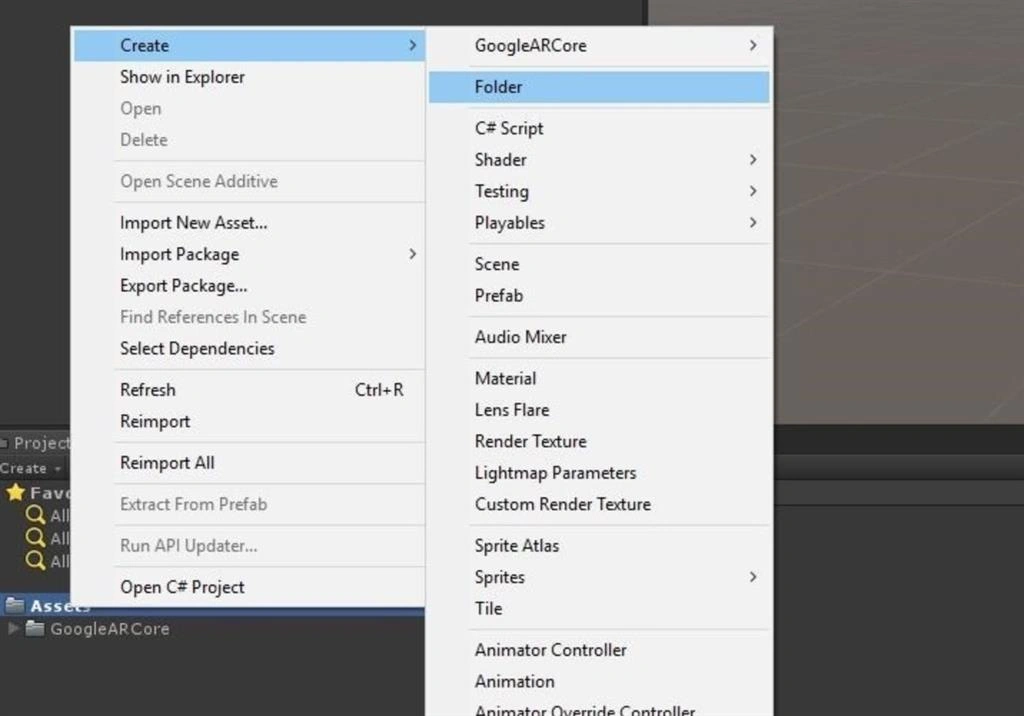

Right-click on Assets. Select Create >> Folder.

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

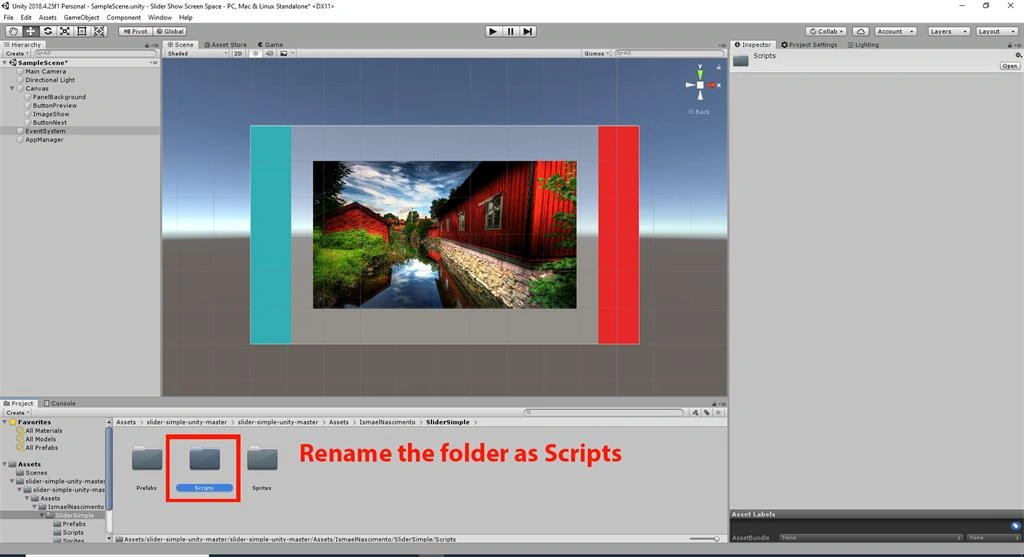

Rename the Folder as Script in Scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy


Create the Script

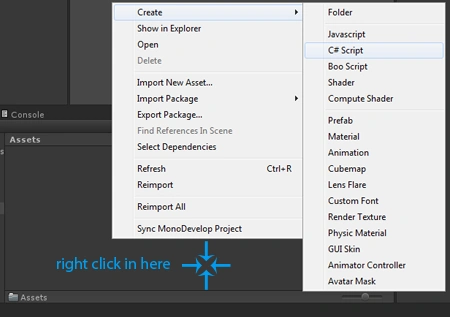

Right-click on Assets. Select Create >> C# script

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

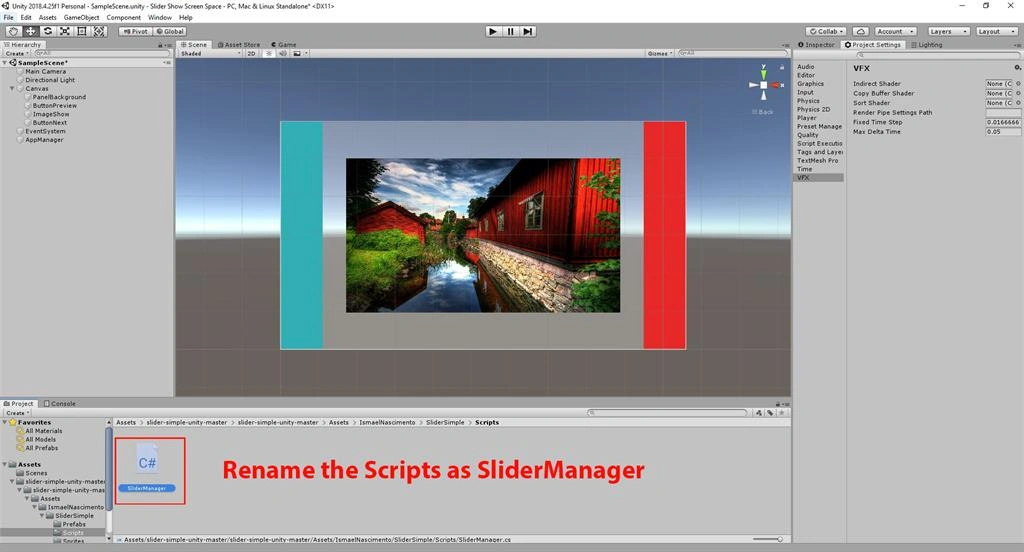

Rename the Scripts as SliderManager in Scene View.

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

Double click on the SliderManager script. Write the code as shown below,
  1. using System.Collections.Generic;
  2. using UnityEngine;
  3. using UnityEngine.UI;
  4. namespace IsmaelNascimento {
  5.     public class SliderManager: MonoBehaviour {
  6.         #region VARIABLES[SerializeField] private Button btnPrev;
  7.         [SerializeField] private Image imgShow;
  8.         [SerializeField] private Button btnNext;
  9.         [Space(10)]
  10.         [SerializeField] private List < Sprite > imagesForShow;
  11.         private int indexImagesForShow;
  12.         #endregion
  13.         #region METHODS_MONOBEHAVIOUR
  14.         private void Start() {
  15.             btnPrev.onClick.AddListener(OnButtonPrevClicked);
  16.             btnNext.onClick.AddListener(OnButtonNextClicked);
  17.         }
  18.         #endregion
  19.         #region METHODS_PRIVATE
  20.         private void OnButtonPrevClicked() {
  21.             indexImagesForShow--;
  22.             if (indexImagesForShow < 0) {
  23.                 indexImagesForShow = imagesForShow.Count - 1;
  24.             }
  25.             imgShow.sprite = imagesForShow[indexImagesForShow];
  26.         }
  27.         private void OnButtonNextClicked() {
  28.             indexImagesForShow++;
  29.             if (indexImagesForShow > imagesForShow.Count - 1) {
  30.                 indexImagesForShow = 0;
  31.             }
  32.             imgShow.sprite = imagesForShow[indexImagesForShow];
  33.         }
  34.         #endregion
  35.     }
  36. }
Save the program

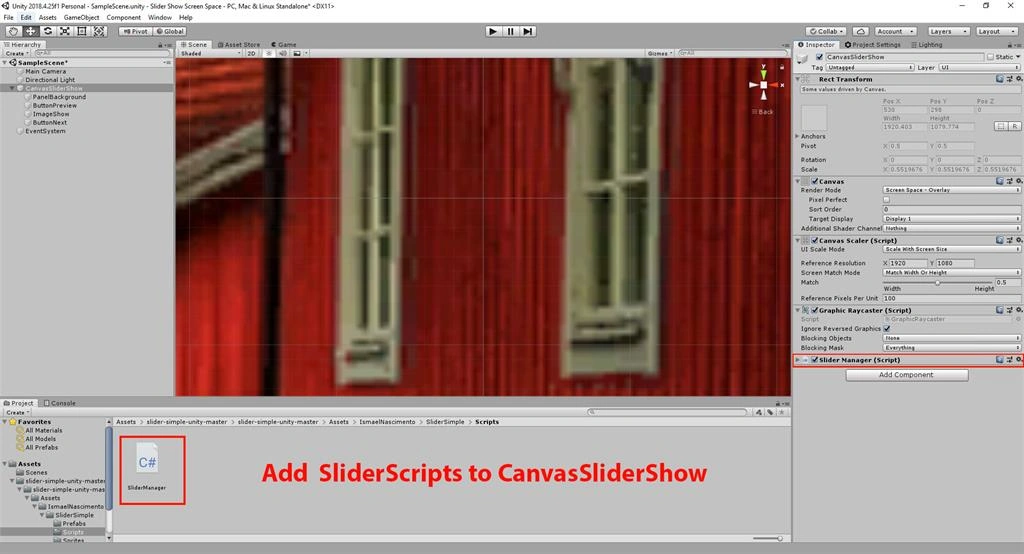

Drag and drop the SliderManager script onto the CanvasSliderShow

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

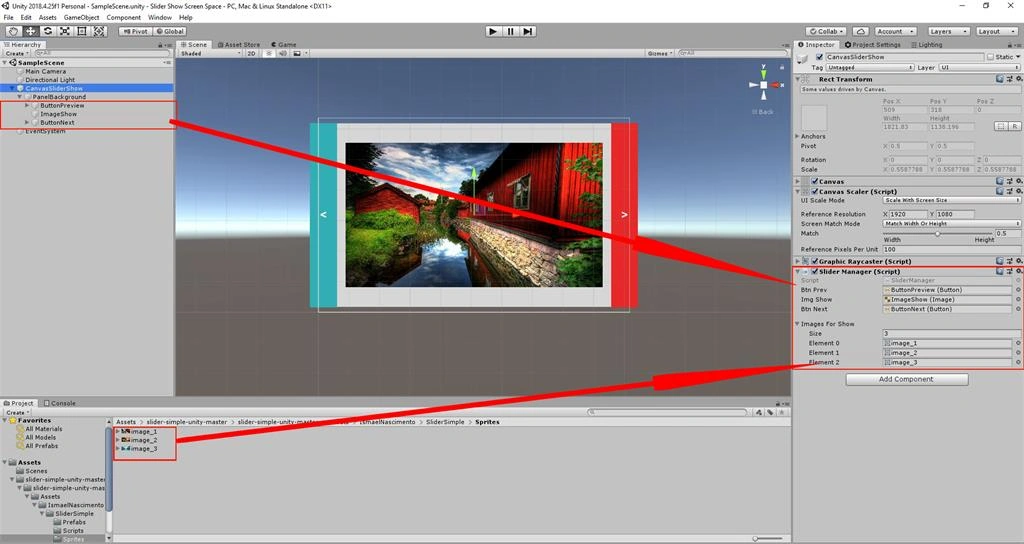

Drag and Drop Button & Image to CanvasSliderShow

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

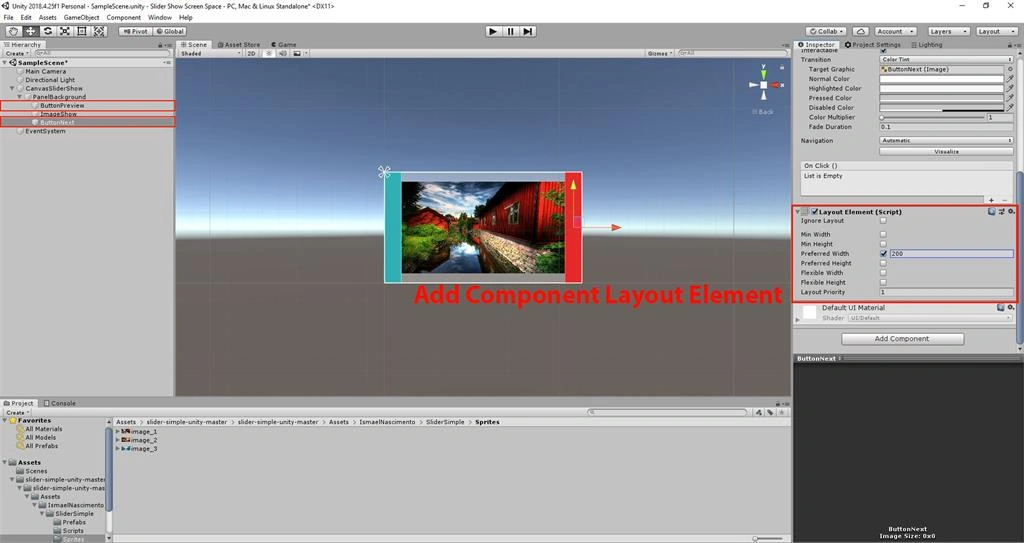

Select Button Preview & Add Component Layout Element in Scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

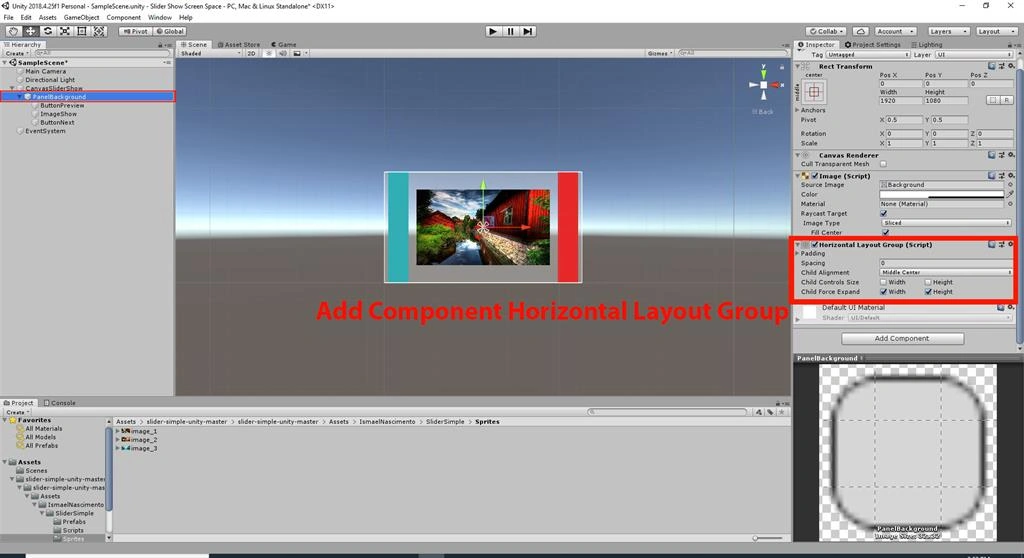

Select Panel BackGround Add Component Hprizontal Layout Group in Scene View

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

On Button Click Start The Slider Show Screen Show Using C# Scripts In Unity

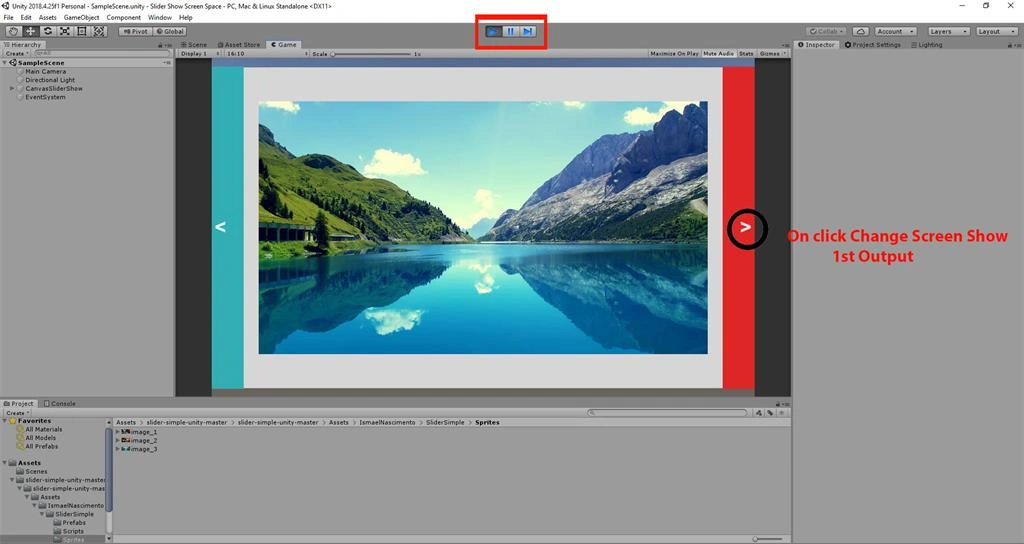

First Output

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

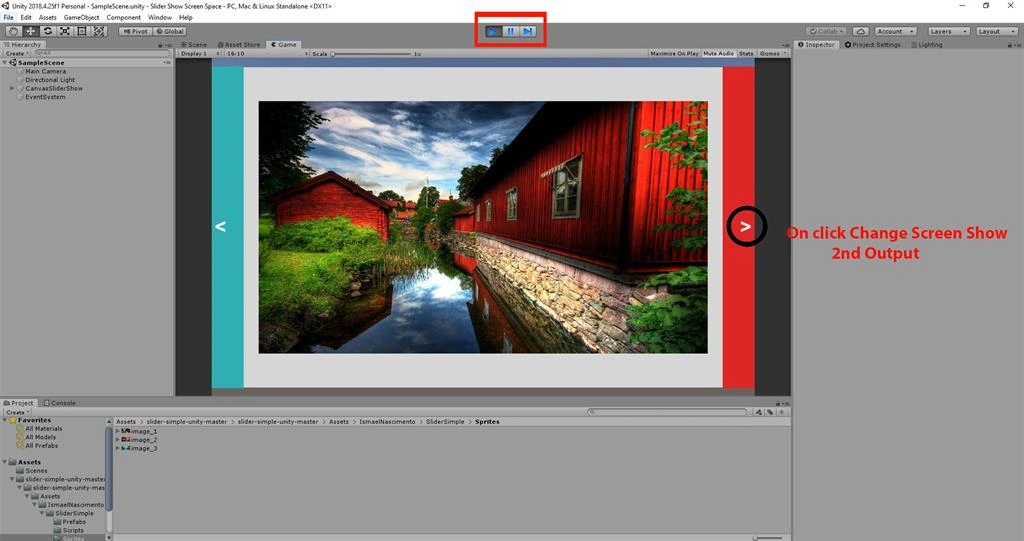

Second Output 2nd

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy

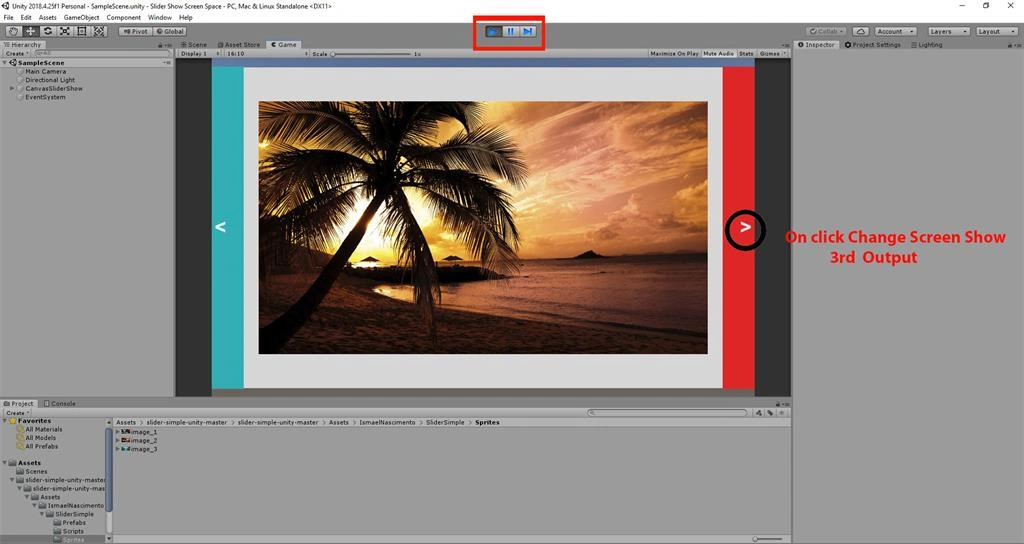

Third Output

Create The Slider Show Screen Space On Button Click Using C# Script In Untiy


Summary


I hope you understood how to create a Slider Show Screen Show on a button click using C# scripts in Unity.
