Deploy A Web App In Azure Using Eclipse

Introduction

In this article, I will explain how to deploy a web app in Azure using Eclipse. To learn about what eclipse  IDE is and its usage you can refer to this link.

Prerequisites

  • A jdk(java developer kit ) v1.7 or later.
  • Eclipse IDE of JEE of neon or later version of it. It can be downloaded from the following link
  • Azure SDK kit, it can be downloaded and installed from link.
  • Apache Tomcat (local server for eclipse).
  • Azure Toolkit for eclipse and you can visit this article for installing in eclipse.
  • An active Azure subscription.

Create a web application using Eclipse

Step 1

Open Eclipse and click Menu->File->Dynamic web project.

Eclipse Dynamic web project

Step 2

Provide a name for your project and click Finish.

Eclipse Dynamic web project

Step 3

In the left side of eclipse project explorer view, Right-click your project and select->web content, select new and then click JSP file.

Eclipse Dynamic web project

Step 4

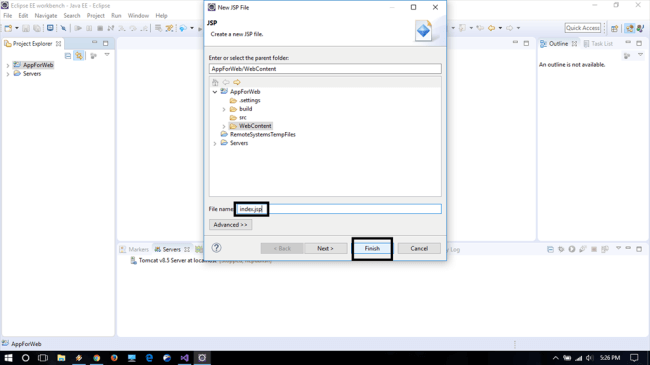

In JSP file dialog, name the file index.JSP & click finish.

Eclipse Dynamic web project

Step 5

The index.JSP file will be opened in Eclipse, in the text to display "web app_publish" within the existing <body> element tag as shown and save it.

Eclipse Dynamic web project

Azure web deployment service from Eclipse

Step 6

In Project Explorer, right click project name

Step 7

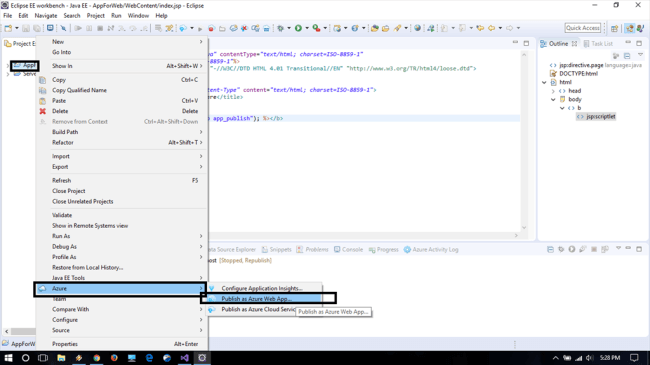

Click the Azure option and then click publish as Azure web app.

 publish as Azure web app

Step 8

Before publishing as cloud service make sure you have installed azure SDK tool.

Step 9

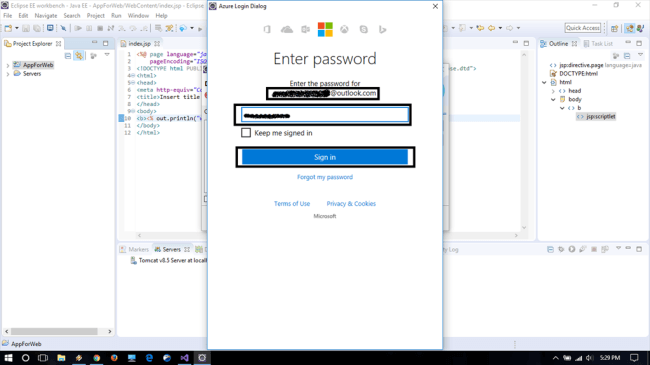

you will be directed to login into your Azure account.



Step 10

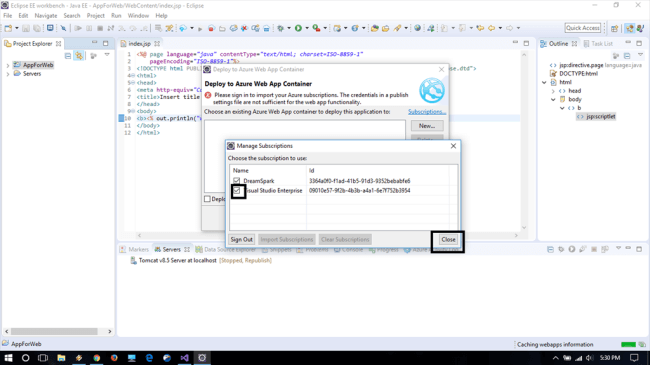

After logging into azure portal a management of subscriptions window will appear and you can select the two subscriptions or you can select anyone and click close.

Azure Manage Subscription

Step 11

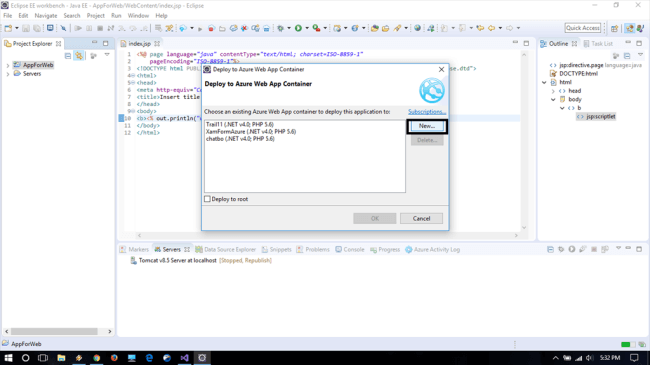

In the deployment to Azure web window click new button to choose web app container, by default the web app container will be an empty box. (since I have created some web container for my previous apps, so in this article I would like to select a new web app container).

web app container

Step 12

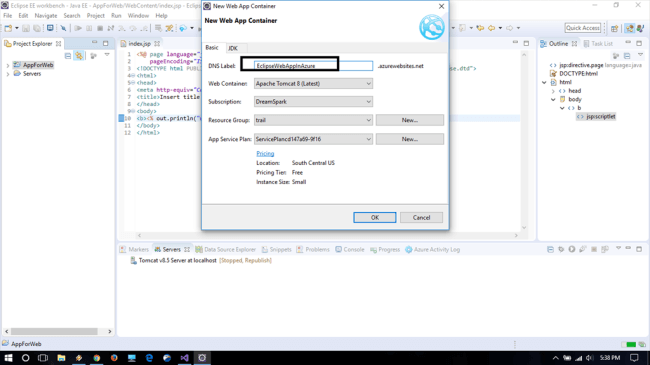

The New Web App Container window dialog box will appear. Enter a DNS label for your Web App Container, this will be the host URL for your web app in Azure. ( the name must be available and conform to Azure web app naming).

web app container

Step 13

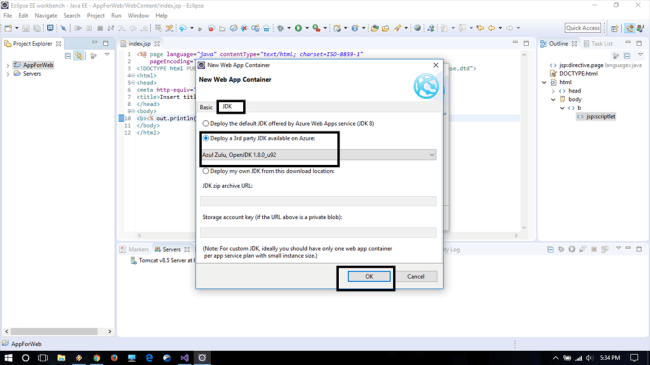

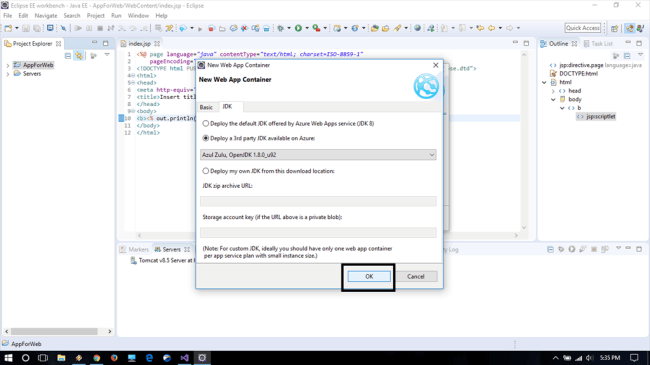

For specifying JDK for web app, click the JDK tab, and select Deploy a 3rd party JDK available on Azure (This option will allow you to choose from the list of JDKs which are provided by Azure). We can select default option but the distribution of Java 8 version will be deployed by Azure automatically to your web app container as your JVM. We can specify a different version & distribution of the JVM for Web App. The default option will deploy a recent distribution of Java 8, and click OK.

web app container

 web app container

Step 14

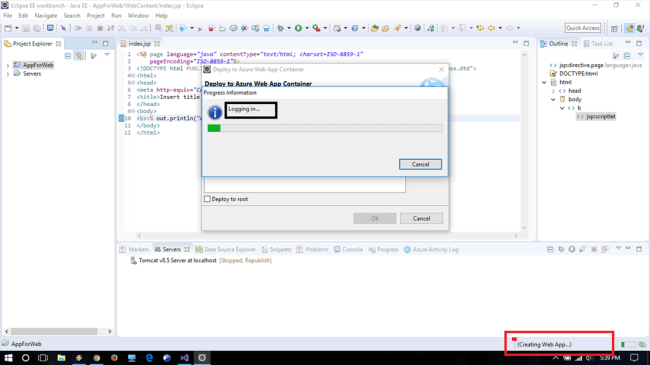

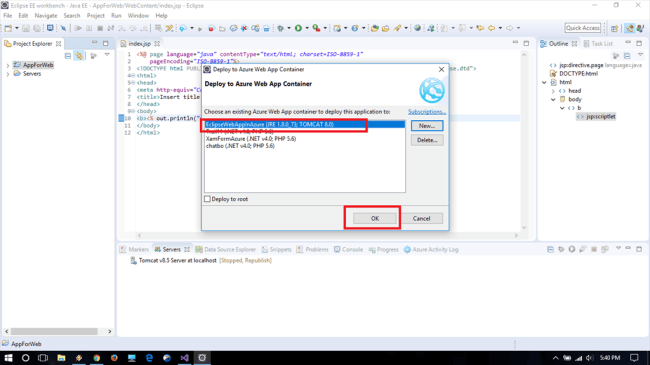

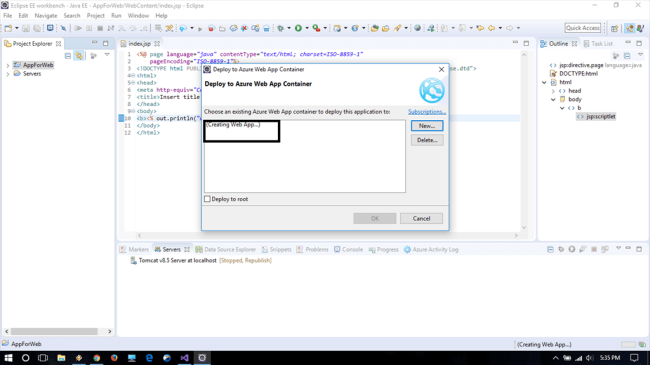

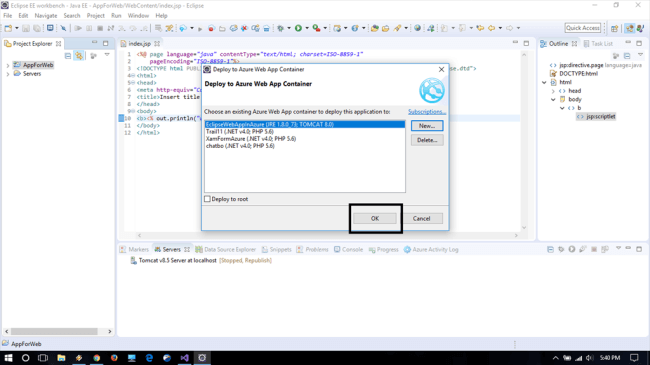

We can see a message of creation and deployment of application to web app container.

Azure web app container

 Azure web app container

 Azure web app container

Azure web app container

Step 15

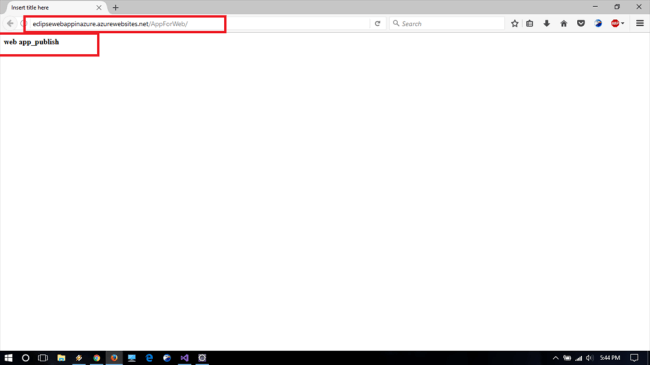

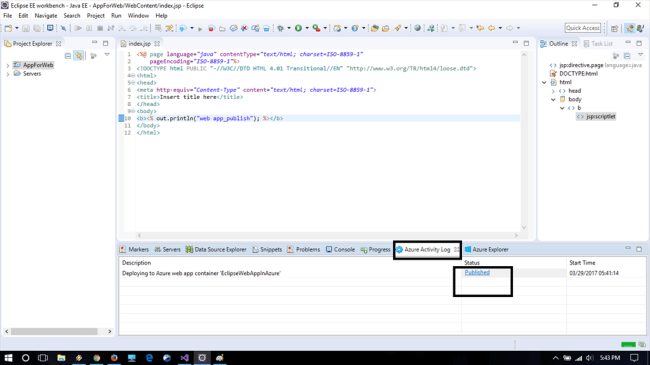

In Azure activity log, status will be displayed as published by clicking the published link and a new browser will be opened and will display the message.



Step 16

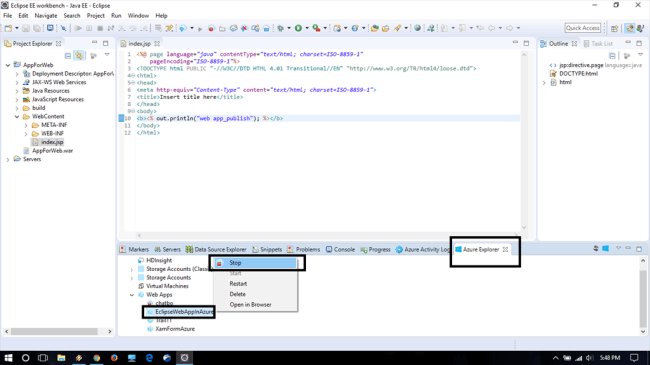

If you want to stop the running process click Azure explorer as shown in the screen and double click the web apps. Right click the web app. click Stop.



I hope this article will be useful.

Thank you.
