Display Images Using Model Binder in Backbone.js

Introduction

In this article we will use the model binder in backbone.js. In this tutorial we will display images on a button click using model binding.

In this tutorial you will see a row of a table bound to the collection.

Here we need the following JavaScript files:

Now let's see how the collection binder works.

First we need to create an application.

Start Visual Studio 2013.
From the Start window select "New Project".
Select "Installed" -> "Template" -> "Visual C#" -> "Web" -> "Visual Studio2012" and select as in the following:

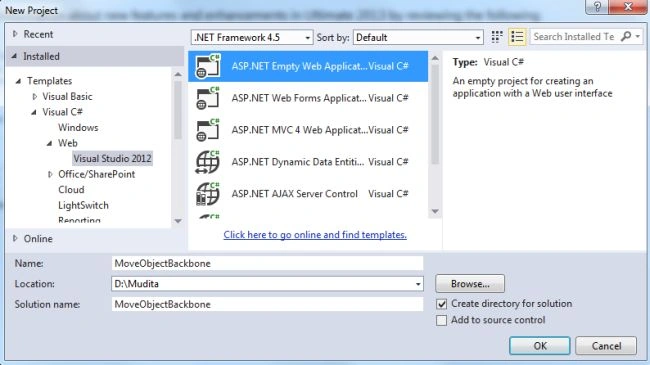

Create Web Application

Click on the "OK" button.

Now add the HTML page to the project.

In the Solution Explorer.
Right-click on the project and select "Add" -> "HTML Page".

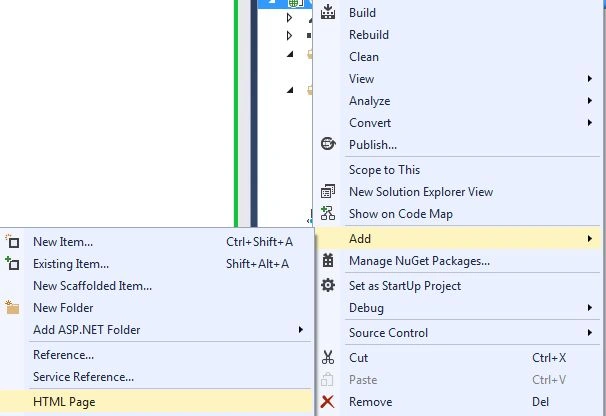

Add HTML Page

Change the Name.

Change Name

Then click on the "OK" button.

Add the following code:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">

<head>

<title>Bind to img src attribute</title>

$().ready(function () {

model = new Backbone.Model();

ImageArray = ['images/img1.png',

'images/img2.png'];

model.bind('change', function () {

$('#imgmodel').html(JSON.stringify(model.toJSON()));

});

model.trigger('change');

ViewClass = Backbone.View.extend({

_modelBinder: #ff0000,

events: {

'click #button': '_onButtonClick'

initialize: function () {

this._modelBinder = new Backbone.ModelBinder();

render: function () {

var html = '<button id="button">Click</button> Load images through model Binder.<br><br>';

var bindings = {};

var Nameofimage

for (var i = 0; i < ImageArray.length; i++) {

Nameofimage = 'image' + i;

html += 'Image ' + i + ' : ' + '<img name="' + Nameofimage + '"/><br>';

bindings[Nameofimage] = { selector: '[name=' + Nameofimage + ']', elAttribute: 'src' };

}

this.$el.html(html);

this._modelBinder.bind(this.model, this.el, bindings);

return this;

_onButtonClick: function () {

for (var i = 0; i < ImageArray.length; i++) {

var data = {};

data['image' + i] = ImageArray[i];

model.set(data);

}

});

view = new ViewClass({ model: model });

$('#viewContent').append(view.render().el);

});

</script>

</head>

<body>

<br>

Bind Images with the Model<br>

<br>

Model data:

<hr>

<br>

</body>

</html>

Now execute the application:

Display Model bind page

Now click on the button. It will then display all the images bound to the model.

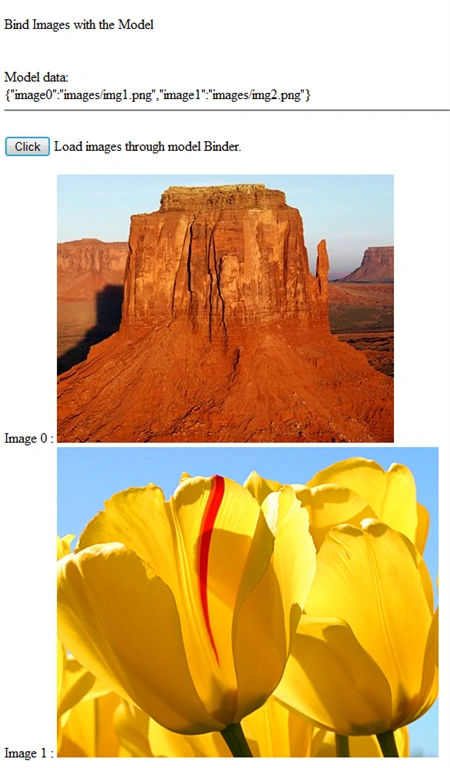

display bind images
