Getting Started

  1. Create a new Project. Open Visual Studio 2012.
  2. Go to "File" => "New" => "Project...".
  3. Select "Web" in installed templates.
  4. Select "ASP.NET MVC 4 Web Application".
  5. Enter the Name and choose the location.
  6. Click "OK".

I would recommend reading this article first to learn about Entity Framework: http://www.c-sharpcorner.com/UploadFile/raj1979/unit-testing-in-mvc-4-using-entity-framework/

Once you configure Entity Framework your window will look like this:


This is my database layout:


The following is the controller code:

  1. using MVCDropDownCascadingSample.Models;
  2. StudentEntities _studentEntities = new StudentEntities();
  3. public ActionResult Index()
  4. {
  5. ViewBag.Names = _studentEntities.Names.ToList();
  6. ViewBag.Classes = _studentEntities.Classes.ToList();
  7. ViewBag.Marks = _studentEntities.Marks.ToList();
  8. return View();
  9. }
  10. /// <summary>
  11. /// Loads all classes based on student id
  12. /// </summary>
  13. /// <param name="studentId"></param>
  14. /// <returns></returns>
  15. private IList<Class> GetClasses(int studentId)
  16. {
  17. return _studentEntities.Classes.Where(m => m.StudentId == studentId).ToList();
  18. }
  19. /// <summary>
  20. /// load all marks based on class id
  21. /// </summary>
  22. /// <param name="classId"></param>
  23. /// <returns></returns>
  24. private IList<Mark> GetMarks(int classId)
  25. {
  26. return _studentEntities.Marks.Where(c => c.MarkId == classId).ToList();
  27. }
  28. /// <summary>
  29. /// Filter classes based on student id
  30. /// </summary>
  31. /// <param name="studentid"></param>
  32. /// <returns></returns>
  33. [AcceptVerbs(HttpVerbs.Get)]
  34. public JsonResult LoadClassesByStudentId(string studentid)
  35. {
  36. var classesList = this.GetClasses(Convert.ToInt32(studentid));
  37. var classesData = classesList.Select(m => new SelectListItem()
  38. {
  39. Text = m.ClassName,
  40. Value = m.ClassId.ToString(),
  41. });
  42. return Json(classesData, JsonRequestBehavior.AllowGet);
  43. }
  44. /// <summary>
  45. /// filter marks based on class id
  46. /// </summary>
  47. /// <param name="classid"></param>
  48. /// <returns></returns>
  49. [AcceptVerbs(HttpVerbs.Get)]
  50. public JsonResult LoadMarksByClassId(string classid)
  51. {
  52. var marksList = this.GetMarks(Convert.ToInt32(classid));
  53. var marksData = marksList.Select(c => new SelectListItem()
  54. {
  55. Text = c.MarksCount,
  56. Value = c.MarkId.ToString(),
  57. });
  58. return Json(marksData, JsonRequestBehavior.AllowGet);
  59. }

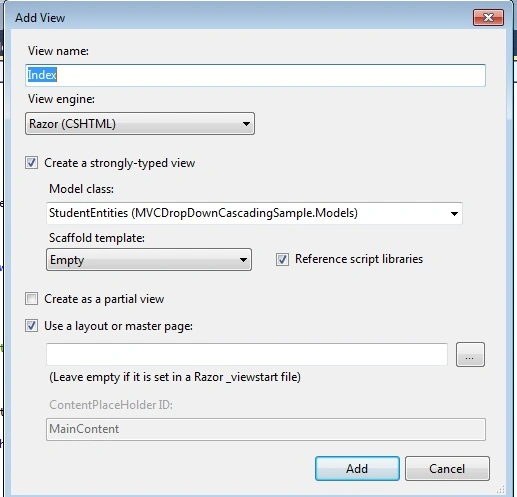

Now add a new Razor View, as in the following:


The following is the code and scripts for the view:

  1. @model MVCDropDownCascadingSample.Models.StudentEntities
  2. @{
  3. ViewBag.Title = "Index";
  4. }
  5. <h2>Students</h2>
  6. <script type="text/javascript">
  7. $(document).ready(function () {
  8. $("#ddlNames").change(function () {
  9. var studentId = $(this).val();
  10. $.getJSON("../Home/LoadClassesByStudentId", { studentid: studentId },
  11. function (classesData) {
  12. var select = $("#ddlClasses");
  13. select.empty();
  14. select.append($('<option/>', {
  15. value: 0,
  16. text: "Select a Class"
  17. }));
  18. $.each(classesData, function (index, itemData) {
  19. alert(classesData);
  20. alert(itemData);
  21. select.append($('<option/>', {
  22. value: itemData.Value,
  23. text: itemData.Text
  24. }));
  25. });
  26. });
  27. });
  28. $("#ddlClasses").change(function () {
  29. var classId = $(this).val();
  30. $.getJSON("../Home/LoadMarksByClassId", { classid: classId },
  31. function (marksData) {
  32. var select = $("#ddlMarks");
  33. select.empty();
  34. select.append($('<option/>', {
  35. value: 0,
  36. text: "Select a Mark"
  37. }));
  38. $.each(marksData, function (index, itemData) {
  39. select.append($('<option/>', {
  40. value: itemData.Value,
  41. text: itemData.Text
  42. }));
  43. });
  44. });
  45. });
  46. });
  47. </script>
  48. <p>
  49. @Html.DropDownListFor(Model => Model.Names, new SelectList(ViewBag.Names as System.Collections.IEnumerable, "StudentId", "Name1"),
  50. "Select a Student", new { id = "ddlNames" })
  51. </p>
  52. <p>
  53. @Html.DropDownListFor(Model => Model.Classes, new SelectList(Enumerable.Empty<SelectListItem>(), "ClassId", "ClassName"),
  54. "Select a Class", new { id = "ddlClasses" })
  55. </p>
  56. <p>
  57. @Html.DropDownListFor(Model => Model.Marks, new SelectList(Enumerable.Empty<SelectListItem>(), "MarkId", "MarksCount"),
  58. "Select a Mark", new { id = "ddlMarks" })
  59. </p>

Now let's run the application to see the output; the following shows what the output looks like:


When a student class is clicked, the student should load based on the student's id, like this:


Now click on any class name; then the marks should load into the marks dropdownlist, as in:
