Easily Record An Audio In Angular 16 And Save It As WAV Format

Introduction

The full form of WAV is "Waveform Audio File Format." It is standard for storing an audio bitstream on computers. Developed by IBM and Microsoft, the WAV format is based on the Resource Interchange File Format (RIFF), and it is commonly used for storing uncompressed audio data on Windows systems. The files saved in the WAV format keep high quality and can be large, as they have detailed audio information.

To record audio from a microphone in an Angular application, you can make use of the native “MediaRecorder”.

The “MediaRecorder” interface of the Web API supplies functionality to easily record media. It is designed to record audio or video directly from the browser, simplifying the process of capturing media streams.

Key features and capabilities of MediaRecorder:

Media Capture: It allows you to record audio and video streams directly from the user's camera and microphone.

Stream Recording: It records the media streams in chunks, which can be processed or saved individually.

Different Media Formats: It supports various audio and video formats, depending on the browser and system.

Event Handling: It supplies several event handlers such as ondataavailable, onstart, onstop, onerror, and more to handle various aspects of recording.

Configurable: You can configure the MediaRecorder by setting options like the MIME type of the recording, the bits per second, and so on.

“MediaRecorder” is widely supported in modern browsers, but the specific codecs and formats supported can vary between browsers. It is always good practice to check the compatibility and capabilities of the browser at runtime.

The “MediaRecorder” interface simplifies the process of recording audio and video in web applications, providing developers with a powerful tool to capture and work with media streams directly in the browser.

By default, MediaRecorder captures audio as webm format. If you want a genuine WAV file and not just a webm file with a .wav extension, you'll have to convert the recorded audio buffer to WAV format.

Create an Angular 16 application using Angular CLI (Command Line Interface)

Use the command below to create a new Angular application.

ng new AudioRecorder

We can choose the default Routing and Styling options and continue further.

Create a helper class to convert audio buffer to WAV format.

audio-helper.ts

export function bufferToWave(abuffer:any, len:number) {
    let numOfChan = abuffer.numberOfChannels,
      length = len * numOfChan * 2 + 44,
      buffer = new ArrayBuffer(length),
      view = new DataView(buffer),
      channels = [],
      i, sample,
      offset = 0,
      pos = 0;

    // write WAVE header
    setUint32(0x46464952);                         // "RIFF"
    setUint32(length - 8);                         // file length - 8
    setUint32(0x45564157);                         // "WAVE"

    setUint32(0x20746d66);                         // "fmt " chunk
    setUint32(16);                                 // length = 16
    setUint16(1);                                  // PCM (uncompressed)
    setUint16(numOfChan);
    setUint32(abuffer.sampleRate);
    setUint32(abuffer.sampleRate * 2 * numOfChan); // avg. bytes/sec
    setUint16(numOfChan * 2);                      // block-align
    setUint16(16);                                 // 16-bit (hardcoded in this demo)

    setUint32(0x61746164);                         // "data" - chunk
    setUint32(length - pos - 8);                   // chunk length

    // write interleaved data
    for (i = 0; i < abuffer.numberOfChannels; i++)
      channels.push(abuffer.getChannelData(i));

    while (pos < length) {
      for (i = 0; i < numOfChan; i++) {             // interleave channels
        sample = Math.max(-1, Math.min(1, channels[i][offset])); // clamp
        sample = (0.5 + sample < 0 ? sample * 32768 : sample * 32767)|0; // scale to 16-bit signed int
        view.setInt16(pos, sample, true);          // write 16-bit sample
        pos += 2;
      }
      offset++                                     // next source sample
    }

    // create Blob
    return new Blob([buffer], { type: "audio/wav" });

    function setUint16(data:any) {
      view.setUint16(pos, data, true);
      pos += 2;
    }

    function setUint32(data:any) {
      view.setUint32(pos, data, true);
      pos += 4;
    }
  }

We can create an Audio Recording service and integrate the helper function in the service.

ng g s AudioRecording

audio-recording-service.ts

import { Injectable } from '@angular/core';
import { Subject } from 'rxjs';
import { bufferToWave } from './audio-helper';

@Injectable({
  providedIn: 'root'
})
export class AudioRecordingService {
  private chunks: any[] = [];
  private mediaRecorder: any;
  private audioContext: AudioContext = new AudioContext();
  private audioBlobSubject = new Subject<Blob>();

  audioBlob$ = this.audioBlobSubject.asObservable();

  async startRecording() {
    if (this.audioContext.state === 'suspended') {
      await this.audioContext.resume();
    }

    const stream = await navigator.mediaDevices.getUserMedia({ audio: true });
    this.mediaRecorder = new MediaRecorder(stream);
    this.mediaRecorder.ondataavailable = (event: any) => this.chunks.push(event.data);
    this.mediaRecorder.start();
  }

  async stopRecording() {
    if (this.mediaRecorder) {
      this.mediaRecorder.onstop = async () => {
        const audioData = await new Blob(this.chunks).arrayBuffer();
        const audioBuffer = await this.audioContext.decodeAudioData(audioData);
        const wavBlob = bufferToWave(audioBuffer, audioBuffer.length);
        this.audioBlobSubject.next(wavBlob);
        this.chunks = [];
      };

      this.mediaRecorder.stop();
    }
  }
}

Update the component html file with code below.

app.component.html

<div class="content" role="main">

  <div class="row justify-content-center pt-2 pb-2">
    <button title="Click here to start recording action" class="btn-mic w-auto" (click)="startRecording()"
      *ngIf="!isRecording" style="margin-right: 3px;">
      <img src="../../assets/mic.png" />
    </button>
    <button title="Click here to stop recording" class="btn-stop w-auto" (click)="stopRecording()" *ngIf="isRecording"
      style="margin-right: 3px;">
      <img src="../../assets/stop.png" />
    </button>
  </div>
  <audio #audioPlayer controls style="margin: 10px;"></audio>
  <a *ngIf="audioURL" [href]="audioURL" download="recorded_audio.wav">Download last reecorded Audio</a>
</div>

Update the component class file with code below.

app.component.ts

import { ChangeDetectorRef, Component, ElementRef, OnInit, ViewChild } from '@angular/core';
import { AudioRecordingService } from './audio-recording.service';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit {
  isRecording = false;
  audioURL: string | null = null;
  @ViewChild('audioPlayer') audioPlayer!: ElementRef<HTMLAudioElement>;

  constructor(private audioRecordingService: AudioRecordingService, private cd: ChangeDetectorRef) { }

  ngOnInit() {
    this.audioRecordingService.audioBlob$.subscribe(blob => {
      this.audioURL = window.URL.createObjectURL(blob);
      this.audioPlayer.nativeElement.src = this.audioURL;
      this.cd.detectChanges();
    });
  }

  startRecording() {
    this.isRecording = true;
    this.audioRecordingService.startRecording();
  }

  stopRecording() {
    this.isRecording = false;
    this.audioRecordingService.stopRecording();
  }
}

Update the component stylesheet with code below.

app.component.css

:host {
    font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif, "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol";
    font-size: 14px;
    color: #333;
    box-sizing: border-box;
    -webkit-font-smoothing: antialiased;
    -moz-osx-font-smoothing: grayscale;
}

h1,
h2,
h3,
h4,
h5,
h6 {
    margin: 8px 0;
}

p {
    margin: 0;
}

.spacer {
    flex: 1;
}

.toolbar {
    position: absolute;
    top: 0;
    left: 0;
    right: 0;
    height: 60px;
    display: flex;
    align-items: center;
    background-color: #1976d2;
    color: white;
    font-weight: 600;
}

.toolbar img {
    margin: 0 16px;
}

.toolbar #twitter-logo {
    height: 40px;
    margin: 0 8px;
}

.toolbar #youtube-logo {
    height: 40px;
    margin: 0 16px;
}

.toolbar #twitter-logo:hover,
.toolbar #youtube-logo:hover {
    opacity: 0.8;
}

.content {
    display: flex;
    margin: 10px auto 10px;
    padding: 0 16px;
    max-width: 960px;
    flex-direction: column;
    align-items: center;
}

svg.material-icons {
    height: 24px;
    width: auto;
}

svg.material-icons:not(:last-child) {
    margin-right: 8px;
}

.card svg.material-icons path {
    fill: #888;
}

.card-container {
    display: flex;
    flex-wrap: wrap;
    justify-content: center;
    margin-top: 16px;
}

.card {
    all: unset;
    border-radius: 4px;
    border: 1px solid #eee;
    background-color: #fafafa;
    height: 40px;
    width: 200px;
    margin: 0 8px 16px;
    padding: 16px;
    display: flex;
    flex-direction: row;
    justify-content: center;
    align-items: center;
    transition: all 0.2s ease-in-out;
    line-height: 24px;
}

.card-container .card:not(:last-child) {
    margin-right: 0;
}

.card.card-small {
    height: 16px;
    width: 168px;
}

.card-container .card:not(.highlight-card) {
    cursor: pointer;
}

.card-container .card:not(.highlight-card):hover {
    transform: translateY(-3px);
    box-shadow: 0 4px 17px rgba(0, 0, 0, 0.35);
}

.card-container .card:not(.highlight-card):hover .material-icons path {
    fill: rgb(105, 103, 103);
}

.card.highlight-card {
    background-color: #1976d2;
    color: white;
    font-weight: 600;
    border: none;
    width: auto;
    min-width: 30%;
    position: relative;
}

.card.card.highlight-card span {
    margin-left: 60px;
}

svg#rocket {
    width: 80px;
    position: absolute;
    left: -10px;
    top: -24px;
}

svg#rocket-smoke {
    height: calc(100vh - 95px);
    position: absolute;
    top: 10px;
    right: 180px;
    z-index: -10;
}

a,
a:visited,
a:hover {
    color: #1976d2;
    text-decoration: none;
}

a:hover {
    color: #125699;
}

.terminal {
    position: relative;
    width: 80%;
    max-width: 600px;
    border-radius: 6px;
    padding-top: 45px;
    margin-top: 8px;
    overflow: hidden;
    background-color: rgb(15, 15, 16);
}

.terminal::before {
    content: "\2022 \2022 \2022";
    position: absolute;
    top: 0;
    left: 0;
    height: 4px;
    background: rgb(58, 58, 58);
    color: #c2c3c4;
    width: 100%;
    font-size: 2rem;
    line-height: 0;
    padding: 14px 0;
    text-indent: 4px;
}

.terminal pre {
    font-family: SFMono-Regular, Consolas, Liberation Mono, Menlo, monospace;
    color: white;
    padding: 0 1rem 1rem;
    margin: 0;
}

.circle-link {
    height: 40px;
    width: 40px;
    border-radius: 40px;
    margin: 8px;
    background-color: white;
    border: 1px solid #eeeeee;
    display: flex;
    justify-content: center;
    align-items: center;
    cursor: pointer;
    box-shadow: 0 1px 3px rgba(0, 0, 0, 0.12), 0 1px 2px rgba(0, 0, 0, 0.24);
    transition: 1s ease-out;
}

.circle-link:hover {
    transform: translateY(-0.25rem);
    box-shadow: 0px 3px 15px rgba(0, 0, 0, 0.2);
}

footer {
    margin-top: 8px;
    display: flex;
    align-items: center;
    line-height: 20px;
}

footer a {
    display: flex;
    align-items: center;
}

.github-star-badge {
    color: #24292e;
    display: flex;
    align-items: center;
    font-size: 12px;
    padding: 3px 10px;
    border: 1px solid rgba(27, 31, 35, .2);
    border-radius: 3px;
    background-image: linear-gradient(-180deg, #fafbfc, #eff3f6 90%);
    margin-left: 4px;
    font-weight: 600;
}

.github-star-badge:hover {
    background-image: linear-gradient(-180deg, #f0f3f6, #e6ebf1 90%);
    border-color: rgba(27, 31, 35, .35);
    background-position: -.5em;
}

.github-star-badge .material-icons {
    height: 16px;
    width: 16px;
    margin-right: 4px;
}

svg#clouds {
    position: fixed;
    bottom: -160px;
    left: -230px;
    z-index: -10;
    width: 1920px;
}

.btn-mic,
.btn-stop {
    cursor: pointer;
    background: none;
    border: none;
    padding: 0;
}

.btn-mic img,
.btn-stop img {
    width: 30px;
    opacity: 0.5;
}

/* Responsive Styles */
@media screen and (max-width: 767px) {

    .card-container>*:not(.circle-link),
    .terminal {
        width: 100%;
    }

    .card:not(.highlight-card) {
        height: 16px;
        margin: 8px 0;
    }

    .card.highlight-card span {
        margin-left: 72px;
    }

    svg#rocket-smoke {
        right: 120px;
        transform: rotate(-5deg);
    }
}

@media screen and (max-width: 575px) {
    svg#rocket-smoke {
        display: none;
        visibility: hidden;
    }
}

We can run the application with SSL enabled.

ng serve --ssl

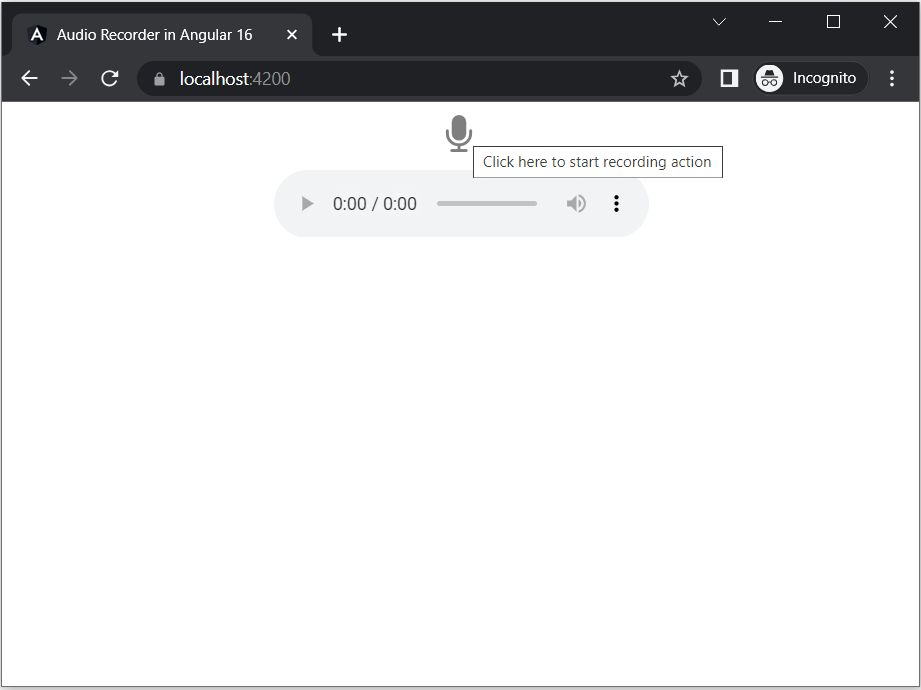

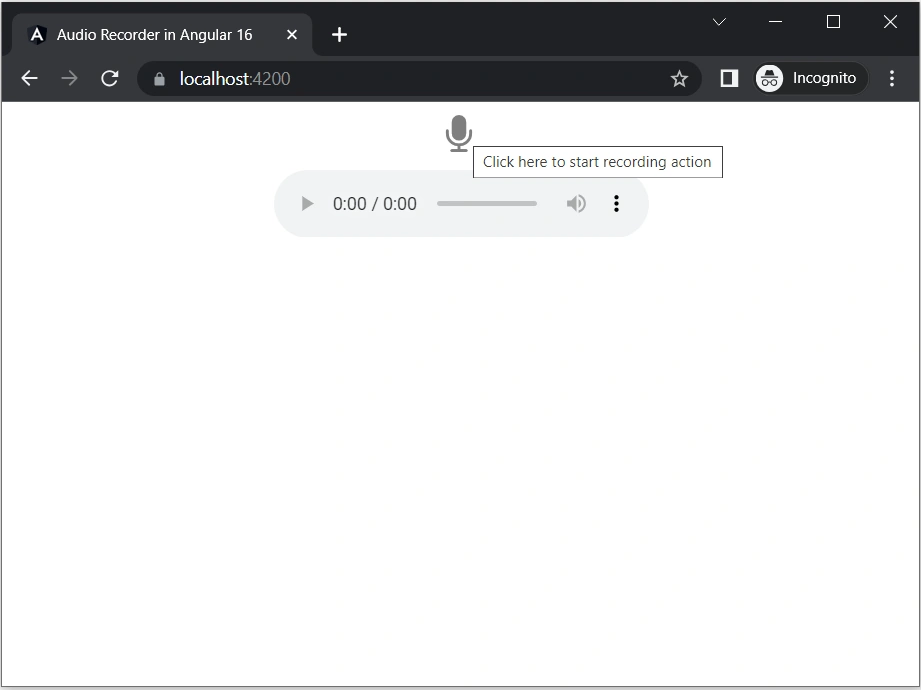

Open your browser and navigate to https://localhost:4200/. You should be able to start and stop recording, and then download the recorded audio file.

Always keep in mind that accessing microphone requires user permissions. Make sure we test this functionality in a secure context (like https:// or localhost) to ensure that the browser does not block access to the microphone due to security constraints.

After clicking the start button, the recording will be started, and the stop button will be placed instead of the start button.

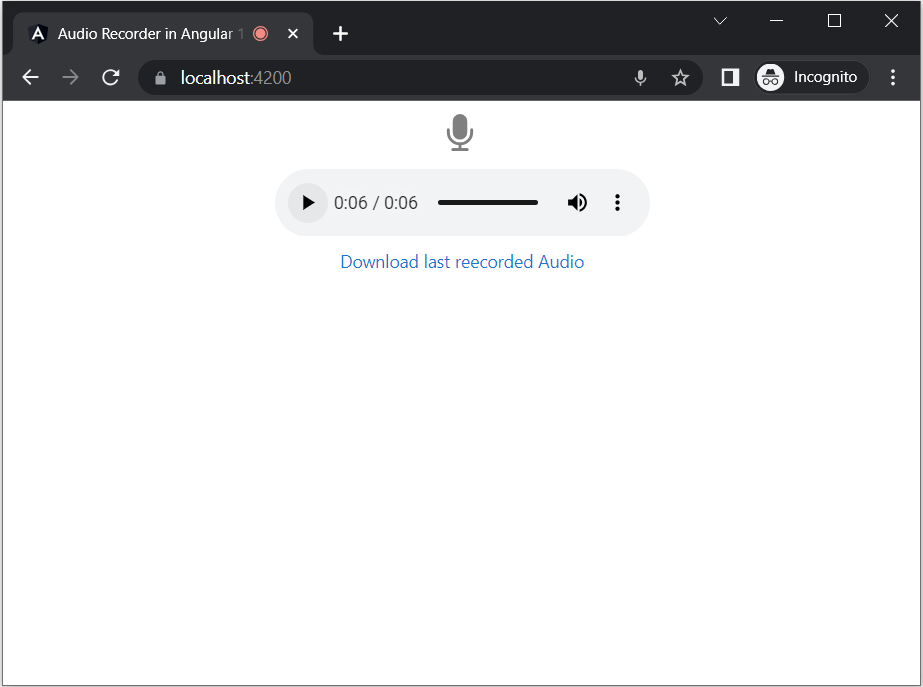

After clicking the stop button, audio preview will be available, and you can click download button to download converted audio as WAV format.



Conclusion

In this post, we have seen how to create an Angular 16 application to record audio from Microphone. We have used native MediaRecorder interface of browser to capture audio from user. By default, MediaRecorder creates audio as webm format. Hence, we have created a helper class to convert webm to wav format. We have also created an Audio Recording service to start and stop audio from MediaRecorder. We have given a hyper link to download the converted audio file in the UI.
