In this application, AdvancedList's DataSource property is bound to a list of objects that are instances of the Product class.

Product class contains several properties that match the columns of our table in the database: Name, Description, NextRevision, Image, Checked and ID.

The list of items is filled in LoadData() method of MasterForm class. (You can see the code of this method and download the whole source code of this application through link that is attached at the end of the article). Now, when the items are loaded and stored in the List, all you need to do is set DataSource property of AdvancedList to this List.

Designing templates for items

The design of each row in the AdvancedList is controlled by a template. In the simplest case you will have one template for all items, or one "normal" and one "selected" template. The template itself consists of multiple cells. The purpose of each cell is to visualize a property of the row data.

To bind a cell to the underlying data object property, simply set its CellSource.

There are special cells for text, images, links etc. You can even create your own. Each cell can be positioned within its row and designed by changing its font, fore and background color, alignment etc.

Both a Visual Studio integrated designer and a standalone application are provided for creating templates.

Enhancing the Advanced list

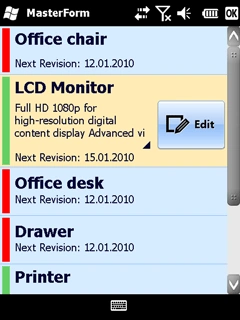

The sample application can be run even on devices that do not have a barcode reader. Since without the barcode scanner there would not be a way of editing an item, I have provided a "workaround" by placing a ButtonCell into the AdvancedList template. Now I handle the ButtonClick event, where I can show the DetailsForm the same way as it is shown when the barcode reader reads the correct barcode id of an item.

Last thing that I want to demonstrate on this form is the CustomizeCell property of the cell. If you set this property true and register a method to handle the AdvancedList CustomizeCell event, you can change the appearance of this cell at the runtime. In the application, I used the same approach to show the user whether the item was checked or not. In the CustomizeCell handler I inspect the Checked property of the underlying object (that is passed to this method as a parameter) and if it is false I set the background of this cell Red.

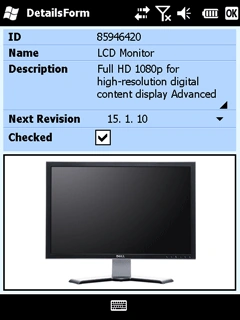

DetailsForm

This form contains two controls, a standard PictureBox and Resco DetailView. Further, it has a property Product storing an instance of the Product class passed to this form from MasterForm. And what we want to do on this form? Edit the item, which means creating a layout for editing and that means a lot of textboxes, checkboxes, datetime pickers, labels, etc. - all in all a heap of work. Fortunately, it all can be done with Resco DetailView as simple as creating one page with editable items that matches properties of the object that is passed to DataSource property of the DetailView. We don't need to bother with methods that will update the content of the Product object; all is handled by the DetailView on its own.

As for the AdvancedList, there is also a standalone application that allows you to design the layout of pages in the DetailView. Do note that DetailView provides a lot of functionality that is out of scope of this article, such as data validation, paging...

BarCode manager class

This class is a wrapper around Symbol.Barcode class and serves also as a demonstration of how easy the handling of barcode input can be. When instantiated, the inner Symbol.Barcode object is created and an event handler listening to notifications from the scanner is attached to its ReadNotify event.

In your code you can simply instantiate BarCodeMgr class, add the HandleData event so you can process inputs from the scanner. In this application, I handle the input as follows. When the data from reader is obtained, I check the list of products for the matching ID (provided as parameter of HandleData handler).When a matching product is found, it is shown using the DetailsForm.

Conclusion

As you can see, the data presentation and manipulation can be greatly simplified by using powerful controls such as the AdvancedList and DetailView. Of course there is a lot of functionality that these controls provide and which was not stated in this article. Have I noticed that the whole list of items can be touch-scrolled by a finger? Enough of words, the best way to find out how easy is creating a powerful mobile application with the Resco MobileForms Toolkit is to try it yourself.

Download the source code of this application and find out: http://www.resco.net/developer/downloads/barcode.zip
