Introduction

First, we will create a simple WCF service that will return data of the Employees table as a DataTable object. Then we will consume this WCF service in a Console application.

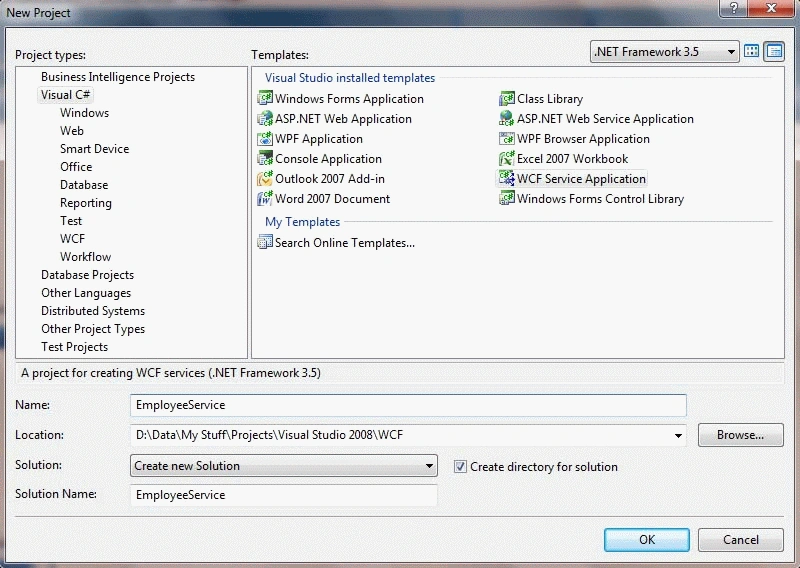

Step 1: Create a new WCF Service Application named EmployeeSercice

Step 2: In IService1.cs, add ServiceContract and OperationContract:

[ServiceContract]
public interface IService1
{
[OperationContract]
Employee GetEmployee();
}

Then add DataContract and DataMember:

[DataContract]
public class Employee
{
[DataMember]
public DataTable EmployeeTable
{
get;
set;
}
}

In this article, I am leaving binding to the default, wsHttpBinding.

Step 3: Add the following code in the Service1.svc.cs file inside Service1 class:

public class Service1 : IService1
{
string ConString = ConfigurationManager.ConnectionStrings["ConString"].ConnectionString;
SqlConnection con;
SqlCommand cmd;
SqlDataAdapter sda;
DataTable dt;
Employee emp = new Employee();
public Employee GetEmployee()
{
using (con = new SqlConnection(ConString))
{
cmd = new SqlCommand("SELECT EmployeeID, FirstName, LastName FROM Employees", con);
sda = new SqlDataAdapter(cmd);
dt = new DataTable("Paging");
sda.Fill(dt);
emp.EmployeeTable = dt;
return emp;
}
}
}

We have created our WCF service that will return Employees data as a DataTable. Now its time to consume this service in a Console application.

Step 4: Add a new Console Application named EmployeeServiceClient by right-clicking on the Solution Explorer and selecting Add -> New Project.

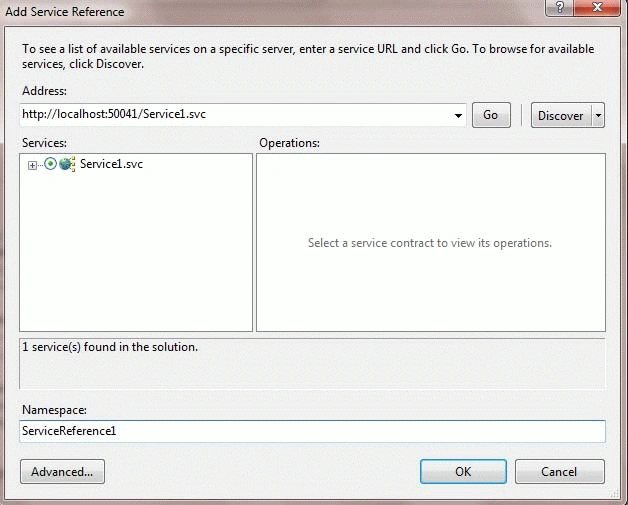

Step 5: Add a Service Reference to the WCF service in the Console Application using Add Service Reference dialog box.

Right-click on the Console Application and select Add Service Reference:

Step 6: Write following code in the Main function of the Console Application:

static void Main(string[] args)
{
ServiceReference1.Service1Client MyClient =
new ServiceReference1.Service1Client();
ServiceReference1.Employee emp =
new ServiceReference1.Employee();
emp = MyClient.GetEmployee();
DataTable dt = new DataTable();
dt = emp.EmployeeTable;
Console.WriteLine(" EmpID".PadRight(10)
+"FirstName".PadRight(10)
+"LastName".PadRight(10));
Console.WriteLine("---------------------------------------");
for (int i = 1; i < dt.Rows.Count; i++)
{
Console.WriteLine(dt.Rows[i][0].ToString().PadRight(10)+
dt.Rows[i][1].ToString().PadRight(10) +
dt.Rows[i][2].ToString().PadRight(10));
}
Console.WriteLine(dt.Rows.Count.ToString());
Console.ReadKey();
}

Step 7: In App.Config, change the maxReceivedMessageSize attribute value to maximum inside the Binding element to handle large tables.

maxReceivedMessageSize="2147483647"

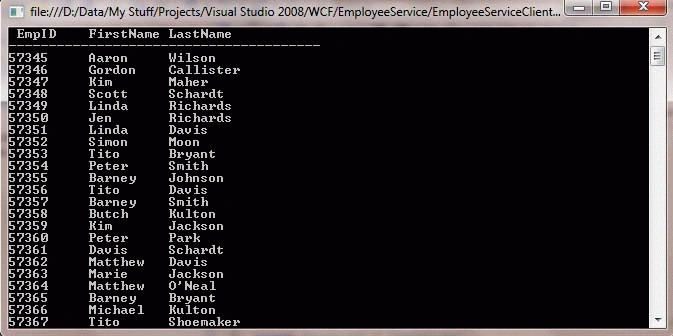

Output
