Implement An Azure Files SMB Access On-Premises With Private Endpoints

Introduction

Azure files share SMB Access with on-premises Windows AD authentication allows you to access file shares in Azure with NTFS access control. By default, that access won’t extend to an on-prem network over VPN or Express Route. In this article, I teach how to extend access to Azure Files share with Windows AD to an on-premises network using Private Endpoints.

Implement an Azure Files SMB Access On-premises with Private Endpoints

Prerequisites

  • Active Directory Domain Services in On-prem
  • On-prem to Azure connectivity via VPN S2S
  • Azure storage account
  • Azure Private Endpoint

Step 1

This is my domain controller from On-prem

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 2

Click here Create An Storage Account In Azure (c-sharpcorner.com) to create the storage account

Step 3

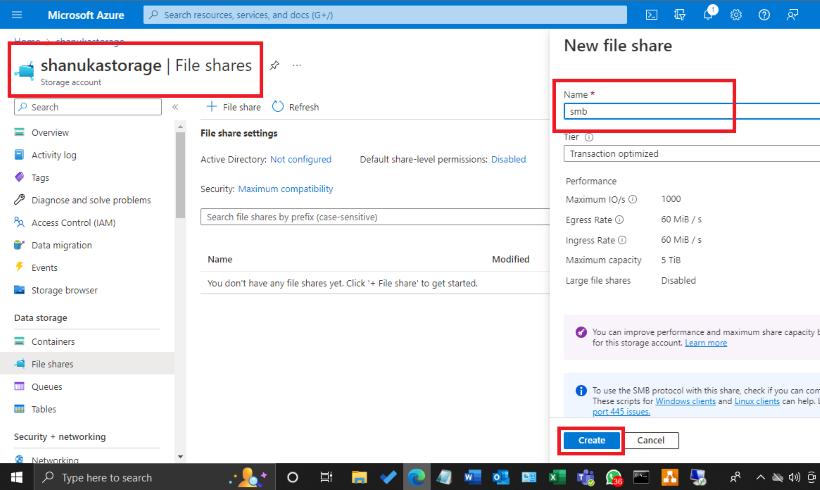

In your storage account create on a file share and make it SMB elevated contributor

Implement an Azure Files SMB Access On-premises with Private Endpoints

Implement a Private Endpoint for the azure storage account

Step 1

Select storage your account and create Private Endpoint Networking>Private endpoint connection

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 2

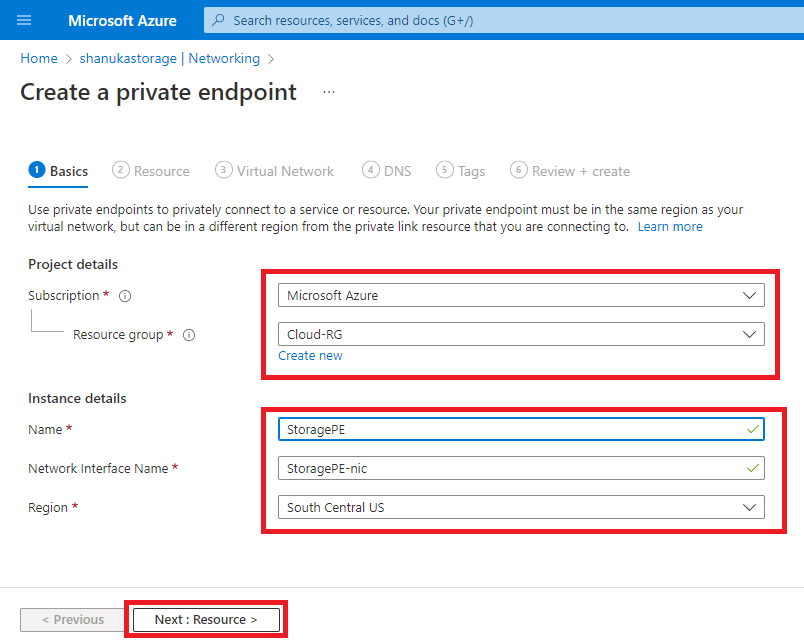

Following the appropriate steps.

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 3

In the resource tab Select file and Next.

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 4

Following the steps for the demo purpose, I have kept the private IP dynamic. If you want you can change it.

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 5

I'm going to use the default DNS name for the demo purpose.

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 6

Just review + create

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 7

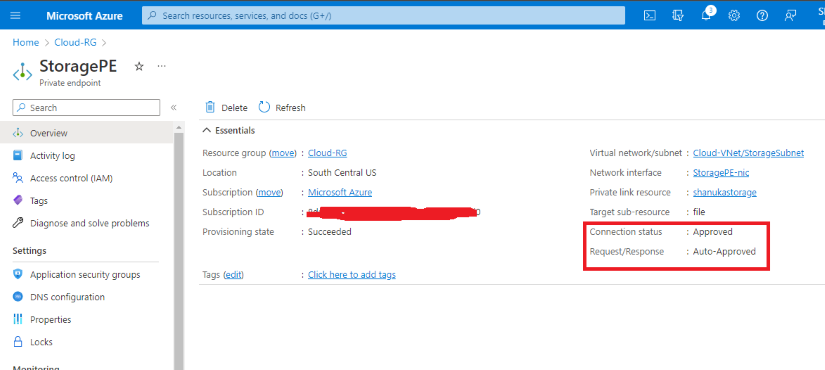

Finally created my private endpoint successfully

Implement an Azure Files SMB Access On-premises with Private Endpoints

Note: When I try to resolve via name but still resolved by Public IP

Implement an Azure Files SMB Access On-premises with Private Endpoints

Implement DNS host record for storage account in DNS server

Step 1

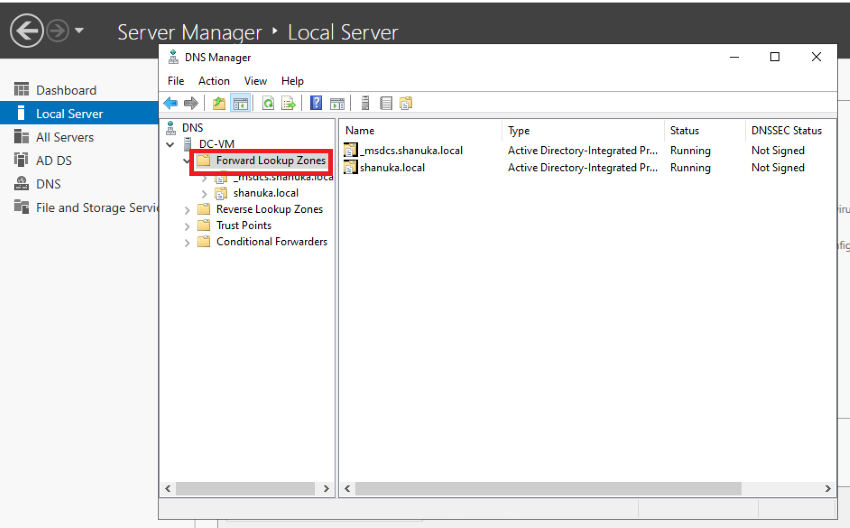

Open the DNS server and Select Forward Lookup Zones

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 2

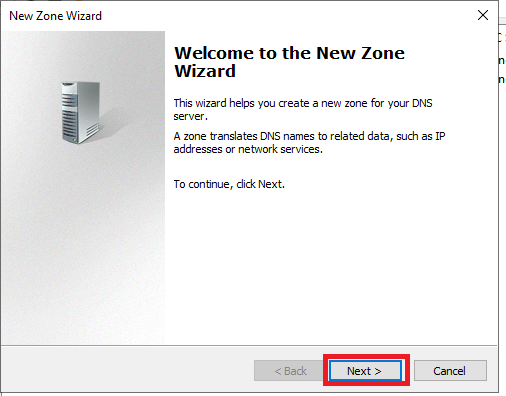

Click Next to create

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 3

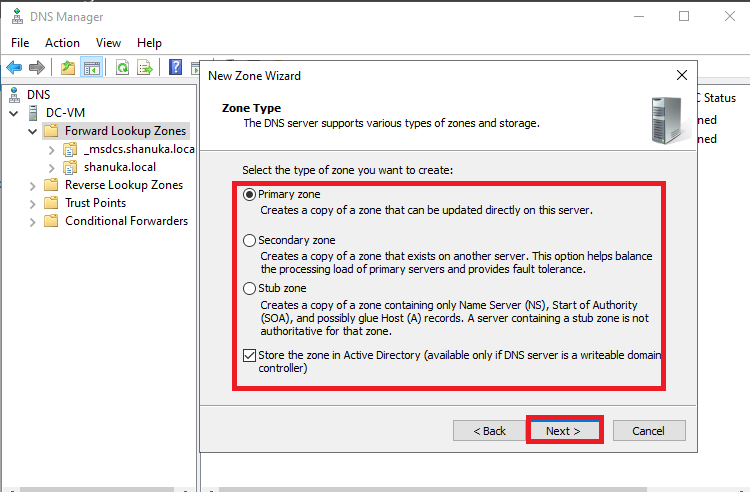

Select zone and Next

Implement an Azure Files SMB Access On-premises with Private Endpoints

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 4

Copy the privatelink.file.core.windows.net

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 5

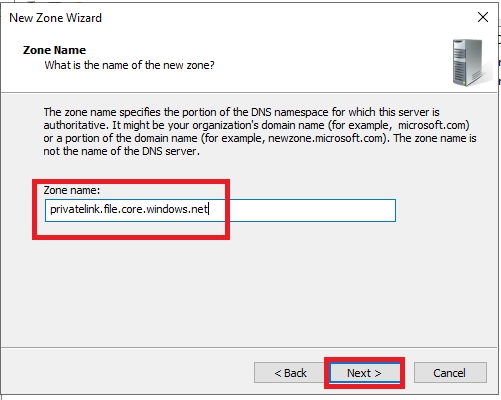

Past on the Zone Name

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 6

Successfully created my Forward lookup zone

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 7

Create a New Host record on your private link zone

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 7

The host record name should be your storage account name in my case I shanukastorage and IP address which you created a private endpoint for storage. and Add Host

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 8

Successfully created my Host record.

Implement an Azure Files SMB Access On-premises with Private Endpoints

Step 9

Finally, my DNS Name resolution is working fine, and You can test via nslookup cmdlet

Successfully name resolved by private IP

Implement an Azure Files SMB Access On-premises with Private Endpoints

Important

If you want to mount the azure file share drive to your domain-joined computer using AD credentials you can do it.

Conclusion

This article taught us how to Implement Azure file share with integrated on-prem AD authentication. And if you have any questions don't hesitate to get in touch with me.

Thanks.
