Insert, Update and Delete Data With DataGridView in Windows Form Using WCF Service

Today, I have provided an article showing you how to Insert, Edit, Update, and Delete Data with DataGridView in Windows Form Using WCF Service from C# code. To Insert, Edit, Update, and Delete Data with DataGridView, we must do the following 3 things.

1. Create Database Table
2. Create WCF Service
3. Create Windows Forms Application

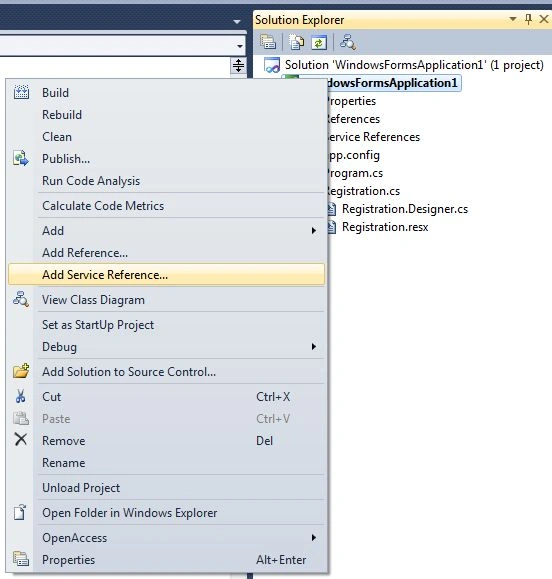

In the first step, we will create a table in SQL Server; after that, we create a simple function to insert, update, and delete data in a DataGridView control using a WCF service. In a web application, add a reference of the service to do the insert, update, and delete in the DataGridView control. Let's take a look at a practical example. The example application is developed in Visual Studio 2010 and SQL Server 2008.

Step 1. Creating Database Table

1. Database name: Registration
2. Database table name: RegistrationTable

RegistrationTable Table

Step 2. Creating WCF Service

Now you have to create a WCF Service

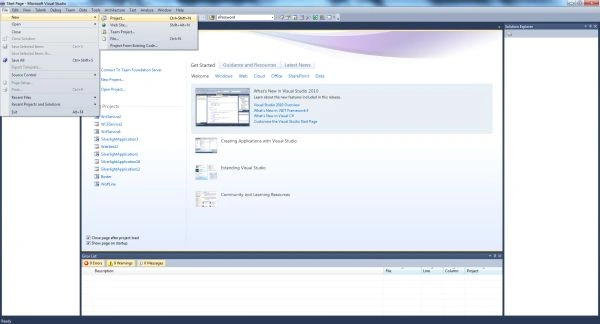

• Go to Visual Studio 2010

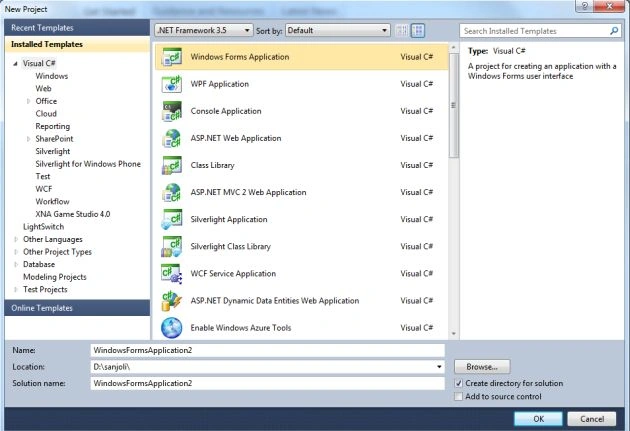

• New -> Select a project

Now click on the project select WCF Service Application and provide a name for the service.

Now click on the OK button. Then you will get the following 3 files in Solution Explorer.

1. IService.cs
2. Service. svc
3. Service.svc.cs

The following image shows the following files.

To insert data into the database you need to write the following code in the IService1.cs file which contains the two sections.

1. OperationContract
2. DataContract

The OperationContract section is used to add service operations and a DataContract is used to add types to the service operations.

Iservice1.cs File

Now we create a function in the OperationContract section of the Iservice1.cs file

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.Data;
using System.Data.SqlClient;
namespace WCFServiceForInsert
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        string InsertUserDetails(UserDetails userInfo);
        [OperationContract]
        DataSet SelectUserDetails();
        [OperationContract]
        bool DeleteUserDetails(UserDetails userInfo);
        [OperationContract]
        void UpdateRegistrationTable(UserDetails userInfo);
    }
    // Use a data contract as illustrated in the sample below to add composite types to service operations.
    [DataContract]
    public class UserDetails
    {
        private int userid;
        private string username;
        private string password;
        private string country;
        private string email;
        [DataMember]
        public int UserID
        {
            get { return userid; }
            set { userid = value; }
        }
        [DataMember]
        public string UserName
        {
            get { return username; }
            set { username = value; }
        }
        [DataMember]
        public string Password
        {
            get { return password; }
            set { password = value; }
        }
        [DataMember]
        public string Country
        {
            get { return country; }
            set { country = value; }
        }
        [DataMember]
        public string Email
        {
            get { return email; }
            set { email = value; }
        }
    }
}

Service. svc.cs File

In this file, we define the definition of the functions for insert, update, and delete.

Replace the code with the following

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.Data.SqlClient;
using System.Data;
namespace WCFServiceForInsert
{
    public class Service1 : IService1
    {
        public DataSet SelectUserDetails()
        {
            SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=registration;User ID=sa;Password=wintellect");
            con.Open();
            SqlCommand cmd = new SqlCommand("Select * from RegistrationTable", con);
            SqlDataAdapter sda = new SqlDataAdapter(cmd);
            DataSet ds = new DataSet();
            sda.Fill(ds);
            con.Close();
            return ds;
        }
        public void UpdateRegistrationTable(UserDetails userInfo)
        {
            SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=registration;User ID=sa;Password=wintellect");
            con.Open();
            SqlCommand cmd = new SqlCommand("update RegistrationTable set UserName=@UserName,Password=@Password,Country=@Country, Email=@Email where UserID=@UserID", con);
            cmd.Parameters.AddWithValue("@UserID", userInfo.UserID);
            cmd.Parameters.AddWithValue("@UserName", userInfo.UserName);
            cmd.Parameters.AddWithValue("@Password", userInfo.Password);
            cmd.Parameters.AddWithValue("@Country", userInfo.Country);
            cmd.Parameters.AddWithValue("@Email", userInfo.Email);
            cmd.ExecuteNonQuery();
            con.Close();
        }
        public bool DeleteUserDetails(UserDetails userInfo)
        {
            SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=registration;User ID=sa;Password=wintellect");
            con.Open();
            SqlCommand cmd = new SqlCommand("delete from RegistrationTable where UserID=@UserID", con);
            cmd.Parameters.AddWithValue("@UserID", userInfo.UserID);
            cmd.ExecuteNonQuery();
            con.Close();
            return true;
        }
        public string InsertUserDetails(UserDetails userInfo)
        {
            string Message;
            SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=registration;User ID=sa;Password=wintellect");
            con.Open();
            SqlCommand cmd = new SqlCommand("insert into RegistrationTable(UserName,Password,Country,Email) values(@UserName,@Password,@Country,@Email)", con);
            cmd.Parameters.AddWithValue("@UserName", userInfo.UserName);
            cmd.Parameters.AddWithValue("@Password", userInfo.Password);
            cmd.Parameters.AddWithValue("@Country", userInfo.Country);
            cmd.Parameters.AddWithValue("@Email", userInfo.Email);
            int result = cmd.ExecuteNonQuery();
            if (result == 1)
            {
                Message = userInfo.UserName + " Details inserted successfully";
            }
            else
            {
                Message = userInfo.UserName + " Details not inserted successfully";
            }
            con.Close();
            return Message;
        }
    }
}
