LRS Vs ZRS Vs GRS Vs RA-GRS in Azure

Let’s dive deeper into the concept of redundancy options in Azure Storage, specifically focusing on LRS (Locally Redundant Storage), ZRS (Zone-Redundant Storage), GRS (Geo-Redundant Storage), and RA-GRS (Read-Access Geo-Redundant Storage). These are critical for ensuring data durability and availability, key topics in the “Implement and manage storage” domain. I’ll explain each option with an easy definition, a detailed explanation, a real-world example tied to the MediaWorld scenario, and an analogy to make it relatable for a 10th-grade student. I’ll also clarify how they prevent data loss, their trade-offs, and how to apply them practically.

What Are Redundancy Options?

Redundancy in Azure Storage means keeping extra copies of your data to prevent loss if something goes wrong, like hardware failures, power outages, or natural disasters. Think of it as making backups of your homework so you don’t lose it if your laptop crashes. Azure offers different levels of redundancy, balancing cost, availability, and protection. The four main options—LRS, ZRS, GRS, and RA-GRS—differ in where and how many copies are stored.

1. Locally Redundant Storage (LRS)

  • Easy Definition: Keeps three copies of your data in one building (data center) in a single region.
  • Detailed Explanation: LRS replicates your data three times within the same physical data center (e.g., East US). These copies are stored on separate drives or servers to protect against hardware failures (e.g., a disk crash). It’s the cheapest and simplest option, but it offers the least protection—if the entire data center fails (e.g., due to a fire), all copies could be lost. Durability: 11 nines (99.999999999% chance data isn’t lost in a year). Use Case: Good for non-critical data or when cost is a priority.
  • Real-World Example (MediaWorld): MediaWorld stores draft podcast scripts (script.docx) in mediaworldstorage with LRS in East US. If a server in East US fails, two other copies keep the file safe—but if the whole East US data center floods, the scripts are gone.
  • Analogy: Like keeping three copies of your homework in different drawers in your bedroom. If your desk breaks, you’re fine, but if your house floods, all copies are lost.
  • Practical Flow (Sandbox): Create storage account > Select “Locally-redundant storage (LRS)” > Upload script.docx > Assume one server fails (data still safe).

2. Zone-Redundant Storage (ZRS)

  • Easy Definition: Keeps three copies of your data across different buildings (zones) in the same region.
  • Detailed Explanation: ZRS spreads three copies across three availability zones within one region (e.g., East US). An availability zone is a separate physical location (e.g., different buildings miles apart) with its own power, cooling, and networking. Protects against data center-level failures (e.g., a power outage in one zone) but not region-wide disasters (e.g., a hurricane hitting all of the East US). Durability: 12 nines (99.9999999999%). Use Case: Ideal for data needing higher availability within a region (e.g., active projects).
  • Real-World Example (MediaWorld): MediaWorld stores active video editing files (interview.mp4) with ZRS in East US. If one zone’s power goes out, the other two zones keep interview.mp4 accessible—no delays in editing.
  • Analogy: Like keeping three copies of your homework in different classrooms in your school. If one room loses power, the others save you—but if the whole school burns down, you’re out of luck.
  • Practical Flow (Sandbox): Create storage account > Select “Zone-redundant storage (ZRS)” > Upload interview.mp4 > Simulate a zone failure (data still available).

3. Geo-Redundant Storage (GRS)

  • Easy Definition: Keeps six copies of your data—three in one region and three in another faraway region.
  • Detailed Explanation: GRS replicates your data three times in a primary region (e.g., East US) using LRS, then copies those three to a secondary region (e.g., West US) hundreds of miles away. The secondary copies are updated asynchronously (with a slight delay), protecting against regional disasters (e.g., earthquakes). You can’t access the secondary copies directly—Azure manages failover if the primary region fails completely (requires Microsoft intervention). Durability: 16 nines (99.99999999999999%). Use Case: Critical data needing protection from regional outages (e.g., legal or financial records).
  • Real-World Example (MediaWorld): MediaWorld stores finalized podcasts (episode1.mp3) with GRS, primary in East US, secondary in West US. If an earthquake hits East US, Azure can recover episode1.mp3 from West US—editors wait for failover, but data isn’t lost.
  • Analogy: Like keeping three copies of your homework in your bedroom and three at a friend’s house across town. If your house floods, your friend’s copies save you, but you have to go get them.
  • Practical Flow (Sandbox): Create storage account > Select “Geo-redundant storage (GRS)” > Upload episode1.mp3 > Simulate East US failure (assume West US has it).

4. Read-Access Geo-Redundant Storage (RA-GRS)

  • Easy Definition: Like GRS, but you can read from the backup region anytime—no waiting for failover.
  • Detailed Explanation: RA-GRS builds on GRS: six copies total—three in the primary region (e.g., East US) and three in the secondary (e.g., West US). Unlike GRS, the secondary region is read-only accessible via a separate endpoint (e.g., mediaworldstorage-secondary.eastus2.blob.core.windows.net). Offers higher availability—users can read data from the secondary if the primary fails, without Microsoft intervention (though writes still need the primary). Durability: 16 nines (same as GRS). Use Case: Data needing both disaster recovery and immediate read access (e.g., public content like videos).
  • Real-World Example (MediaWorld): MediaWorld stores public video content (global-podcast.mp3) with RA-GRS, primary in East US, secondary in West US. If East US goes offline, listeners access global-podcast.mp3 from West US instantly via the secondary endpoint—no downtime.
  • Analogy: Like keeping three copies of your homework in your bedroom and three at a friend’s house, but your friend posts them online so you can grab them anytime, even if your house floods.
  • Practical Flow (Sandbox): Create storage account > Select “Read-access geo-redundant storage (RA-GRS)” > Upload global-podcast.mp3 > Find secondary endpoint > Test access (e.g., browser download).

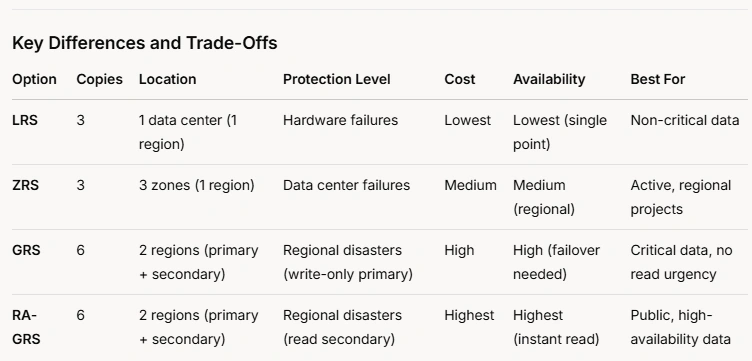

    Differences
  • Cost: More copies and regions = higher price (LRS < ZRS < GRS < RA-GRS).
  • Availability: Ability to access data during failures (RA-GRS > GRS > ZRS > LRS).
  • Durability: Chance of not losing data (all are very high, but GRS/RA-GRS top at 16 nines).

How They Prevent Data Loss

  • LRS: Protects against small failures (e.g., a broken server) by keeping three local copies—if one fails, the others step in.
  • ZRS: Guards against bigger failures (e.g., a data center blackout) by spreading copies across zones—lose one zone, two remain.
  • GRS: Shields against massive disasters (e.g., a regional flood) with copies in another region—primary fails, secondary survives.
  • RA-GRS: Adds instant access to GRS—if the primary region is down, you still read from the secondary, avoiding downtime.

Real-World Tie-In (MediaWorld)

Imagine MediaWorld’s storage needs:

  • LRS: Draft scripts (script.docx)—cheap, low risk if lost during creation.
  • ZRS: Active videos (interview.mp4)—editing needs quick access within East US, safe from local outages.
  • GRS: Final podcasts (episode1.mp3)—critical backups for legal retention, recoverable after a disaster.
  • RA-GRS: Public content (global-podcast.mp3)—millions of listeners need it anytime, even during a regional failure.

Practical Application in Sandbox

  • Microsoft Learn Sandbox: Create a storage account > Test LRS and ZRS (change redundancy in “Configuration”). Upload a file > Simulate failure (assume data stays safe).
  • Azure Trial: Create mediaworldstorage > Set LRS, then upgrade to GRS or RA-GRS. Upload test.mp3 > Find secondary endpoint for RA-GRS > Test access. Use PowerShell: Set-AzStorageAccount -Name "mediaworldstorage" -SkuName "Standard_RAGRS".

Tips

  • Know Definitions: LRS = local, ZRS = zones, GRS = geo, RA-GRS = geo with read access.
  • Scenarios: “Prevent data loss in a region failure” = GRS/RA-GRS; “High availability for public data” = RA-GRS.
  • Cost vs. Protection: Cheapest (LRS) vs. most resilient (RA-GRS)—match to use case.
  • Lab Tasks: Be ready to configure redundancy in a storage account or identify the secondary endpoint.

Analogy Recap

  • LRS: Three copies in your bedroom—safe from a spilled drink, not a house fire.
  • ZRS: Three copies in different school rooms—safe from a classroom flood, not a school collapse.
  • GRS: Three at home, three across town—safe from a neighborhood blackout, but you wait to grab them.
  • RA-GRS: Three at home, three online across town—safe and instantly accessible, even during a storm.

Why This Matters

Understanding redundancy ensures you can design storage that’s cost-effective, durable, and available—key for MediaWorld scenario. LRS saves money, ZRS boosts local uptime, GRS protects against disasters, and RA-GRS keeps content flowing globally.
