MongoDB - Day 16 (Sharding)

Sharding In MongoDB

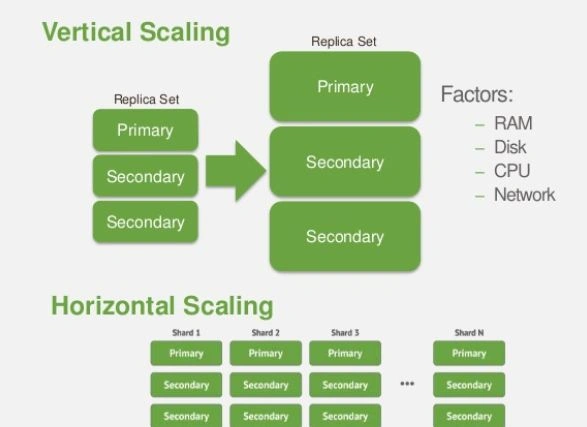

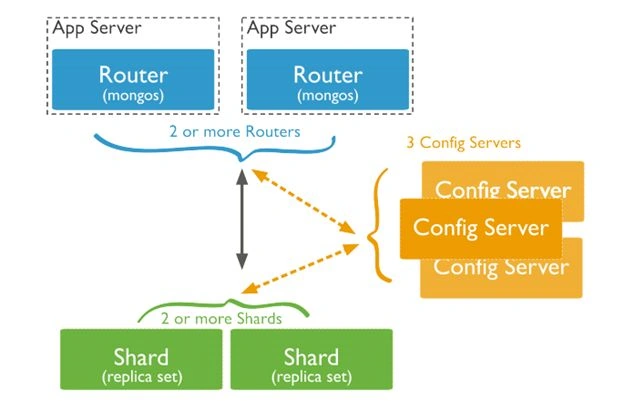

MongoDB does Sharding using a sharded cluster. The following diagram shows Sharding in MongoDB using sharded clusters.

A sharded cluster contains 3 components. The following describes these components.

• Shards: Shards are used to store the data. Each shard contains a replica set. Shards provide high data availability and data consistency.
• Config Servers: Config servers are used to store the metadata of clusters. A sharded cluster has exactly 3 config servers. These 3 config servers contain the mapping of the cluster’s data stored in shards. Config servers help the query router to select the desired shards to do the operations.
• Query Routers: Query routers are Mongo's instance that interfaces with the client applications and does the operations of the appropriate shards. When a query comes to the query router, then the query router first uses the metadata (config server) and selects the single or multiple shards and performs the desired operations to shards, and then returns the results to the client. A sharded cluster may contain one or multiple query routers, depending on the query load. A client can send a request to only one query router. Generally, a sharded cluster contains multiple query routers.

Data Partitioning

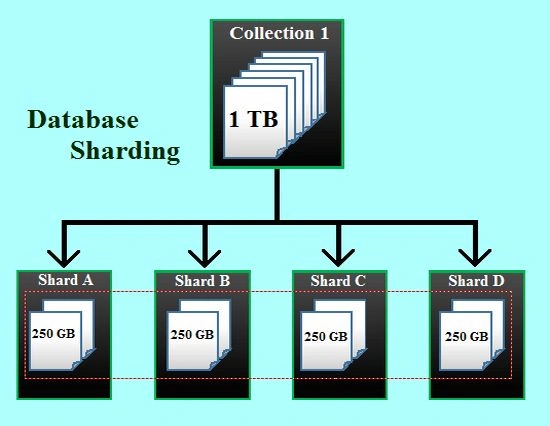

MongoDB distributes data or shards at the collection level. In other words, the data of a collection may be distributed into several shards. Distribution of a collection’s data is done by a shard key.

Shard Key

A shard key shards a collection and determines the distribution of the collection’s documents among the cluster’s shards. A shard key may be an indexed field or an indexed compound field present in every document of the collection. The shard key is also divided into chunks, and these chunks are evenly distributed across the shards. MongoDB uses the following two techniques to divide the shard key into chunks.

1. Range Based Partitions
2. Hash-Based Partitions

Range Based Sharding

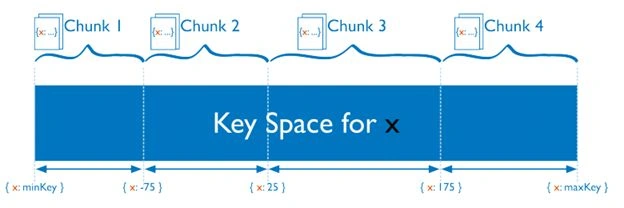

MongoDB uses range-based partitions for range-based Sharding of the collection’s data. In range-based sharding, MongoDB divides the shard key into a number of non-overlapping ranges called chunks. Each chunk contains a range of values from minimum values to maximum values.

Hash-Based Sharding

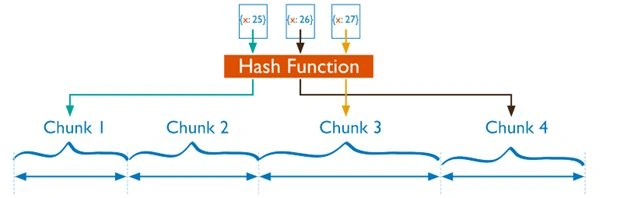

MongoDB uses hash-based partitions for hash-based sharding. In a hash-based partition, MongoDB computes a hash of the field’s value and then uses this hash to create the chunks in the shard key. A hash-based partition provides a more random distribution of collections in the clusters.

Balanced Data Distribution

In the process of sharding, there is a large possibility that the stored data becomes imbalanced in the cluster. Data imbalance may occur due to any of the following reasons.

• Addition/Removing of new data.
• Addition/Removing of the cluster.
• A specific shard contains more chunks than other chunks.
• The size of a specific chunk is greater than another chunk's size.

MongoDB always tries to balance the data distribution; for this, MongoDB uses the following two approaches.

1. Splitting
2. Balancing

Splitting

Splitting is a background process that restricts the chunks from growing too large. When the size of a chunk crosses the value of a specified chunk size, MongoDB splits the chunks into half. In the split process, MongoDB does not modify the shards or migrate any data. The splits provide sufficient meta-data change.

Balancing

Balancing is a background process. Due to an uneven distribution of sharded collections, the query router runs a balancer process. The balancer process migrates chunks from the shard containing a large number of chunks to the shard that contains the least number of chunks. The balancer process can be initiated from any query router. After successful chunk migration, the metadata regarding the location of the chunks on the config server is updated.

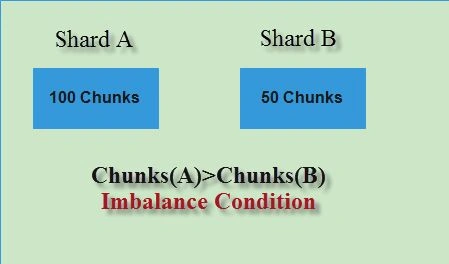

In the preceding image, we can see that the number of chunks in shard A is just double that of shard B. So this is an imbalanced condition. Now the migration of chunks from shard A to shard B will occur.

Now we can see that after the migration of chunks from shard A to shard B, both shards are in a balanced state.

The following are the advantages of sharding

• Sharding distributes the data over multiple shards, so it reduces the number of operations for each shard.
• Removes the dependency from a single server.
• Protects against system failover.
• Increases capacity and throughput.

Today we learned the basic concept of sharding. In the next article we learn about backup in MongoDB. Thanks for reading this article.
