Search And Highlight Text In Rich TextBox

In this article, I am going to explain how to search and highlight text in Rich TextBox in a Windows Forms app using Visual Studio 2017.

Introduction

In this article, I am going to explain how to search and highlight text in Rich TextBox in a Windows Forms app using Visual Studio 2017.

STEP 1 - Start the Project

Let's create a new project using Visual Studio 2017.

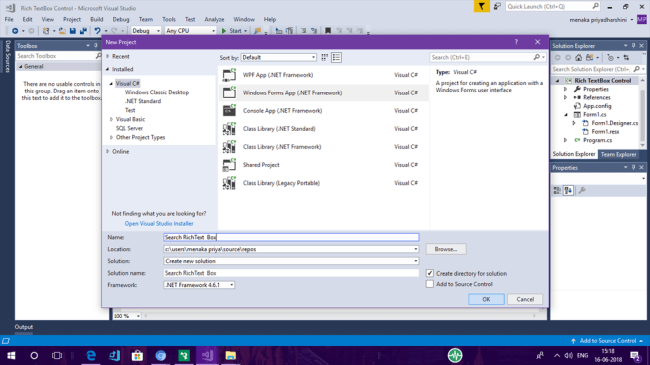

Select New Project--->Visual C#-->Windows Forms App (.NET Framework), give your project a name and click OK.

Search and Highlight Text in Rich TextBox

This action creates a WinForms project with a default form and you should see the Windows designer.

STEP 2 - Drag and Drop Control

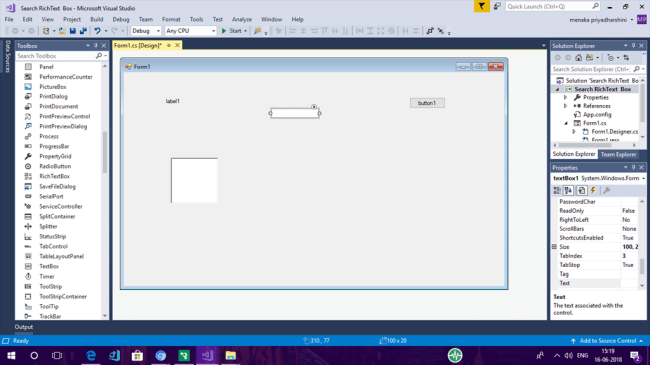

Let's add a control to the form by dragging it from Toolbox and dropping it to the form. You will see a Rich TextBox 1 is added to the form. This control is now available to you in the code behind.

Search and Highlight Text

The textbox will be used to enter the search string and on the button click, we will be performing a search in the Rich TextBox. Add a class variable called 'start'. This variable will be the start position within the control text from where you need to begin searching.

Also, add another variable called 'IndexofsearchText' to hold position/index of the search string in the Rich TextBox. RTF stands for Rich Text Format, and this describes a certain file type where text formatting is encoded with special character embedded in the text. Programs such as Microsoft Word can use RTF documents.

Search and Highlight Text in Rich TextBox

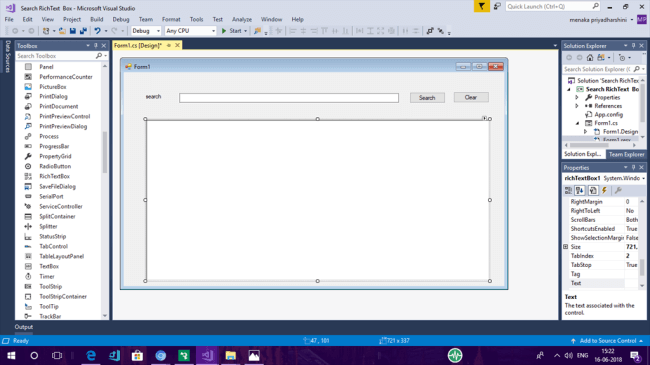

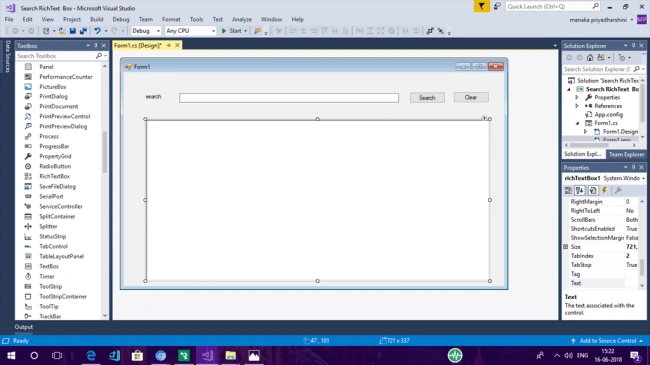

Now, let's add another control to the form by dragging the other control from Toolbox to the form. You may also want to change the properties of the other controls.

Search and Highlight Text in Rich TextBox

Change the text of button and label control to what you like.

STEP 3 - Coding

Follow the coding given below,
  1.   public partial class Form1 : Form
  2.      {
  3.          public Form1()
  4.          {
  5.               InitializeComponent();
  6.           }
  7.
  8.           private void button1_Click(object sender, EventArgs e)
  9.           {
  10.              string[] words = textBox1.Text.Split(',');
  11.              foreach(string word in words)
  12.              {
  13.                  int startindex = 0;
  14.                  while(startindex < richTextBox1.TextLength)
  15.                  {
  16.                      int wordstartIndex = richTextBox1.Find(word, startindex, RichTextBoxFinds.None);
  17.                      if (wordstartIndex != -1)
  18.                      {
  19.                          richTextBox1.SelectionStart = wordstartIndex;
  20.                          richTextBox1.SelectionLength = word.Length;
  21.                          richTextBox1.SelectionBackColor = Color.Yellow;
  22.                      }
  23.                      else
  24.                          break;
  25.                      startindex += wordstartIndex + word.Length;
  26.                  }
  27.              }
  28.          }
  29.
  30.         private void button2_Click(object sender, EventArgs e)
  31.          {
  32.              richTextBox1.SelectionStart = 0;
  33.              richTextBox1.SelectAll();
  34.              richTextBox1.SelectionBackColor = Color.White;
  35.          }
  36.      }
STEP 4 - Compile and Run

Now, simply compile and run the aplication.

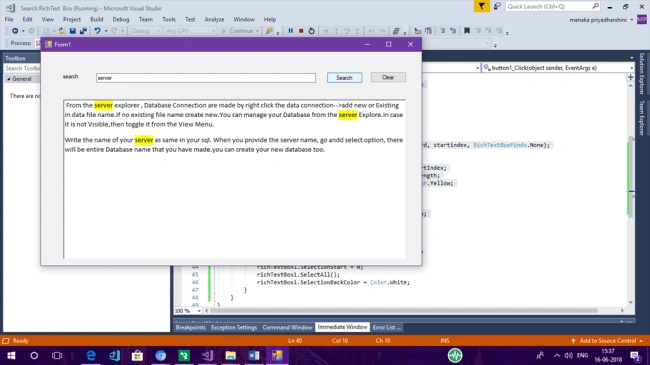

Copy and paste the paragraph in Rich TextBox. Enter the text in the Textbox you need to search and highlight in the paragraph. After clicking the search Button, the Text entered in the Textbox will be searched and highlighted in the paragraph.

Search and Highlight Text in Rich TextBox

Search and Highlight Text in Rich TextBox

Summary

In this basic article, you saw how to search and highlight text in Rich TextBox control. Hope you found this article interesting. For any feedback, please post it as a comment at the bottom of this article. Thank you!
