Set Operators (SQL) - UNION, UNION ALL, INTERSECT, EXCEPT

Introduction

Set operations allow the results of multiple queries to be combined into a single result set. Set operators include,

Four Set Operators

  • UNION --- Combine two or more result sets into a single set, without duplicates.
  • UNION ALL --- Combine two or more result sets into a single set, including all duplicates.
  • INTERSECT --- Takes the data from both result sets which are in common.
  • EXCEPT --- Takes the data from the first result set, but not the second (i.e. no matching to each other)

Rules on Set Operations

  • The result sets of all queries must have the same number of columns.
  • In every result set the data type of each column must match the data type of its corresponding column in the first result set.
  • In order to sort the result, an ORDER BY clause should be part of the last statement.
  • The records from the top query must match the positional ordering of the records from the bottom query.
  • The column names or aliases must be found out by the first select statement.

DEMO - Set up Table and initial Data

Create a table Students with two columns: id, name

CREATE TABLE [dbo].[Students](
    [Id] [int] IDENTITY(1,1) NOT NULL,
    [Name] [nvarchar](max) NOT NULL

 CONSTRAINT [PK_dbo.Students] PRIMARY KEY CLUSTERED
(
    [Id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON, OPTIMIZE_FOR_SEQUENTIAL_KEY = OFF) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO

Create a table Teachers with two columns: id, name

CREATE TABLE [dbo].[Teachers](
    [Id] [int] IDENTITY(1,1) NOT NULL,
    [Name] [nvarchar](max) NOT NULL,
 CONSTRAINT [PK_dbo.Teachers] PRIMARY KEY CLUSTERED
(
    [Id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON, OPTIMIZE_FOR_SEQUENTIAL_KEY = OFF) ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO

Insert initial Data

insert dbo.Students
Values ('Greg'),
       ('George'),
       ('Helen'),
       ('Tom')

insert into dbo.Teachers
Values ('Greg'),
       ('George'),
       ('David')

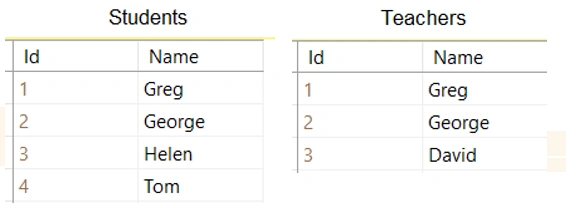

The result will be,

Set Operator: UNION

SELECT * FROM Students
UNION
SELECT * FROM Teachers

Resut set will combine two result sets into a single set, without duplicates.

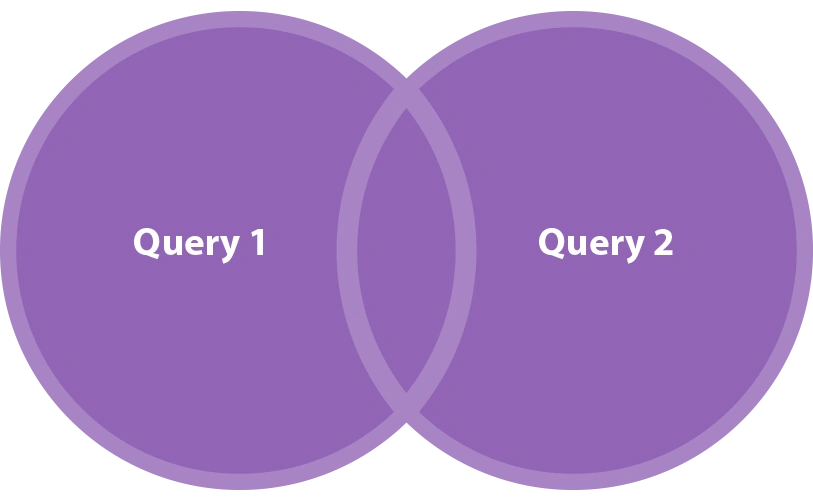

Venn diagram

Set Operator: UNION ALL

SELECT * FROM Students
UNION ALL
SELECT * FROM Teachers

Resut set will combine two or more result sets into a single set, including all duplicates.

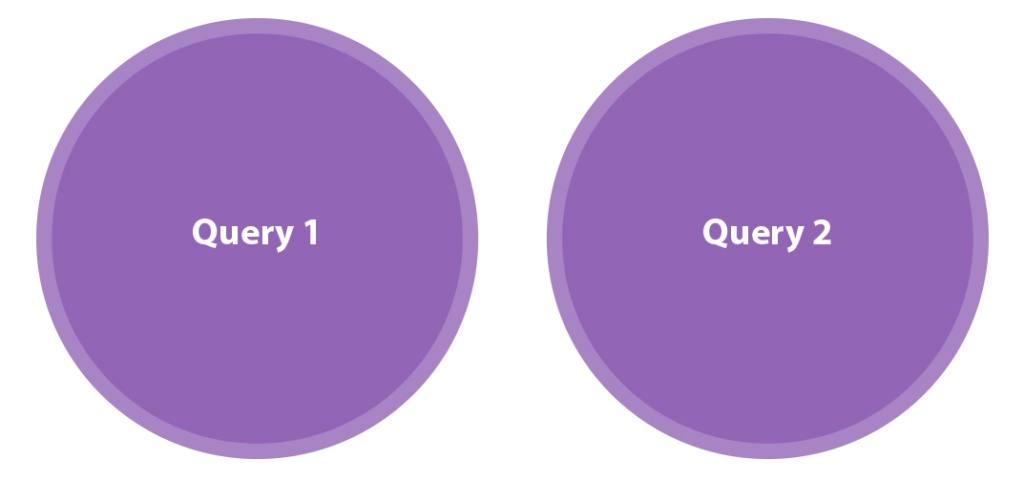

Venn diagram

Set Operator: INTERSECT

SELECT * FROM Students
INTERSECT
SELECT * FROM Teachers

Resut set will take the data from both result sets which are in common.

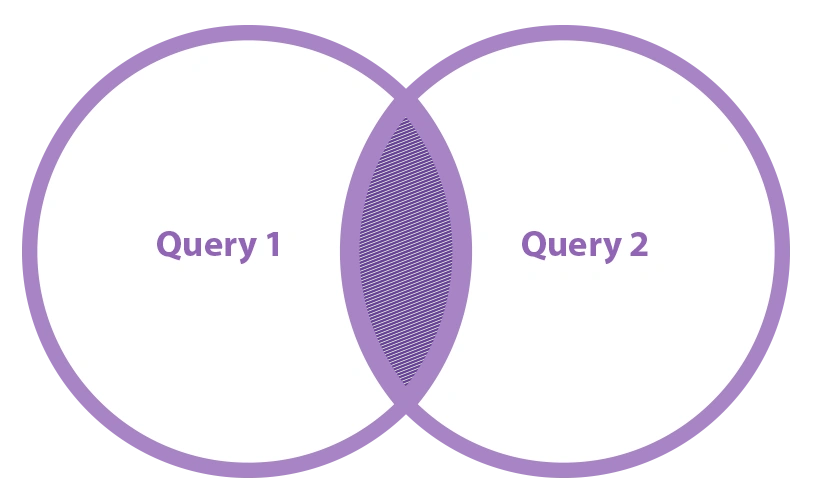

Venn diagram

Set Operator: EXCEPT

SELECT * FROM Students
EXCEPT
SELECT * FROM Teachers

Resut set will take the data from first result set, but not the second

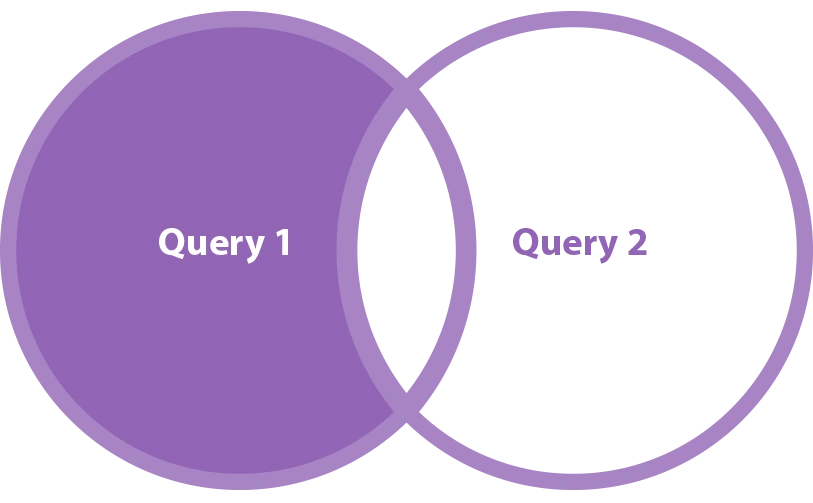

Venn diagram

Note
Oracle Set Operator: MINUS == EXCEPT  (SQL Server)

Summary

This article efficiently helps me to understand the set operators: UNION, UNION ALL, INTERSECT, and EXCEPT.
