Simple Factory Pattern Side by Side with Abstract Pattern


This article will discuss the Simple Factory Pattern and how to use it with Abstract Factory Patter discussed in the previous article.

About Simple Factory:

A Simple Factory pattern is one that returns an instance of one of several possible classes, depending on the data provided to it. Usually all of the classes it returns have a common parent class and common methods, but each of them performs a task differently and is optimized for different kinds of data.

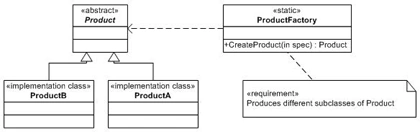

Simple Factory Structure:


How Simple Factory Works:

To understand how Simple Factory pattern works, have a look at the diagram above. Product is a base class for classes ProductA and ProductB . The ProductFactory class decides which of these subclasses to return, depending on the arguments you give it. On the other hand, we define a CreateProduct method to be one that passes in some value through spec parameter. The method should return some instance of the class Product. Which one it returns doesn't matter to the developer, since they all have the same methods but different implementations. How it decides which one to return is entirely up to the factory. It could be some very complex function, but it is often quite simple.

Where Simple Factory is applied:

Simple factory is applied in may places and it is widely used, but here we will show one good place of its applications.

If you got the chance to work or examine the Enterprise Library built by microsoft, you'll notice that this concept is used. For example in Data Access Application Block of the Enterprise Library, there is class named Database (The Product Class), the classes is base class for SqlDatabase & OracleDatabase classes (The ProductA & ProductB classes). Now our factory class is named DatabaseFactory (The ProductFactory class). The DatabaseFactory class has a method named CreateDatabase(string name) (CreateProduct(spec)). CreateDatabase method is responsible to create an instance of type Database, this can be SqlDatabase or OracleDatabase based on the value send in the name parameter. One this you may need to notice, is that the CreateDatabase method is static method. The developer doesn't care of which instance is returned (SqlDatabase or OracleDatabase) as long as they all have the same methods but different implementations.

How you can use Simple Factory side by side with Abstract Factory:

Referring to my previous article, we've discussed the Abstract Factory Pattern and its real implementation inside ADO.NET 2.0 in the database provider model. To link between Abstract Factory & Simple Factory, first we must be reminded that Abstract Factory is a factory object that returns one of several groups of classes, so we might use Simple Factory to decide which class to return from those groups. Taking the ADO.NET 2.0 Provider model as an example of Abstract Factory, you may decide to use a Simple Factory class to return a specific ADO.NET 2.0 Provider.


From the diagram above, SimpleProviderFactory is supposed to be the Simple Factory class. It contains CreateProvider method with input parameter providerName, this parameter will be responsible to decide which DbProviderFactory implementation to be returned. Of course implementation of CreateProvider method will use this input parameter to return the specific provider factory class.

In real world applications, providerName parameter will be configurable through application configuration file in .NET Framework.


Simple Factory returns instances of classes that have the same methods. They may be instances of different derived subclasses, or they may in fact be unrelated classes that just share the same interface. Either way, the methods in these class instances are the same and can be used interchangeably.
