Working With ListBox in Windows Phone 7

Introduction

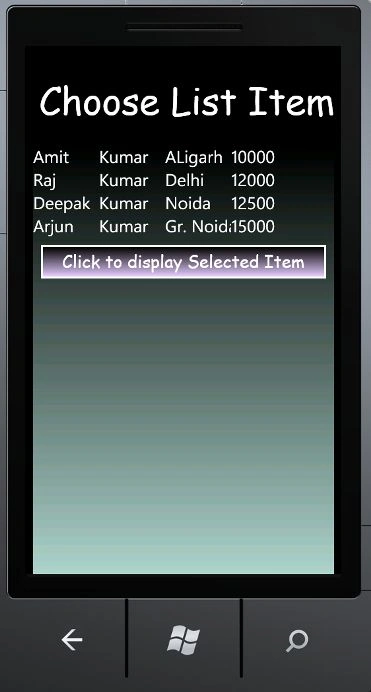

In this article we are going to explore how to work with a ListBox in Windows Phone 7. Further we will discuss it in details how it is possible to work with ListBox in Windows Phone 7. In this demonstration we will make some properties and add these properties values to the List<> which is a type of datasource and the information regarding the items bound to it which is shown in the output. Let's see how we will work with it; to do this you should follow the steps given below.

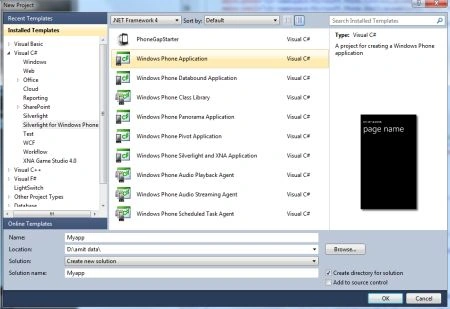

Step 1: In this step first of all we have to create a Windows Phone application; let's see how you will open it.

• Go to Visual Studio 2010
• File->New->Project
• Select the template named as Silverlight for Windows Phone
• Select the Windows Phone application
• Give it a name as you want.

Step 2: In this step we will see the code for the MainPage.xaml.cs file which is shown below.

Code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Microsoft.Phone.Controls;

namespace Myapp

{

public partial class MainPage : PhoneApplicationPage

{

// Constructor

public MainPage()

{

InitializeComponent();

List<MyData> L1 = new List<MyData>();

L1.Add(new MyData() { F_Name = "Amit", L_Name="Kumar", Address="ALigarh", Salary = 10000 ,});

L1.Add(new MyData() { F_Name = "Raj", L_Name="Kumar" ,Address="Delhi", Salary = 12000 });

L1.Add(new MyData() { F_Name = "Deepak", L_Name="Kumar", Address="Noida",Salary = 12500 });

L1.Add(new MyData() { F_Name = "Arjun", L_Name = "Kumar", Address = "Gr. Noida", Salary = 15000 });

this.listBox.ItemsSource = L1;

}

private void listBox_SelectionChanged(object sender, SelectionChangedEventArgs e)

{

MyData data = (sender as ListBox).SelectedItem as MyData;

ListBoxItem selectedItem = this.listBox.ItemContainerGenerator.ContainerFromItem(data) as ListBoxItem;

}

}

public class MyData

{

public string F_Name { get; set; }

public string L_Name { get; set; }

public string Address { get; set; }

public int Salary { get; set; }

}

}

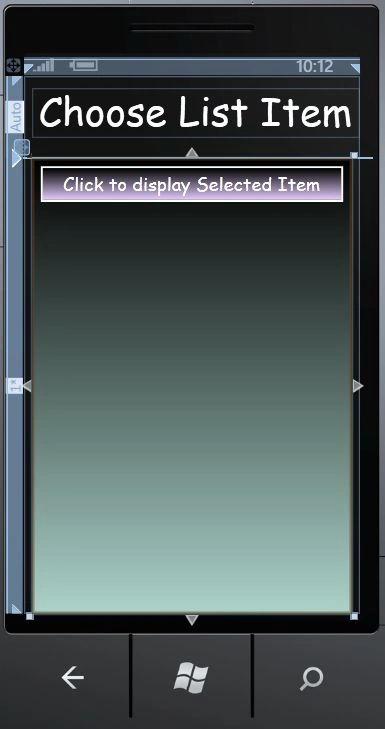

Step 3: In this step we will see the code for the MainPage.xaml file which is shown below.

Code:

<phone:PhoneApplicationPage

x:Class="Myapp.MainPage"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"

xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"

FontFamily="{StaticResource PhoneFontFamilyNormal}"

FontSize="{StaticResource PhoneFontSizeNormal}"

Foreground="{StaticResource PhoneForegroundBrush}"

SupportedOrientations="Portrait" Orientation="Portrait"

shell:SystemTray.IsVisible="True">

<!--LayoutRoot is the root grid where all page content is placed-->

<Grid x:Name="LayoutRoot" Background="Transparent">

<Grid.RowDefinitions>

<RowDefinition Height="Auto"/>

<RowDefinition Height="*"/>

</Grid.RowDefinitions>
