Creating List And Columns Using SharePoint Hosted Add-ins

Introduction


In this blog, I have described step by step how to create a list and column using SharePoint self hosted Add-ins. To create the List and List Columns using SharePoint Hosted Apps, you have to follow the below steps.

Step 1 - Create a SharePoint Hosted App project.
Step 2 - Write HTML code under Default.aspx.
Step 3 - Add Javascript code under App.js file.
Step 4 - Deploy the Project.


Create a sharePoint Hosted App project

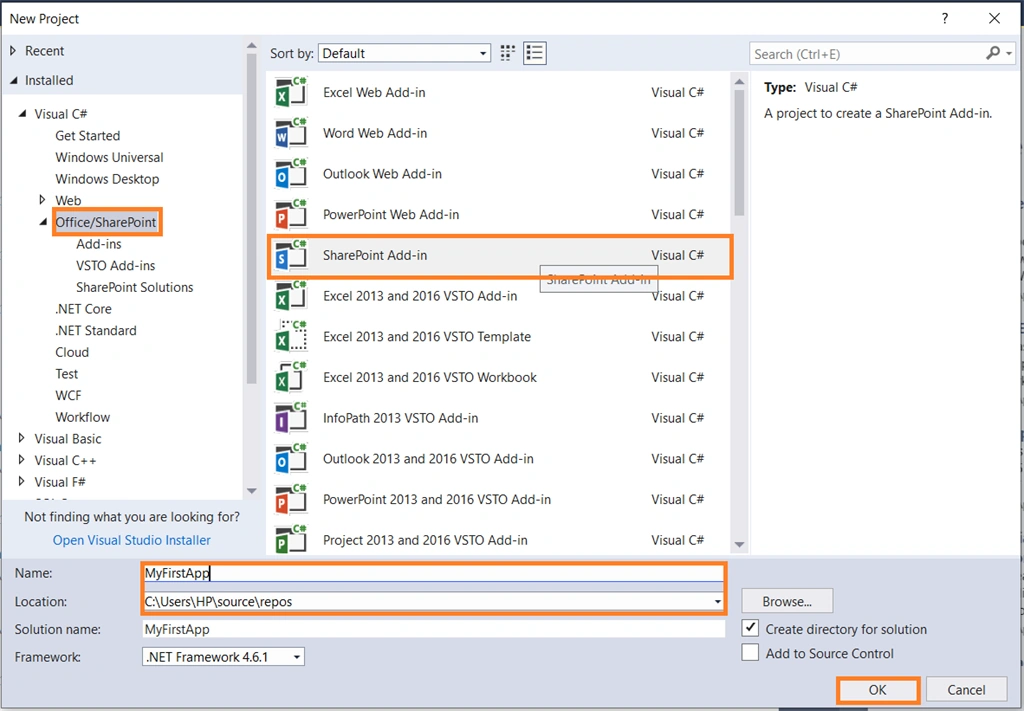

  • Open Visual Studio to create a SharePoint hosted Add-In. First, click the file menu option then click the new item. After that we can see the option for Project item, now click on the same option.
  • Expand the office/SharePoint tab and select SharePoint Add-in. Enter the project name & location of the project then hit the OK button.

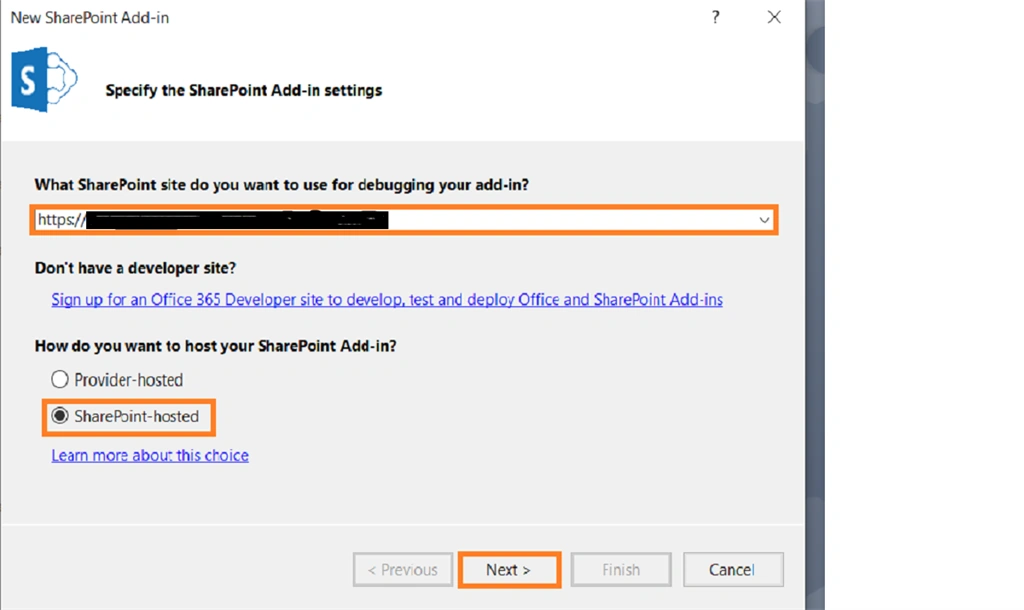

  • Select the SharePoint site URL & Hosted add-in as shown below and then click on the Next button.
  • Now it will ask for your credentials. Enter the user Credentials (Username & Password) and Click the "Sign-in" Option.
  • Once the SharePoint hosted App is created, then we can add our code.
Write HTML code under Default.aspx

Go to Default.aspx page. Create a label and a button inside the div class as shown below.
  1. <tr>
  2.          <td><label id="btnCreate" style="font-size:large;font-style:normal">Enter The List Name You Want To    Give</label></td>
  3.          <td><input type="text" id="txtListName" name="txtListName" /></td>
  4.          <td><input type="button" id="crtBtn" value="CreateList" /></td>
  5.    </tr>
Add Javascript code under App.js file

Go to App.js . Add your coding.
  1. function initializePage() {
  2.     var context = SP.ClientContext.get_current();
  3.     var user = context.get_web().get_currentUser();
  4.     $(document).ready(function() {
  5.                 $("#crtBtn").on('click', function() {
  6.                     CreateList();
  7.                 });
  8.
  9.                 function getURLParameters(param) {
  10.                     var params = document.URL.split('?')[1].split('&');
  11.                     var strParams = '';
  12.                     var plength = params.length;
  13.                     for (var i = 0; i < plength; i = i + 1) {
  14.                         var singleParam = params[i].split('=');
  15.                         if (singleParam[0] == param) {
  16.                             return singleParam[1];
  17.                         }
  18.                     }
  19.                 }
  20.
  21.                 function CreateList() {
  22.                     var hostUrl = decodeURIComponent(getURLParameters("SPHostUrl"));
  23.                     var clientContext = new SP.ClientContext.get_current();
  24.                     var hostContext = new SP.AppContextSite(clientContext, hostUrl);
  25.                     var oWeb = hostcontext.get_web();
  26.                     var value = document.getElementById("txtListname").value.toLowerCase();
  27.                     var listCreation = new SP.ListCreationInformation();
  28.                     xlistCreation.set_title(value);
  29.                     listCreation.set_templateType(SP.ListTemplateType.genericList);
  30.                     var mySpList = oWeb.get_lists().add(listCreationInfo);
  31.                     var fieldColl = mySpList.get_fields();
  32.                     var spTxtField = fieldColl.addFieldAsXml('<Field Type="Text" DisplayName="Employee Name" Name="Employee Name" />', true, SP.AddFieldOptions.addToDefaultContentType);
  33.                     spTxtField.set_title("Employee Name");
  34.                     var spDescripField = fieldCol.addFieldAsXml('<Field Type="Note" DisplayName="Address" Name="Address" />', true, SP.AddFieldOptions.addToDefaultContentType);
  35.                     spDescripField.set_title("Address");
  36.                     mySpList.update();
  37.                     clientContext.executeQueryAsync(function() {
  38.                         alert("successfully Created The List and List Field");
  39.                     }, function(sender, args) {
  40.                         alert('Error: ' + args.get_message() + '\n' + args.get_stackTrace());
  41.                     });
  42.                 }
  43.             }
Deploy the Project

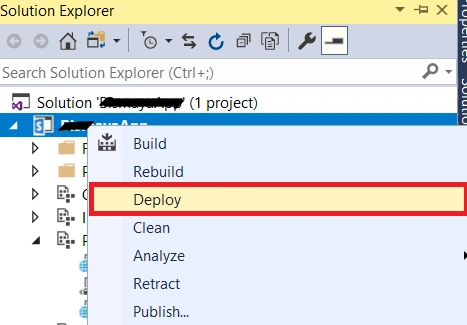

  • Go to the "Solution Explorer", right-click on the project and click on Deploy.
  • Once you deploy it, enter your office365 credentials.
  • Now you can see your App page.

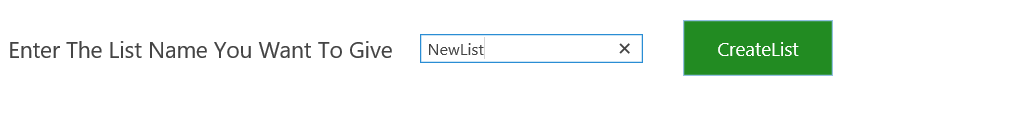

  • Enter the list name and click on the CreateList button.

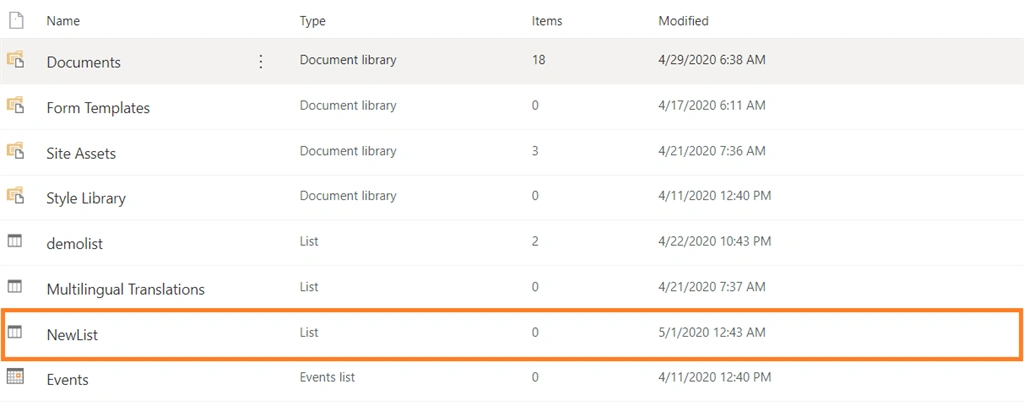

  • Now you can see the list in your sitecollection.

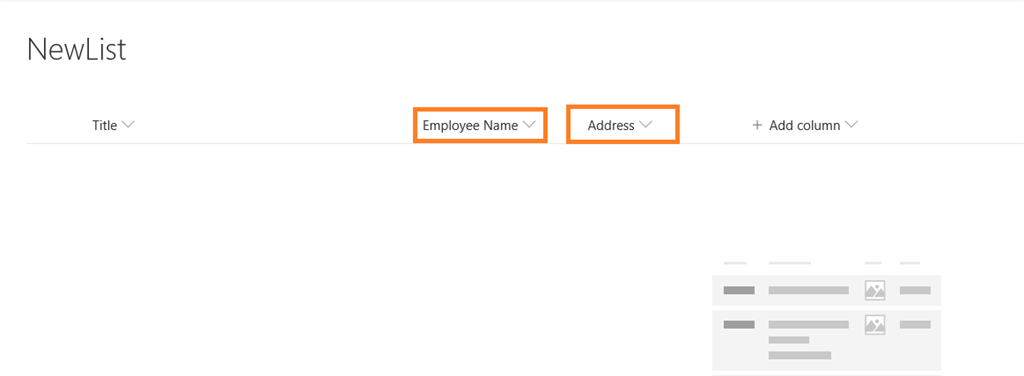

  • And the NewList which contains two columns as shown below.
