Strategy Design Pattern using Java Sample

Introduction


Strategy design pattern is a behavioral design pattern in which the behavior of the object is encapsulated with a common function name.


Where to use a Strategic design pattern?


We can use strategic design pattern when a different customer has a common strategy (Common operation name) but a different action to perform.


Why use a Strategic design pattern?


As discussed previously, customers have a common operation name to perform. With a strategic design pattern, we can share a common interface to all customers to perform their actions as per their need.

Players in this pattern
  • Strategy: Defines a contract with a common operation.
  • ConcreteStrategy: Implements contact defined by the Strategy.
  • Product: Fulfills customer requirements using ConcreteStrategy objects by referring Strategy contract.
Now we will see a strategic design pattern with an example:

Problem definition: Define a common operation to student to access different actions like Addition, subtraction, multiplication, division.

Players in this case:
  • Strategy: operator
  • ConcreteStrategy: AddOperator, SubtractOperator, MultiplyOperator, DivisionOperator.
  • Product: Calculator
Below is the operator contract which defines a common operation called ExecuteOperation:
  1. package com.sdp;
  2.
  3. public interface IOperator {
  4.     void executeOperation(int a, int b);
  5. }
Below are the concrete operators which implement a contract as defined by the operator:
  1. package com.sdp;
  2.
  3. public class AddOperator implements IOperator {
  4.     @Override
  5.     public void executeOperation(int a, int b) {
  6.         System.out.println("AddOperator result: " + (a + b));
  7.     }
  1. package com.sdp;
  2.
  3. public class SubtractOperator implements IOperator {
  4.     @Override
  5.     public void executeOperation(int a, int b) {
  6.         System.out.println("SubtractOperator result: " + (a - b));
  7.     }
  8. }
  1. package com.sdp;
  2.
  3. public class MultiplyOperator implements IOperator {
  4.     @Override
  5.     public void executeOperation(int a, int b) {
  6.         System.out.println("MultiplyOperator result: " + (a * b));
  7.     }
  8. }
  1. package com.sdp;
  2.
  3. public class DivisionOperator implements IOperator {
  4.     @Override
  5.     public void executeOperation(int a, int b) {
  6.         System.out.println("DivisionOperator result: " + (a / b));
  7.     }
  8. }
Below is the our product calculator which is going to used by customers with the help of operator contract:
  1. package com.sdp;
  2.
  3. public class Calculator {
  4.
  5.     private IOperator _operator;
  6.
  7.     public Calculator(IOperator ioperator)
  8.     {
  9.         _operator = ioperator;
  10.     }
  11.
  12.     public void Calculate(int a, int b)
  13.     {
  14.         _operator.executeOperation(a, b);
  15.     }
  16. }
Below is the student class in where the student is using a Calculator to fulfill his/her requirement.
  1. package com.sdp;
  2.
  3. public class Student {
  4.
  5.     public static void main(String[] args) {
  6.         Calculator oprt = new Calculator(new AddOperator());
  7.         oprt.Calculate(20, 10);
  8.
  9.         oprt = new Calculator(new SubtractOperator());
  10.         oprt.Calculate(20, 10);
  11.
  12.         oprt = new Calculator(new MultiplyOperator());
  13.         oprt.Calculate(20, 10);
  14.
  15.         oprt = new Calculator(new DivisionOperator());
  16.         oprt.Calculate(20, 10);
  17.     }
  18. }

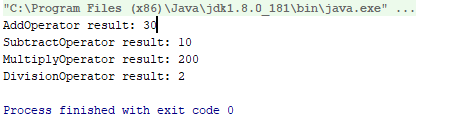

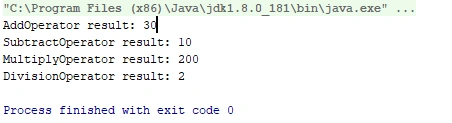

Below is the snap of output window of the above code:



Summary


In this blog, we understood about what strategy and design pattern are and how to use them.
