Use Of Repeater In ASP To Create UI For Online Shopping Cart

This will show you how to fetch an image from the database and design it on the web form for an online shopping cart.

Step 1

Create a table for storing your Image (Product) information, such as ProductID, Name ,Price, Quantity etc., which you want to show as product details on the homepage of a shopping cart.

Step 2

Create a web form for your web application.

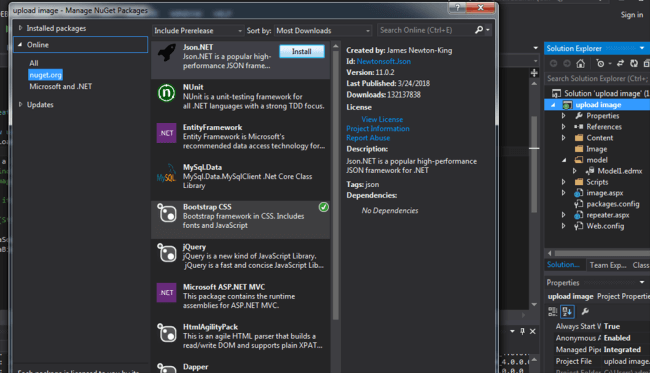

Import Bootstrap line or manage NuGet packages to install bootstrap in your web form (right-click on web application --> Manage NuGet Packages-->install bootstrap).

LINQ

Step 3

Add repeater in your form,
  1. <!DOCTYPE html>
  2.
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head runat="server">
  5.     <link href="Content/bootstrap.css" rel="stylesheet" />
  6.     <title></title>
  7.     <style>
  8.         well{
  9.             margin-top:20px;
  10.             padding:2px,2px,2px,2px;
  11.         }
  12.     </style>
  13. </head>
  14. <body>
  15.     <form id="form1" runat="server">
  16.     <div class="container" style="margin-top:10px">
  17.         <div class="row">
  18.     <asp:Repeater ID="RepeatImages" runat="server">
  19.
  20.         <ItemTemplate>
  21.             <div class="col-md-3">
  22.                <div class="well" style="height:350px; width:350px;">
  23.             <asp:Image ID="Image" runat="server" CssClass="align" style="height:200px; width:100%" ImageUrl='<%# DataBinder.Eval(Container,"DataItem.Image") %>' />
  24.                <asp:Label ID="Label1" runat="server" Text='<%# DataBinder.Eval(Container,"DataItem.ImageID") %>'></asp:Label><br />
  25.                     </div>
  26.              </div>
  27.         </ItemTemplate>
  28.
  29.     </asp:Repeater>
  30.     </div>
  31.         </div>
  32.     </form>
  33. </body>
  34. </html>
Step 4

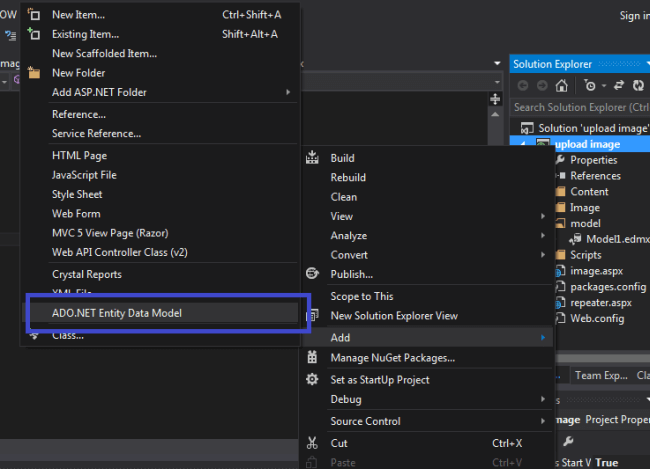

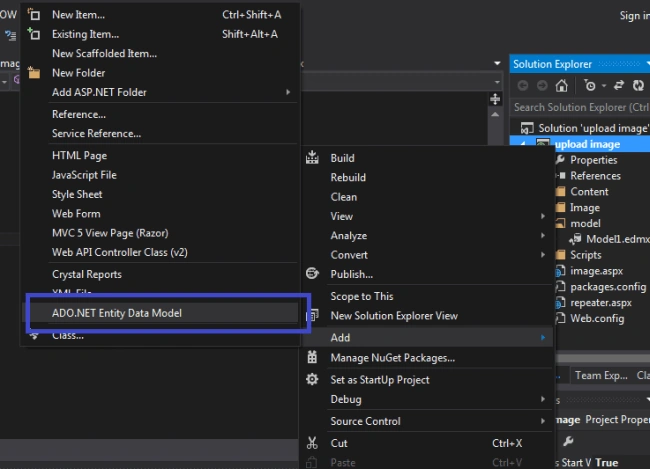

Now, add model to access database (right click on web application --> add new item-->ADO.NET entity data model (model.edmx)).

LINQ

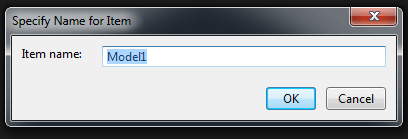

Add model1.edmx

LINQ

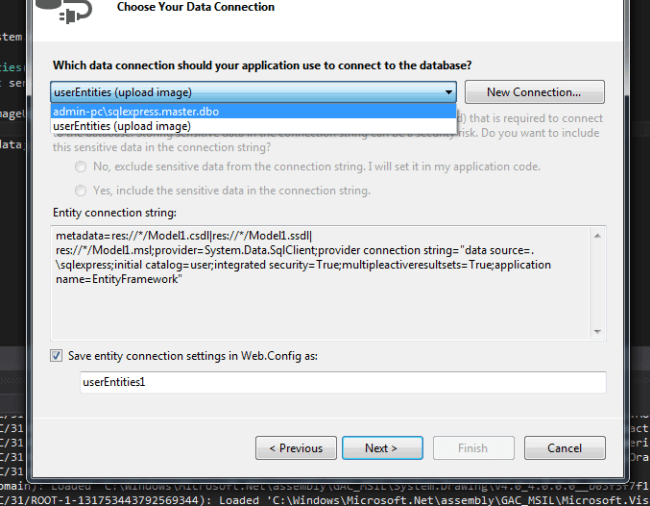

Create new connection Add database (Entity).

LINQ

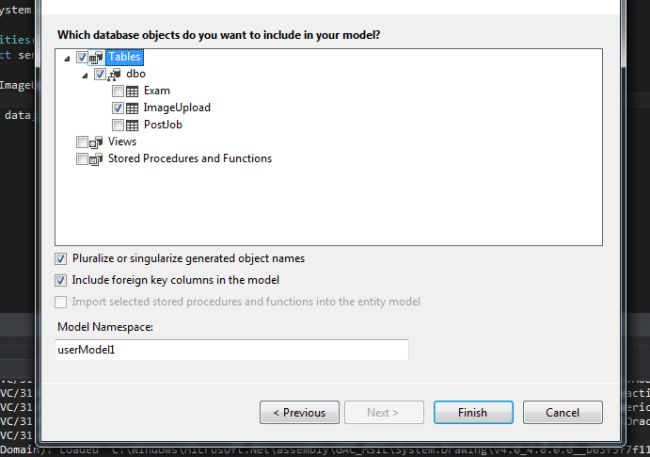

Choose table

LINQ

By finishing this you will get access to your database.

Step 5

Fetch the data from table to send it to repeater,
  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.UI;
  7. using System.Web.UI.WebControls;
  8. using upload_image.model;
  9.
  10. namespace upload_image
  11. {
  12.     public partial class repeater : System.Web.UI.Page
  13.     {
  14.         userEntities db = new userEntities();
  15.         protected void Page_Load(object sender, EventArgs e)
  16.         {
  17.             var data = (from a in db.ImageUploads select a).ToList();
  18.
  19.             RepeatImages.DataSource = data;
  20.             RepeatImages.DataBind();
  21.
  22.         }
  23.     }
  24. }

I am using LINQ for fetching data.

var data = (from a in db.ImageUploads select a).ToList();

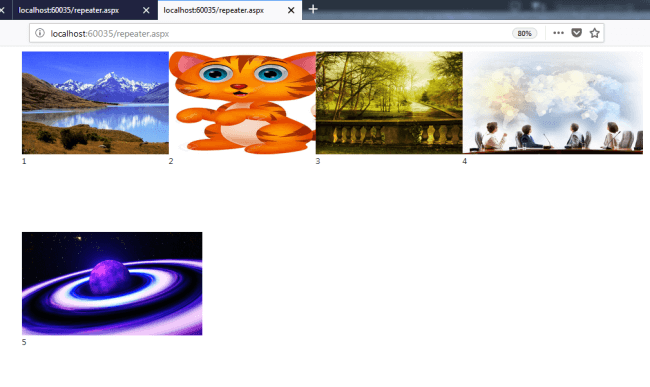

Now, you will get UI as follows,

LINQ
You can design more using external CSS as well.

Thank you.
