Crystal report not working on client machine (winform c#)

Question

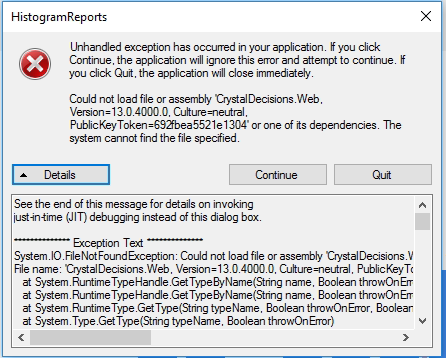

After creating a setup file of windows application that contains crystal reports. I get below error



Could not load file or assembly 'CrystalDecisions.Web, Version=13.0.4000.0, Culture=neutral, PublicKeyToken=692fbea5521e1304' or one of its dependencies





How to solve this error?



I already do below steps.



1)Install runtime crystal report on the client machine as well as on the developer machine

2)Installed "CrystalDecisions.ReportAppServer.CommLayer.dll "

3)Installed "CR13SP29MSI32_0-10010309" and "CR13SP29MSI64_0-10010309"

4)following changes in app.config



<?xml version="1.0" encoding="utf-8" ?>

<configuration>

<startup useLegacyV2RuntimeActivationPolicy="true">

<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5.2" />

</startup>

<connectionStrings>

<add name="constr" connectionString="" providerName="System.Data.SqlClient" />

<!--// original -->

<!-- <add name="constr" connectionString="Data Source=.\SQLEXPRESS;AttachDbFileName=|DataDirectory|\Data\IOTGraph.mdf;Initial Catalog=IOTGraph;Integrated Security=True" providerName="System.Data.SqlClient" /> -->

<!--<add name="constr" connectionString="Data Source=.\SQLEXPRESS;AttachDbFileName=E:\Nilesh Data\IOT_GraphUpdated_18-03-2020\IOT_GraphUpdated\Data\IOTGraph.mdf;Integrated Security=True" providerName="System.Data.SqlClient" />-->

<!--<add name="constr" connectionString="Data Source=.\SQLEXPRESS;AttachDbFileName=|DataDirectory|\Data\IOTGraph.mdf;Integrated Security=True;User Instance=True" providerName="System.Data.SqlClient" />-->

</connectionStrings>

<runtime>

<assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.CrystalReports.Engine" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportSource" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.Shared" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.Web" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.Windows.Forms" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.ClientDoc" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.CommonControls" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.CommonObjectModel" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.Controllers" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.CubeDefModel" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.DataDefModel" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.DataSetConversion" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.ObjectFactory" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.Prompting" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.ReportDefModel" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

<dependentAssembly>

<assemblyIdentity name="CrystalDecisions.ReportAppServer.XmlSerialize" publicKeyToken="692fbea5521e1304" culture="neutral"/>

<bindingRedirect oldVersion="13.0.2000.0" newVersion="13.0.3500.0"/>

</dependentAssembly>

</assemblyBinding>

</runtime>

</configuration>
