How to do network load balancing

Question

How to install and configure network load balancing using hyper v server as a virtual format.

Najath Risni · Answer

@Abhishek Yadav Are there any pictures guidelines?

Abhishek Yadav · Answer

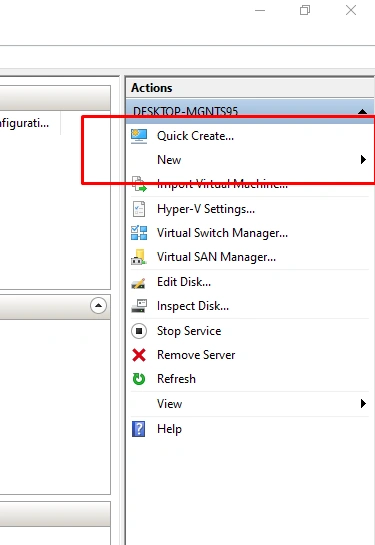

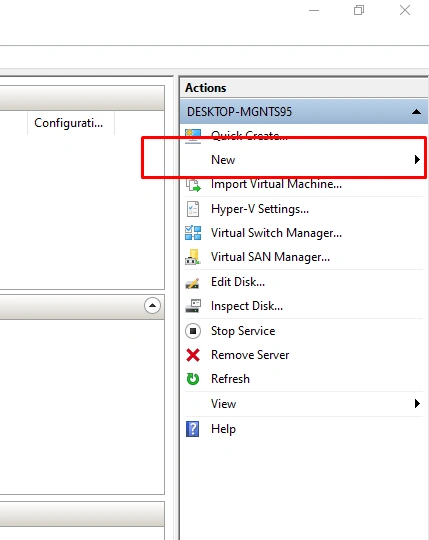

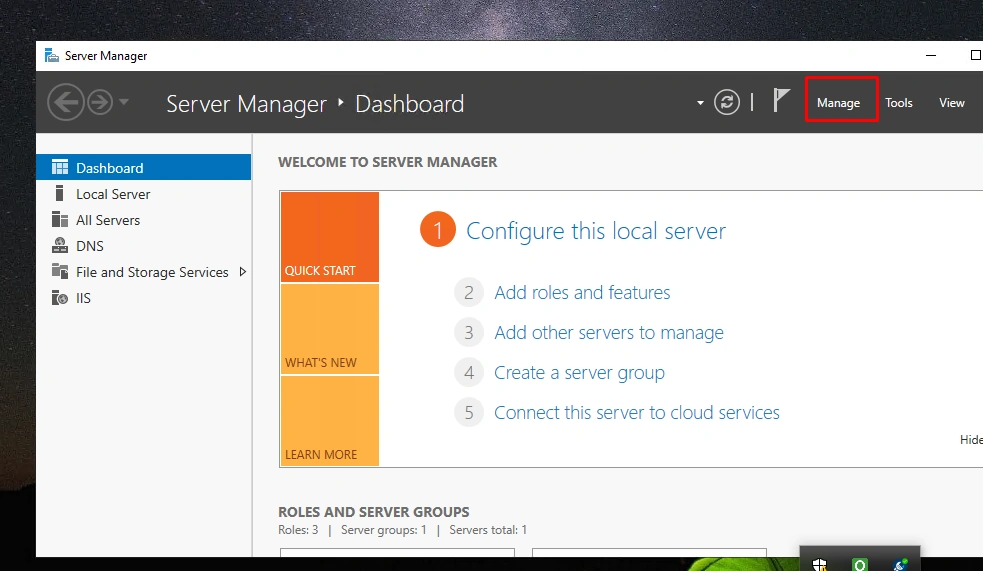

To install and configure network load balancing using Hyper-V Server as a virtual format, follow these steps: 1. Install Hyper-V Server on a physical machine: You can download the Hyper-V Server from the Microsoft website and install it on a physical machine. 2. Create a virtual machine: Open Hyper-V Manager on the physical machine and create a new virtual machine. Follow the on-screen instructions to configure the virtual machine with the desired settings such as memory, CPU, and storage. 3. Install Windows Server on the virtual machine: Install the Windows Server operating system on the virtual machine that you created in step 2. You can use an ISO file or a physical installation disc to install the operating system. 4. Enable network load balancing feature: Open Server Manager on the virtual machine and click on "Add roles and features." Select the "Network Load Balancing" feature from the list and follow the on-screen instructions to install it. 5. Configure network load balancing: After installing the Network Load Balancing feature, open Network Load Balancing Manager from the Tools menu in Server Manager. Click on "Cluster" in the menu bar and select "New Cluster" to create a new network load balancing cluster. 6. Configure the cluster properties: Enter the IP address of the virtual cluster, subnet mask, and default gateway. Select the network interface that will be used for the network load balancing cluster and configure the port rules for the cluster. 7. Add virtual machines to the cluster: Click on "Hosts" in the Network Load Balancing Manager and select "Add Host." Enter the IP address of the virtual machine that you created in step 2 and click "Connect." 8. Start the network load balancing cluster: Once you have added all the virtual machines to the cluster, click on "Cluster" in the menu bar and select "Start." The network load balancing cluster will now be active and ready to distribute network traffic among the virtual machines. By following these steps, you can install and configure network load balancing using Hyper-V Server as a virtual format.

Tuhin Paul · Answer

To install and configure network load balancing using Hyper-V Server as a virtual format Set Up Hyper-V Server : Download Hyper-V Server from the Microsoft website. Install Hyper-V Server on a physical machine following the on-screen instructions. Create Virtual Machines (VMs) : Open Hyper-V Manager on the physical machine. Create one or more virtual machines that will host your network load balanced services. Configure each VM with the desired settings such as memory, CPU, and storage. Install Windows Server on VMs : Install Windows Server operating system on each virtual machine you created. You can use an ISO file or a physical installation disc to install the operating system. Enable Network Load Balancing Feature : Once Windows Server is installed on the virtual machines, open Server Manager. Click on "Add roles and features." Select the "Network Load Balancing" feature from the list and follow the on-screen instructions to install it. Configure Network Load Balancing : After installing the Network Load Balancing feature, open Network Load Balancing Manager from the Tools menu in Server Manager. Click on "Cluster" in the menu bar and select "New Cluster" to create a new network load balancing cluster. Follow the wizard to configure the cluster properties, including the cluster IP address, subnet mask, default gateway, and dedicated IP addresses for each node. Configure the port rules for the cluster, specifying how incoming traffic should be distributed among the nodes. Add Virtual Machines to the Cluster : In Network Load Balancing Manager, click on "Hosts" and select "Add Host." Enter the IP address of each virtual machine (node) that you created earlier and click "Connect." Start the Network Load Balancing Cluster : Once you have added all the virtual machines to the cluster, click on "Cluster" in the menu bar and select "Start." The network load balancing cluster will now be active and ready to distribute network traffic among the virtual machines.

Tuhin Paul · Answer

Not all Windows Server versions support NLB. Check you install a version that includes the NLB role, such as Windows Server 2019 Standard or Datacenter edition. Pay close attention to network adapter configuration during virtual machine creation (Step 2) of @Abhishek Yadav answer. You'll need at least two virtual network adapters: one for management traffic and another for client traffic. Check firewalls on the physical machine and virtual machines allow communication on the ports used by NLB (default port for NLB traffic is TCP 4950).

Najath Risni · Answer

Thank you for answer I’ll try and let you know.

Abhishek Yadav · Answer

somewhere i can guilde but i do work on workstation so i cant make changes hope it helps kindly review the form answer i have updated it
