Problem encrypting the database connection data file inside XML File

Bassam Alqadhi

2y822C#

I have a problem encrypting the database connection data file inside the xml file

Please help encrypt the xml file, as it contains data for connecting to the database when entering the system

It remains encrypted so that the server data is not known

Find the server.xml file in the bin folder

i attach my code c#

my form

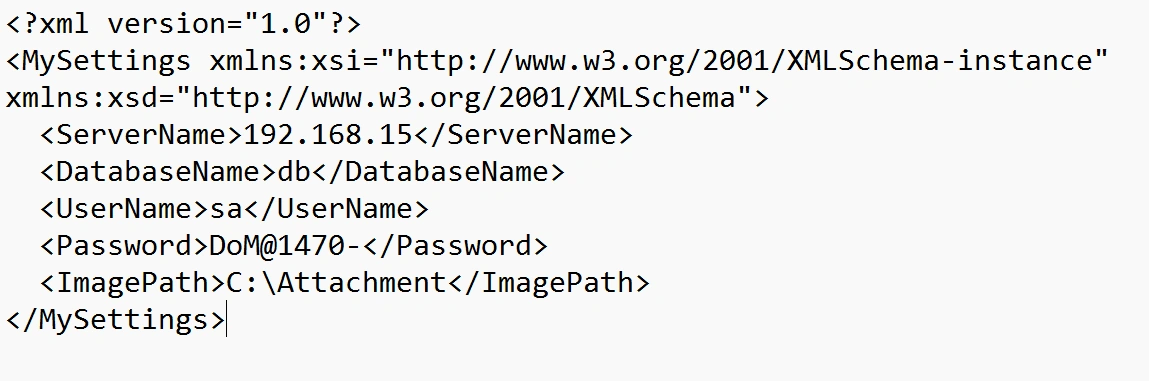

xml file Name :Server.xml

using System;

using System.Collections.Generic;

using System.ComponentModel;

using System.Data;

using System.Drawing;

using System.Linq;

using System.Text;

using System.Threading.Tasks;

using System.Windows.Forms;

using System.Xml;

using System.Security.Cryptography;

using System.Security.Cryptography.Xml;

using System.IO;

namespace WindowsFormsApp3

{

public partial class Form2 : Form

{

Aes MyKey = null;

public Form2()

{

InitializeComponent();

// Create an XmlDocument object.

XmlDocument xmlDoc = new XmlDocument();

// Load an XML file into the XmlDocument object.

try

{

xmlDoc.PreserveWhitespace = true;

xmlDoc.Load("test.xml");

}

catch (Exception e)

{

Console.WriteLine(e.Message);

return;

}

// Create a new TripleDES key.

TripleDESCryptoServiceProvider tDESkey = new TripleDESCryptoServiceProvider();

try

{

// Encrypt the "creditcard" element.

Encrypt(xmlDoc, "creditcard", tDESkey);

// Display the encrypted XML to the console.

Console.WriteLine("Encrypted XML:");

Console.WriteLine();

Console.WriteLine(xmlDoc.OuterXml);

// Decrypt the "creditcard" element.

Decrypt(xmlDoc, tDESkey);

// Display the encrypted XML to the console.

Console.WriteLine();

Console.WriteLine("Decrypted XML:");

Console.WriteLine();

Console.WriteLine(xmlDoc.OuterXml);

}

catch (Exception e)

{

Console.WriteLine(e.Message);

}

finally

{

// Clear the TripleDES key.

tDESkey.Clear();

}

public static void Encrypt(XmlDocument Doc, string ElementToEncrypt, SymmetricAlgorithm Alg)

{

// Check the arguments.

if (Doc == null)

throw new ArgumentNullException("Doc");

if (ElementToEncrypt == null)

throw new ArgumentNullException("ElementToEncrypt");

if (Alg == null)

throw new ArgumentNullException("Alg");

////////////////////////////////////////////////

// Find the specified element in the XmlDocument

// object and create a new XmlElemnt object.

////////////////////////////////////////////////

XmlElement elementToEncrypt = Doc.GetElementsByTagName(ElementToEncrypt)[0] as XmlElement;

// Throw an XmlException if the element was not found.

if (elementToEncrypt == null)

{

throw new XmlException("The specified element was not found");

}

//////////////////////////////////////////////////

// Create a new instance of the EncryptedXml class

// and use it to encrypt the XmlElement with the

// symmetric key.

//////////////////////////////////////////////////

EncryptedXml eXml = new EncryptedXml();

byte[] encryptedElement = eXml.EncryptData(elementToEncrypt, Alg, false);

////////////////////////////////////////////////

// Construct an EncryptedData object and populate

// it with the desired encryption information.

////////////////////////////////////////////////

EncryptedData edElement = new EncryptedData();

edElement.Type = EncryptedXml.XmlEncElementUrl;

// Create an EncryptionMethod element so that the

// receiver knows which algorithm to use for decryption.

// Determine what kind of algorithm is being used and

// supply the appropriate URL to the EncryptionMethod element.

string encryptionMethod = null;

if (Alg is TripleDES)

{

encryptionMethod = EncryptedXml.XmlEncTripleDESUrl;

}

else if (Alg is DES)

{

encryptionMethod = EncryptedXml.XmlEncDESUrl;

}

else if (Alg is Aes)

{

switch (Alg.KeySize)

{

case 128:

encryptionMethod = EncryptedXml.XmlEncAES128Url;

break;

case 192:

encryptionMethod = EncryptedXml.XmlEncAES192Url;

break;

case 256:

encryptionMethod = EncryptedXml.XmlEncAES256Url;

break;

}

else

{

// Throw an exception if the transform is not in the previous categories

throw new CryptographicException("The specified algorithm is not supported for XML Encryption.");

}

edElement.EncryptionMethod = new EncryptionMethod(encryptionMethod);

// Add the encrypted element data to the

// EncryptedData object.

edElement.CipherData.CipherValue = encryptedElement;

////////////////////////////////////////////////////

// Replace the element from the original XmlDocument

// object with the EncryptedData element.

////////////////////////////////////////////////////

EncryptedXml.ReplaceElement(elementToEncrypt, edElement, false);

}

public static void Decrypt(XmlDocument Doc, SymmetricAlgorithm Alg)

{

// Check the arguments.

if (Doc == null)

throw new ArgumentNullException("Doc");

if (Alg == null)

throw new ArgumentNullException("Alg");

// Find the EncryptedData element in the XmlDocument.

XmlElement encryptedElement = Doc.GetElementsByTagName("EncryptedData")[0] as XmlElement;

// If the EncryptedData element was not found, throw an exception.

if (encryptedElement == null)

{

throw new XmlException("The EncryptedData element was not found.");

}

// Create an EncryptedData object and populate it.

EncryptedData edElement = new EncryptedData();

edElement.LoadXml(encryptedElement);

// Create a new EncryptedXml object.

EncryptedXml exml = new EncryptedXml();

// Decrypt the element using the symmetric key.

byte[] rgbOutput = exml.DecryptData(edElement, Alg);

// Replace the encryptedData element with the plaintext XML element.

exml.ReplaceData(encryptedElement, rgbOutput);

}

private void btnEncrypt_Click(object sender, EventArgs e)

{

XmlDocument DOC = new XmlDocument();

string path = Application.StartupPath + @"\Server.xml";

DOC.Load(path);

if (File.Exists(path))

{

MessageBox.Show("XML File Found");

}

using (Aes Key = Aes.Create())

{

Key.KeySize = 256;

Key.GenerateKey();

string keyBase64 = Convert.ToBase64String(Key.Key);

MessageBox.Show(keyBase64);

MyKey = Key;

// Encrypt XML Eelement Name

Encrypt(DOC, "ServerName", Key);

}

private void btnDecrypt_Click(object sender, EventArgs e)

{

XmlDocument DOC = new XmlDocument();

string path = Application.StartupPath + @"\Server.xml";

DOC.Load(path);

if (File.Exists(path))

{

MessageBox.Show("XML File Found");

}

// Decrypt XML Eelement Name

Decrypt(DOC, MyKey);

}

3 Replies

Know the answer? Post it — somebody with the same question will find it here.

Bassam Alqadhi2y ago
Thank you for helping me. Attached is the project file. Can you apply this code to my file for more protection? I want to decryption To read the Connection String Element Value insid xml file On System login screen and keep it encrypted inside the xml file.

https://learn.microsoft.com/en-us/dotnet/standard/security/how-to-use-data-protection

I have attached the project source code for you

Tuhin Paul2y ago

using System;
using System.IO;
using System.Security.Cryptography;
using System.Security.Cryptography.Xml;
using System.Windows.Forms;
using System.Xml;

namespace WindowsFormsApp3
{
    public partial class Form2 : Form
    {
        Aes MyKey = null;

        public Form2()
        {
            InitializeComponent();
        }

        private void btnEncrypt_Click(object sender, EventArgs e)
        {
            string path = Application.StartupPath + @"\Server.xml";

            if (!File.Exists(path))
            {
                MessageBox.Show("XML File not found");
                return;
            }

            XmlDocument doc = new XmlDocument();
            doc.Load(path);

            using (Aes key = Aes.Create())
            {
                key.KeySize = 256;
                key.GenerateKey();
                string keyBase64 = Convert.ToBase64String(key.Key);
                MessageBox.Show(keyBase64);

                MyKey = key;

                // Encrypt XML Element Name
                Encrypt(doc, "ServerName", key);
            }

            // Save the changes back to the file
            doc.Save(path);
        }

        private void btnDecrypt_Click(object sender, EventArgs e)
        {
            if (MyKey == null)
            {
                MessageBox.Show("No key available for decryption.");
                return;
            }

            string path = Application.StartupPath + @"\Server.xml";

            if (!File.Exists(path))
            {
                MessageBox.Show("XML File not found");
                return;
            }

            XmlDocument doc = new XmlDocument();
            doc.Load(path);

            // Decrypt XML Element Name
            Decrypt(doc, MyKey);

            // Save the changes back to the file
            doc.Save(path);
        }

        public static void Encrypt(XmlDocument doc, string elementToEncrypt, SymmetricAlgorithm alg)
        {
            if (doc == null)
                throw new ArgumentNullException("doc");
            if (elementToEncrypt == null)
                throw new ArgumentNullException("elementToEncrypt");
            if (alg == null)
                throw new ArgumentNullException("alg");

            XmlElement element = doc.GetElementsByTagName(elementToEncrypt)[0] as XmlElement;
            if (element == null)
                throw new XmlException("The specified element was not found");

            EncryptedXml eXml = new EncryptedXml();
            byte[] encryptedElement = eXml.EncryptData(element, alg, false);

            EncryptedData edElement = new EncryptedData();
            edElement.Type = EncryptedXml.XmlEncElementUrl;

            string encryptionMethod = null;
            if (alg is Aes)
            {
                switch (alg.KeySize)
                {
                    case 128:
                        encryptionMethod = EncryptedXml.XmlEncAES128Url;
                        break;
                    case 192:
                        encryptionMethod = EncryptedXml.XmlEncAES192Url;
                        break;
                    case 256:
                        encryptionMethod = EncryptedXml.XmlEncAES256Url;
                        break;
                }
            }
            else
            {
                throw new CryptographicException("The specified algorithm is not supported for XML Encryption.");
            }
            edElement.EncryptionMethod = new EncryptionMethod(encryptionMethod);
            edElement.CipherData.CipherValue = encryptedElement;

            EncryptedXml.ReplaceElement(element, edElement, false);
        }

        public static void Decrypt(XmlDocument doc, SymmetricAlgorithm alg)
        {
            if (doc == null)
                throw new ArgumentNullException("doc");
            if (alg == null)
                throw new ArgumentNullException("alg");

            XmlElement encryptedElement = doc.GetElementsByTagName("EncryptedData")[0] as XmlElement;
            if (encryptedElement == null)
                throw new XmlException("The EncryptedData element was not found.");

            EncryptedData edElement = new EncryptedData();
            edElement.LoadXml(encryptedElement);

            EncryptedXml exml = new EncryptedXml();
            byte[] rgbOutput = exml.DecryptData(edElement, alg);

            exml.ReplaceData(encryptedElement, rgbOutput);
        }
    }
}

Tuhin Paul2y ago

Avoid storing the key in plain text within the code as it's easily accessible. Use a more secure method, such as:

Windows Data Protection API (DPAPI) for user-specific keys.
A hardware security module (HSM) for highly sensitive data.
External configuration files or environment variables (with appropriate access controls).
Your code encrypts only the "ServerName" element. Encrypt additional elements containing sensitive data as needed.
Remove MessageBox.Show(keyBase64); to prevent key exposure.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Xml;
using System.Security.Cryptography;
using System.Security.Cryptography.Xml;
using System.IO;

namespace WindowsFormsApp3
{
    public partial class Form2 : Form
    {
        Aes MyKey = null; // Static key for demonstration (not recommended for production)

        public Form2()
        {
            InitializeComponent();

            // Load or generate the encryption key securely
            // (Replace this with your secure key management logic)
            MyKey = Aes.Create();
            MyKey.KeySize = 256;
            MyKey.GenerateKey(); // Generate a new key for demonstration
        }

        // ... (Rest of the code remains the same)
    }
}
