TreeView CheckBox value should be based on XML Node's Value

Question

Hello,
I have a TreeView Control with checkbox in my winform application .TreeView Nodes are Populated from Sql DataBase.I Have one xml file which contains information about checked nodes of treeview.Now i want to check all treenode based on xml node's value.Please give me any sample code.Thanks in advance.

Muralidharan Deenathayalan · Answer

In the else part, instead of assigning the entire outer xml , read the name and assign it. Remove the below one. treeNode.Text = xmlNode.OuterXml. Trim (); else //No children, so add the outer xml (trimming off whitespace) treeNode.Text = xmlNode.Name; Hope this helps you !

Muralidharan Deenathayalan · Answer

Let me try now,

Muralidharan Deenathayalan · Answer

//Construct the tree here void Button1_Click ( object sender, EventArgs e) { TreeNode rootNode = treeView1.Nodes. Add ( "Root" ); TreeNode colourNode = rootNode.Nodes. Add ( "Colour" ); colourNode.Nodes. Add ( "Red" ); colourNode.Nodes. Add ( "Blue" ); colourNode.Nodes. Add ( "Green" ); TreeNode countryNode = rootNode.Nodes. Add ( "Country" ); countryNode.Nodes. Add ( "India" ); countryNode.Nodes. Add ( "UK" ); countryNode.Nodes. Add ( "USA" ); TreeNode fruitsNode = rootNode.Nodes. Add ( "Fruits" ); fruitsNode.Nodes. Add ( "Apple" ); fruitsNode.Nodes. Add ( "Mango" ); fruitsNode.Nodes. Add ( "Banana" ); treeView1. ExpandAll (); } //Read the value from the xml file and find out in the tree, update the checkboxes. void Button2_Click ( object sender, System.EventArgs e) { //Read the xml value here. string xmlValue = "Country" ; TreeNode root = treeView1.Nodes[ 0 ]; if (root.Nodes.Count > 0 ) { foreach (TreeNode element in root.Nodes) { if (element.Text == xmlValue) { treeView1.SelectedNode = element; treeView1.SelectedNode.Checked = true ; if (element.Nodes.Count > 0 ) { foreach (TreeNode child in element.Nodes) { treeView1.SelectedNode = child; treeView1.SelectedNode.Checked = true ; } } break ; } } } } Hope this helps you.

Muralidharan Deenathayalan · Answer

Please correct me, if I understood incorrectly. Do you want check the parent and check boxes based on the value which is present in the xml file?

Surendrasinh Rathod · Answer

Thanks Murli, Its very important for me.Since last 2 hours i was checking whole code but not do attention on else part.Anyway very very thanks to you for give the answer on the sport.

Surendrasinh Rathod · Answer

Please check my last reply for this thread.

Surendrasinh Rathod · Answer

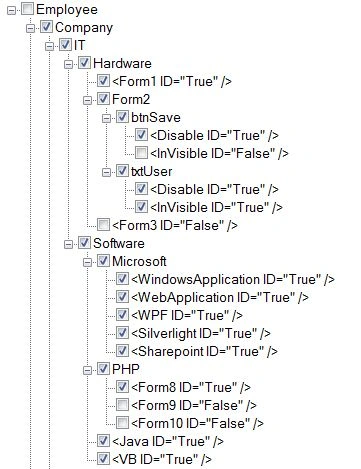

Hello Murli, All XML Nodes are successfully Add in TreeView but every node's child node are displaying with XML Attributes.I have attach a snapshot of treeview .What i have done mistake.can u reply please.Thanks in advance. My xml file is like following - - - - - - - And my c# code to dispaly this xml file to TreeView as per following private void DefaultNodesFromXML() { //string path = "E:\Surendra\WareHouseManagement\WareHouse.Admin.UI\" + cmbEmpName.Text + "_" + cmbEmpName.SelectedValue + ".xml"; string path = "E:\Surendra\WareHouseManagement\WareHouse.Admin.UI\Surendra_2.xml"; XmlDocument xDoc = new XmlDocument(); xDoc.Load(path); tvMenu.Nodes.Clear(); //XmlNode root = xDoc.FirstChild; //if (root.HasChildNodes) //{ tvMenu.Nodes.Add(new TreeNode(xDoc.DocumentElement.Name)); TreeNode tNode = new TreeNode(); tNode = (TreeNode)tvMenu.Nodes[0]; AddTreeNode(xDoc.DocumentElement, tNode); } private void AddTreeNode(XmlNode xmlNode, TreeNode treeNode) { XmlNode xNode; TreeNode tNode; XmlNodeList xNodeList; if (xmlNode.HasChildNodes) //The current node has children { xNodeList = xmlNode.ChildNodes; for (int x = 0; x //Loop through the child nodes { xNode = xmlNode.ChildNodes[x]; treeNode.Nodes.Add(new TreeNode(xNode.Name)); tNode = treeNode.Nodes[x]; if (xNode.Attributes["ID"].Value == "True") { tNode.Checked = true; } //xNode.Attributes.RemoveAll(); AddTreeNode(xNode, tNode); } } else //No children, so add the outer xml (trimming off whitespace) treeNode.Text = xmlNode.OuterXml.Trim(); } All XML Nodes are successfully Add in TreeView but every node's child node are displaying with XML Attributes.I have attach a snapshot of treeview .What i have done mistake.can u reply please.Thanks in advance.

Surendrasinh Rathod · Answer

Thanks Murlidharan.Its useful for me.

Surendrasinh Rathod · Answer

Yes, exactly.PLease give me any suggestion or sample code.
