In this article I am going to discuss how to create a WCF Service and use in asp.net.


In this article I am going to discuss how to create a WCF Service and use in asp.net.

How to Create a WCF service

Step 1

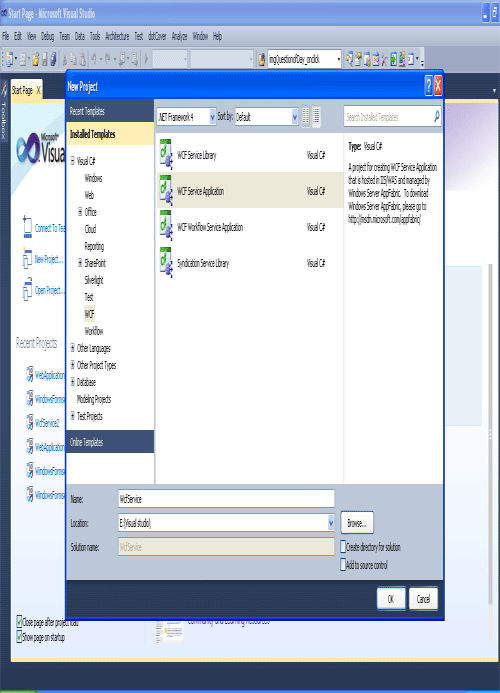

To create new WCF Service Open new web site and select WCF service like as below.


Figure1

Step2

Now click on the Ok Button by default you will get the following page.


Figure2

Iservice1.cs

Change the type for the value parameter to String.

Such as:

[OperationContract]
string GetData(string value);

Service1.svc.cs

Change the type for the value parameter to String.

Such as:

public string GetData(string value)
{
return string.Format("You entered: {0}", value);
}

Testing the Service

Step3

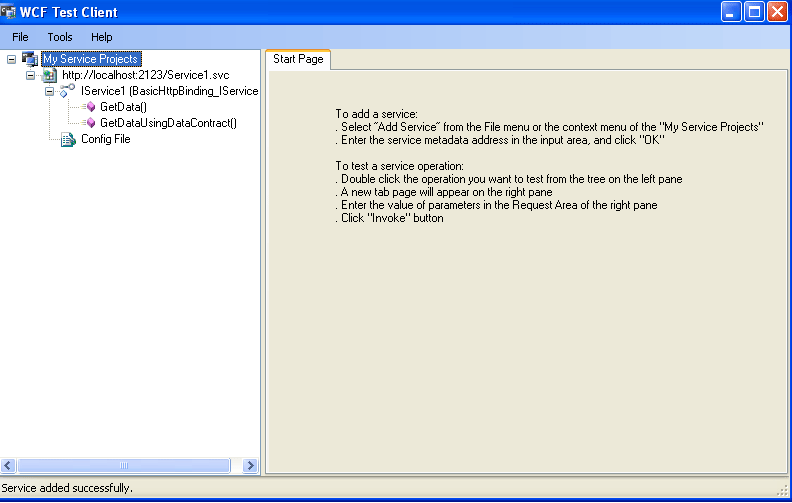

Press F5 to run the service. A WCF Test Client form will be displayed and it will load the service.


Figure3

Step4

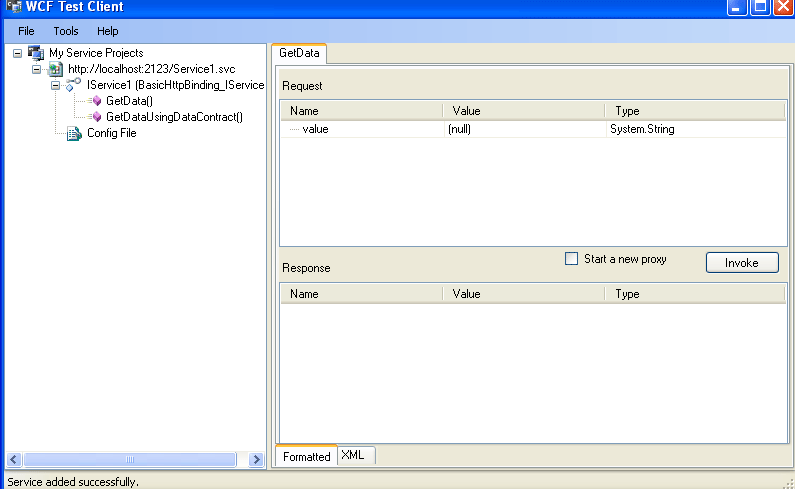

Double-click the GetData() method under IService1. The GetData tab will be displayed.


Figure4

Step5

In the Request box, select the Value field and type rohatash.


Figure5

Accessing the Service

Step-6

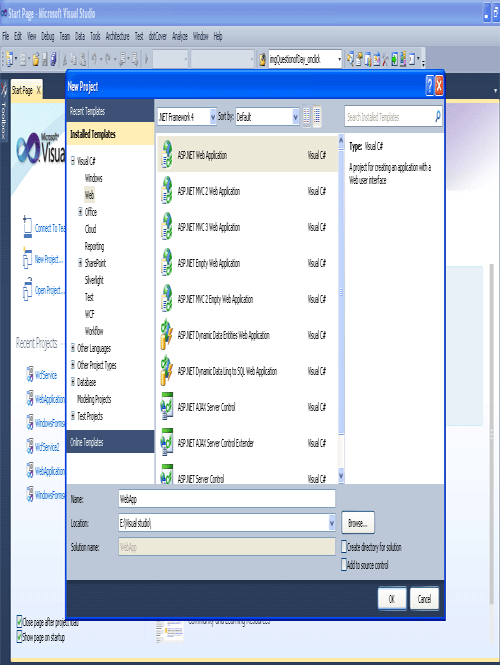

In the New Project dialog box, expand the Visual C# node and select web and then select  Application. Click OK to open the project.


Figure6

click On the ok Button.

Step7

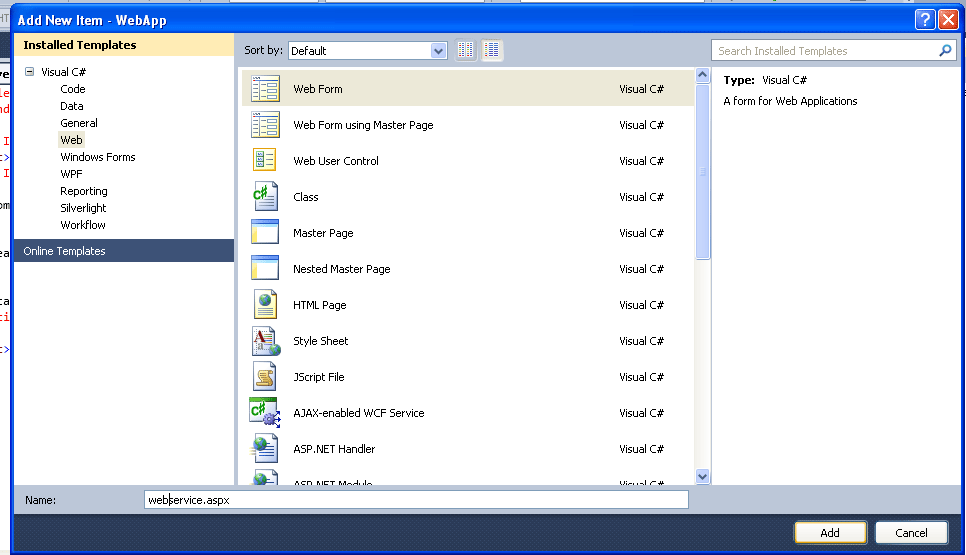

Add a new form in web application and named it.


Figure7

Step8

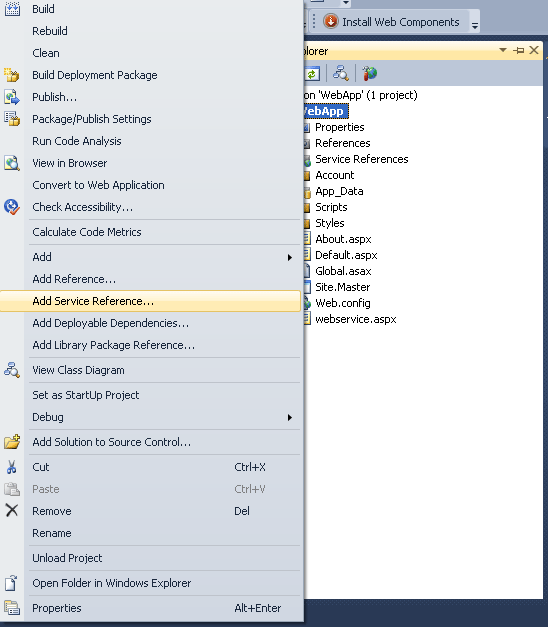

Right-click WindowsApplication1 and click Add Service Reference.


Figure8

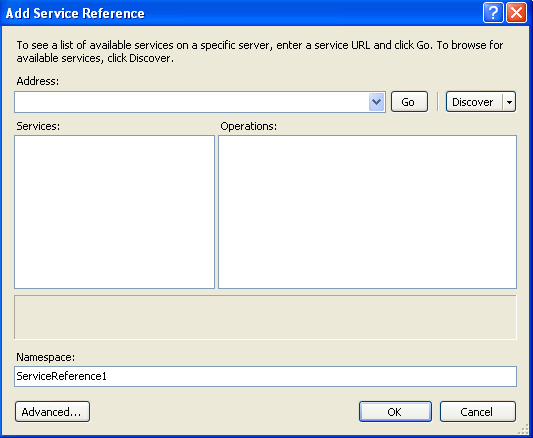

Add service reference window will be open.


Figure9

Now copy address from WCF test client window.


Figure10

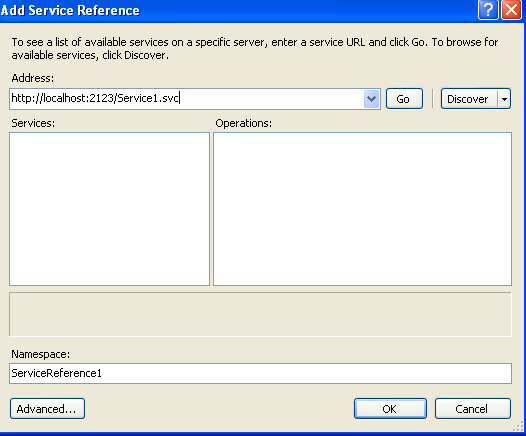

And paste this address in Add service reference window.


Figure11

Now click on the OK button.

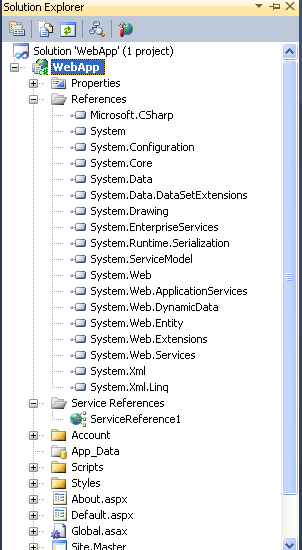

Now reference have been added in solution explorer.


Figure12

To build a client application

Step9

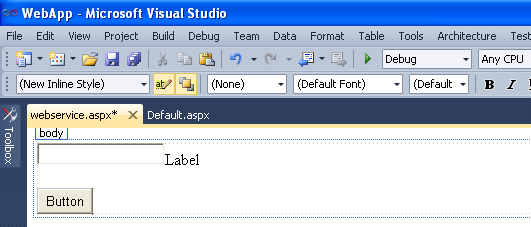

In Solution Explorer, double-click webservices.aspx to open the web Form in designing window. Add one TextBox, Label and Button control on the form.

The Form looks like below.


Figure13

Step10

Double-click the Button, and add the following code in the Click event handler.

protected void Button1_Click(object sender, EventArgs e)

        {

            ServiceReference1.Service1Client client = new

            ServiceReference1.Service1Client();

            string returnString;

            returnString = client.GetData(TextBox1.Text);

            Label1.Text = returnString;

        }



Now run the application.

Press F5 to run the project. Enter some text and click the button. The label will display "You entered:" and the text that you entered.
