Azure Cloud Service - Scale Up Instance Size

This article is a part of a series of articles related to one of the Azure Compute options “Cloud Services”.

In our previous articles, we learned how to create Azure Cloud Service and how to deploy the same to the Cloud. In this article, we will learn how to increase the Instance Size of Virtual Machines created in the Cloud Service.

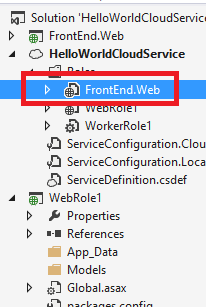

Open the Cloud Service Project that you created in Azure HelloWorld Cloud Service.

Project

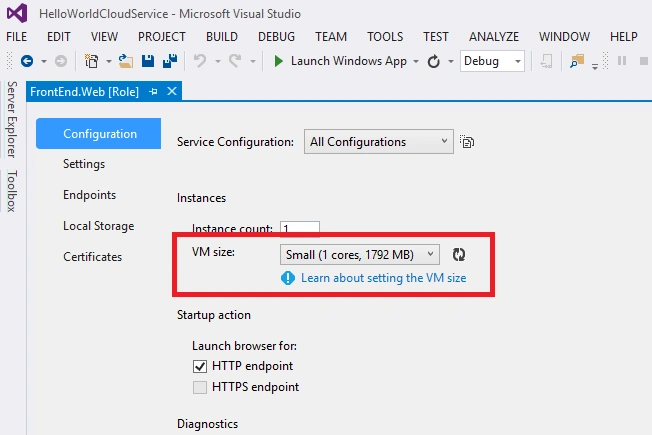

As shown in the above screen, select the Web Role located in the roles folder and double click the same to open the following Role Properties window.

Properties

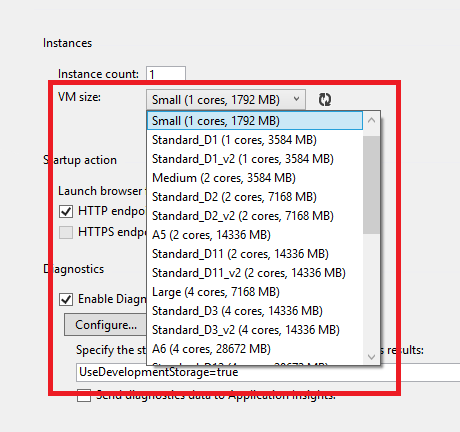

In the Configuration tab of the Web Role Properties, under the Instances section, we have VM sizes with the following options in VM Size dropdown.

Configuration

For more information about the available options, please have a look here. By default, for the Web Role, an instance with the following is created.

  • CPU Cores – 1 Core (Small Instance)
  • RAM – 1792 (1.75 GB)

If this default configuration is not enough for the project requirement, we can increase the instance size by configuring the VM Size dropdown shown above. For this example, let’s change the size of the VM to Medium with the following configuration.

  • CPU Cores – 2 Cores (Medium Instance)
  • RAM – 3584 (3.5 GB)

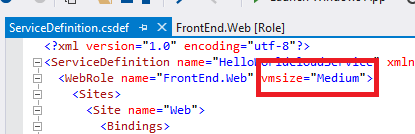

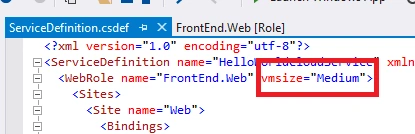

As soon as you change the size in VM Size dropdown in the Configuration tab, the ServiceDefinition.scdef file gets all the changes automatically from Small to Medium. For more details about ServiceDefinition file, please refer Azure Cloud Services - Project File Details.

code

Let’s Create Package using Visual Studio and Deploy Cloud Service using Azure Management Portal.

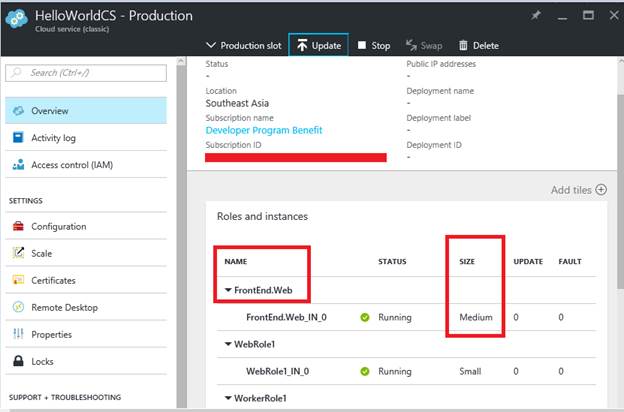

Navigate to the Cloud Service and in the “Roles and Instances” section of the Essentials tab, you notice the size of FrontEnd.Web Web role, while the size of the Virtual Machine is Medium.

update

Note: It looks like (as of this writing) there is no way you can increase (Scale up) the VM Size from the Azure Management portal. However, you can scale-out from Azure Management Portal which we will discuss in the next article.

In this article, we have learned how to increase the size of the VM of a Cloud Service. Hope you enjoyed reading the article. Your feedback is appreciated.
